MERCEDES-BENZ

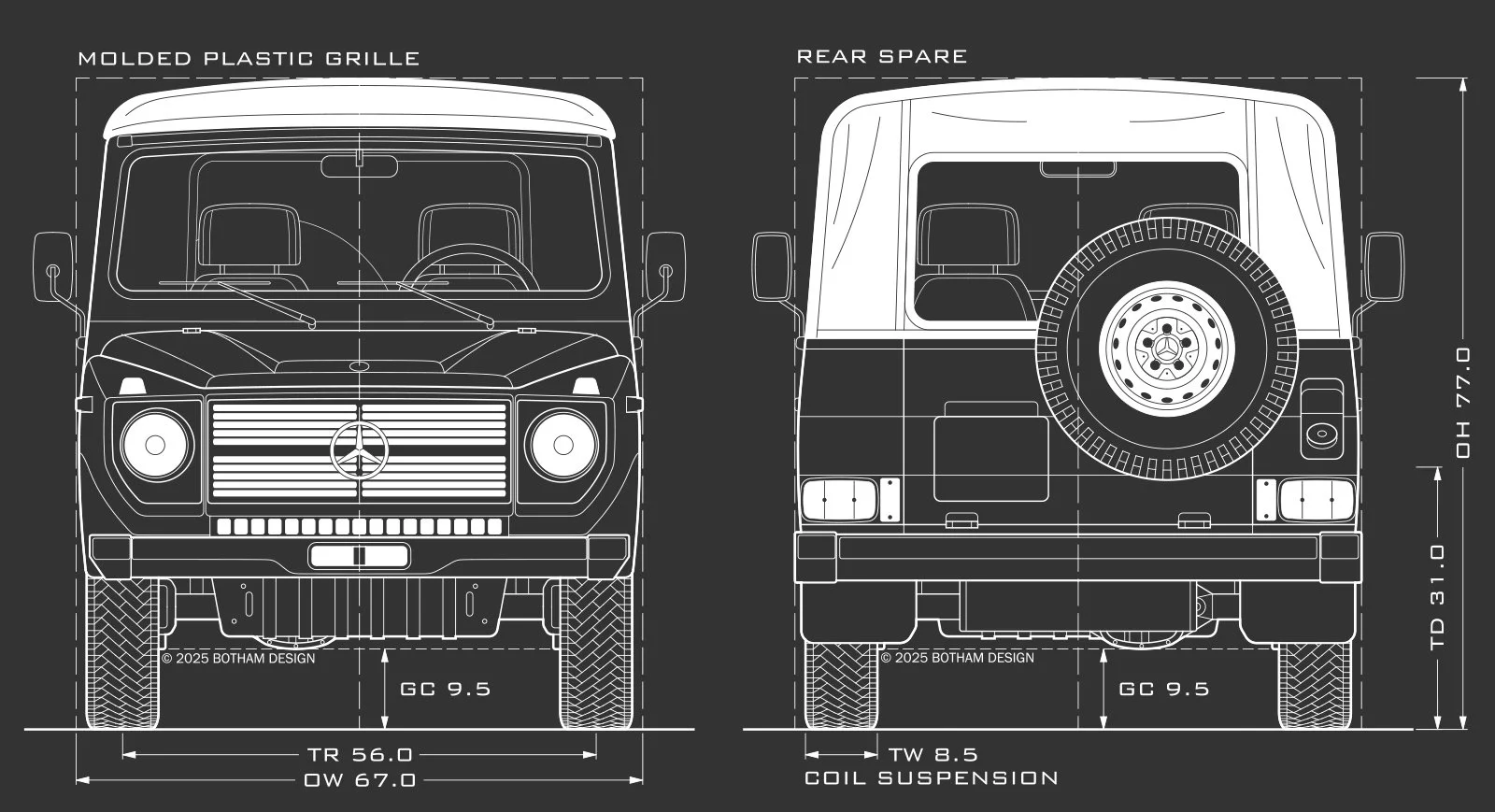

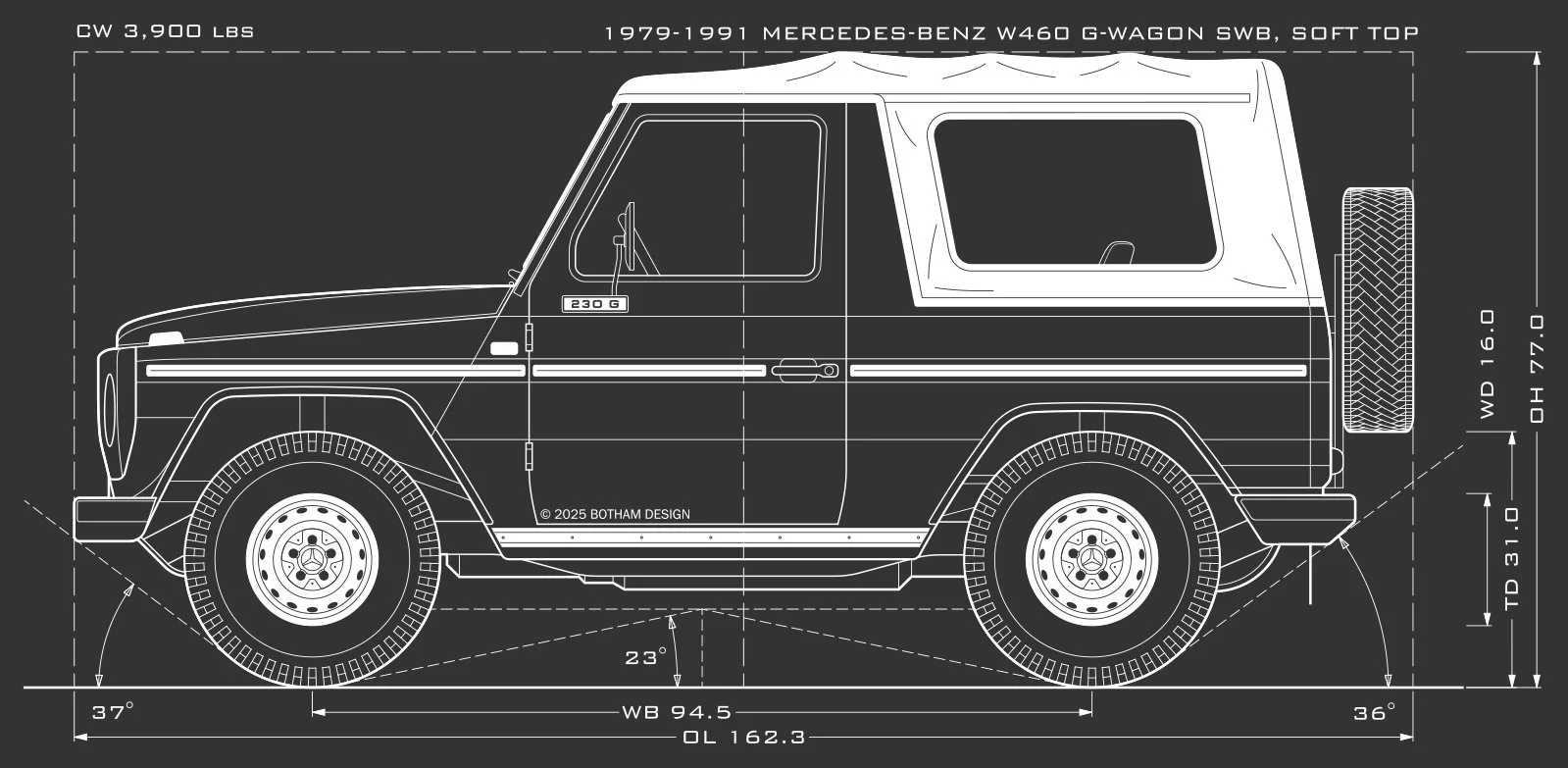

W460 G-WAGON SOFT TOP 1979-1991

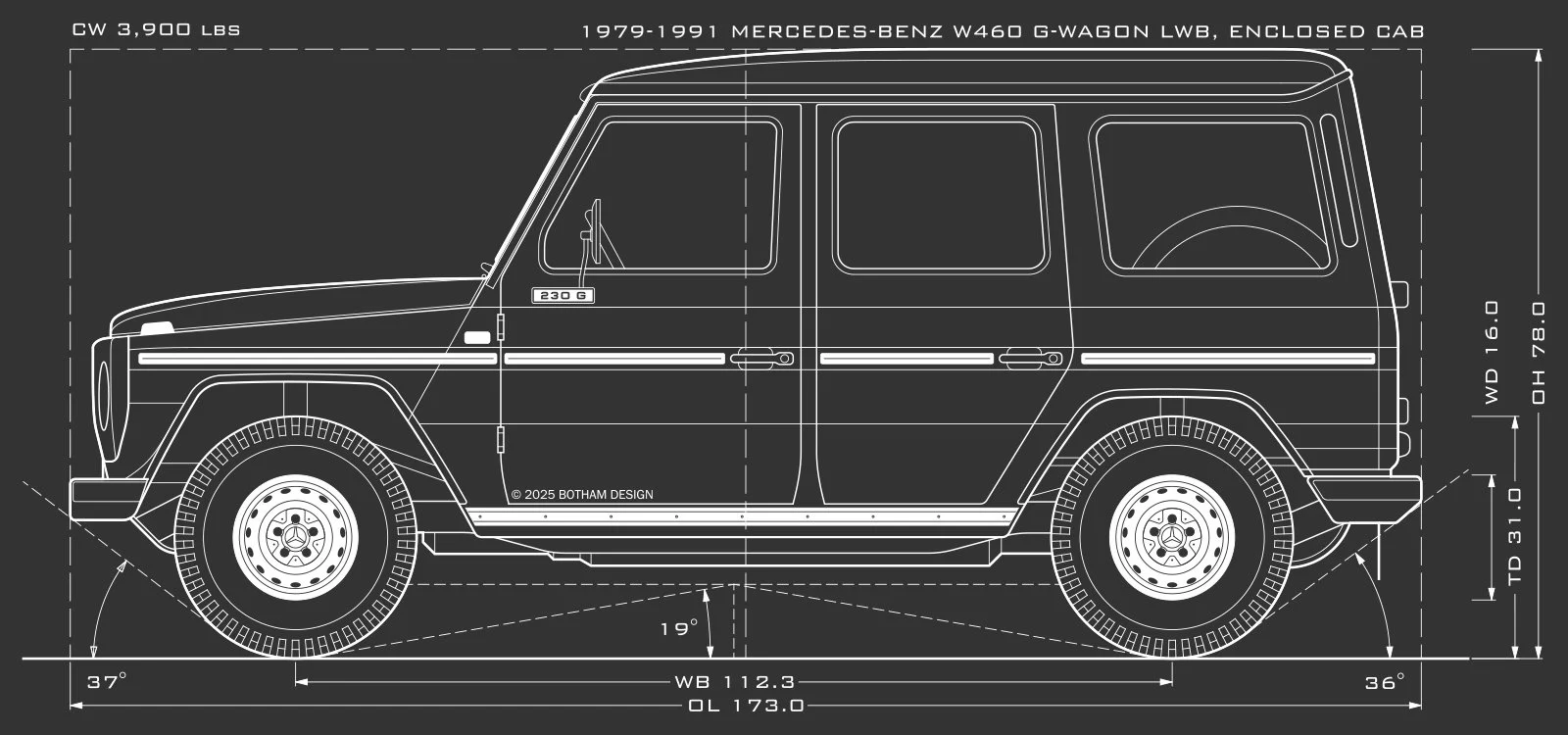

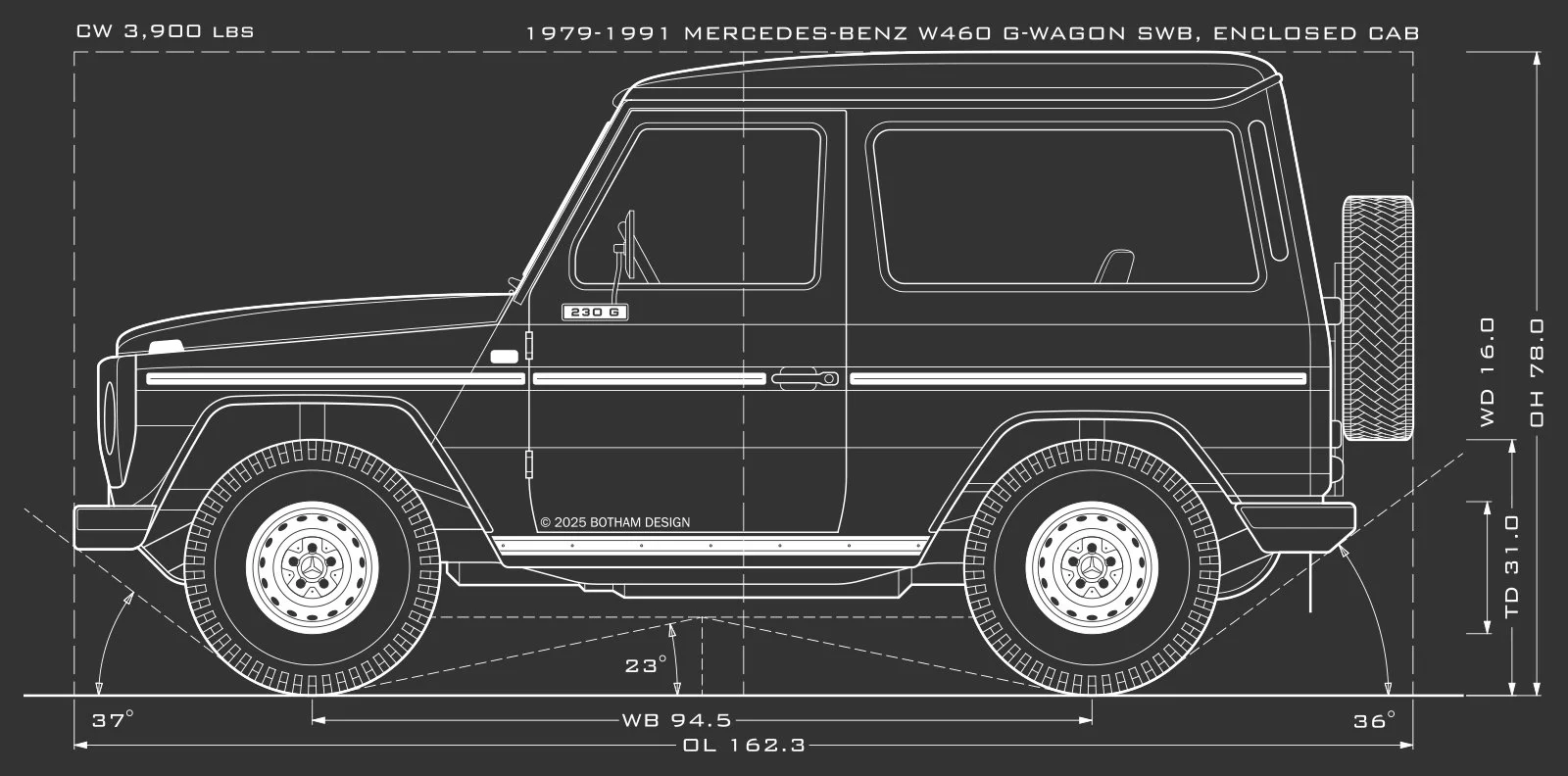

W460 G-WAGON ENCLOSED CAB 1979-1991
ASSEMBLY : Graz, Austria
UNITS PRODUCED : 52,000
PREDECESSOR : None
SUCCESSOR : W461 G-Wagon
The G-Wagon was originally developed as a military vehicle, and first became a civilian vehicle in 1979. It began as a utilitarian 4x4 vehicle, and the first-gen vehicles were available in 3 different body types: an open-body with a removable soft-top, a station wagon, and a closed wagon. The first-gen G-Wagon was not initially imported to the USA, because it's simple, utilitarian design contrasted with Mercedes-Benz's reputation for luxury vehicles in the United States.
SPECS
W460 G-WAGON SPECS
MAIN SPECS
OVERALL LENGTH (OL): 162.3
OVERALL WIDTH (OW): 67.0
OVERALL HEIGHT (OH): 77.0
WHEELBASE (WB): 94.5
TRACK WIDTH (TR): 56.0
CURB WEIGHT (CW): 3,900 lbs
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.5
APPROACH ANGLE (AA): 37°
BREAKOVER ANGLE (BA): 23°
DEPARTURE ANGLE (DA): 36°
SUSPENSION TYPE (SU): Coil Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
