CHEVY K5 BLAZER SECOND-GEN
K5 BLAZER 1973-1980
ASSEMBLY : Flint, MI, USA
UNITS PRODUCED : 535,000
PREDECESSOR : Chevy K5 Blazer First-Gen
SUCCESSOR : Chevy K5 Blazer Third-Gen
The second-generation Chevy K5 Blazer was known as the 'square-body' generation due to its body design and styling. It continued the full-size SUV status of the first-gen K5 models, which were basically half-cab pickup trucks with removable rear tops. Their styling was a variant of the C/K truck line, with a shortened wheelbase. The second-gen Blazer sold well, with more than half a million units produced during its production years.
SPECS

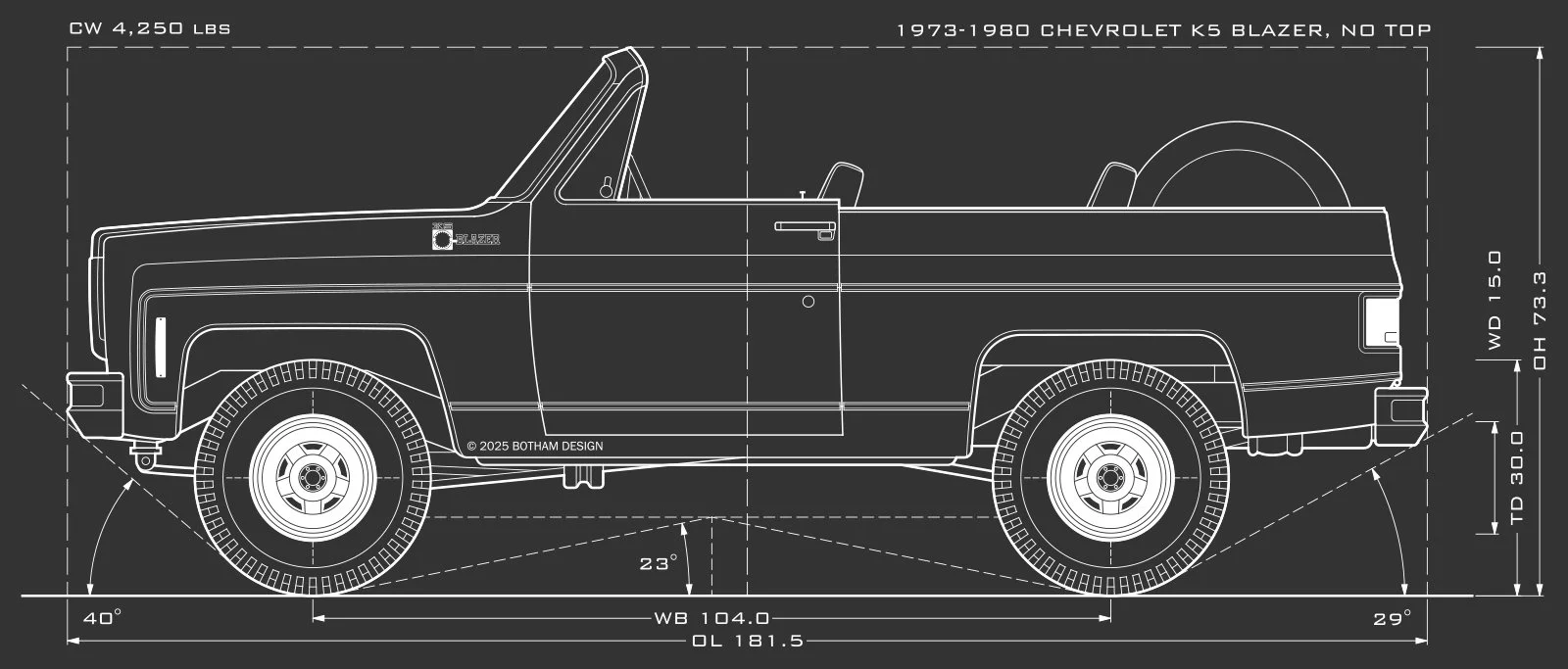

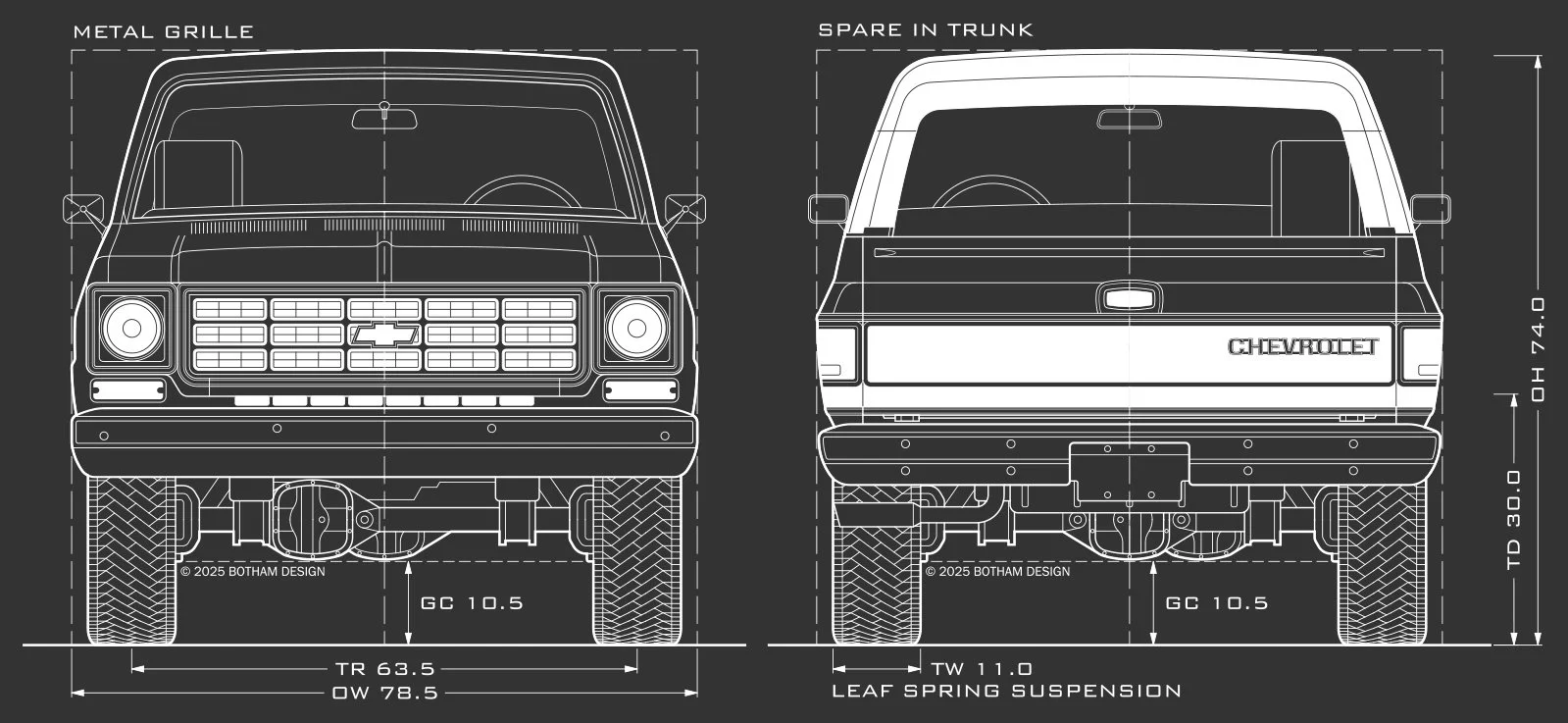

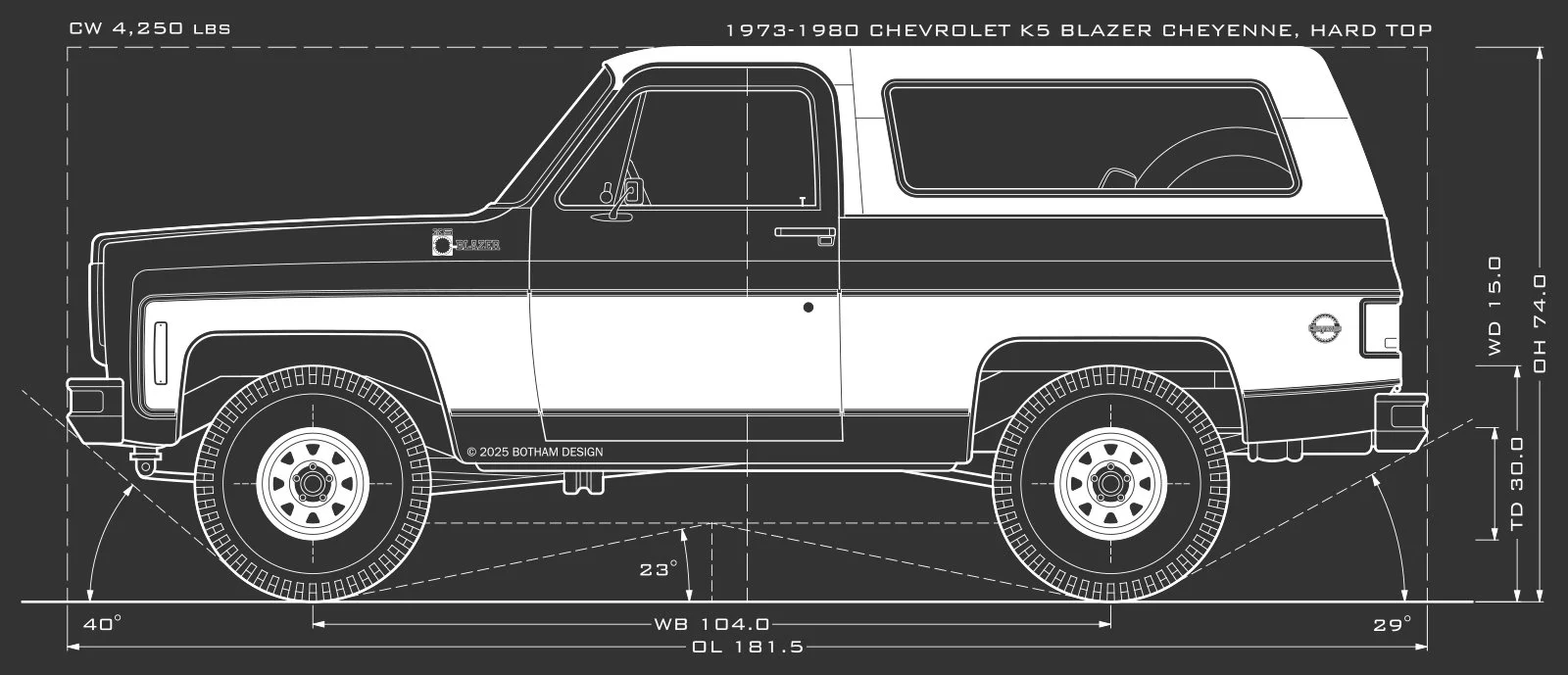

CHEVY K5 BLAZER SECOND-GEN SPECS
MAIN SPECS
OVERALL LENGTH (OL): 181.5
OVERALL WIDTH (OW): 78.5
OVERALL HEIGHT (OH): 74.0
WHEELBASE (WB): 104.0
TRACK WIDTH (TR): 63.5
CURB WEIGHT (CW): 4,250 lbs
SPARE LOCATION: Spare in Trunk
CHASSIS SPECS
GROUND CLEARANCE (GC): 10.5
APPROACH ANGLE (AA): 40°
BREAKOVER ANGLE (BA): 29°
DEPARTURE ANGLE (DA): 23°
SUSPENSION TYPE (SU): Leaf-Spring Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
