CHEVY K5 BLAZER FIRST-GEN
K5 BLAZER 1969-1972
ASSEMBLY : Flint, MI, USA
UNITS PRODUCED : 78,000
PREDECESSOR : None
SUCCESSOR : Chevy K5 Blazer Second-Gen
The first-generation K5 Blazer was Chevy's first recreational off-road vehicle, built to compete with the Ford Bronco and the Jeep CJ-5. Chevy designed the K5 to have better on-road handling than its competitors as a way to differentiate it. The K5's design was based on the half-ton K10 pickup trucks, with a shorter wheelbase. It was originally offered with a removable hard top or a convertible soft top, and the passenger seats were optional.
SPECS

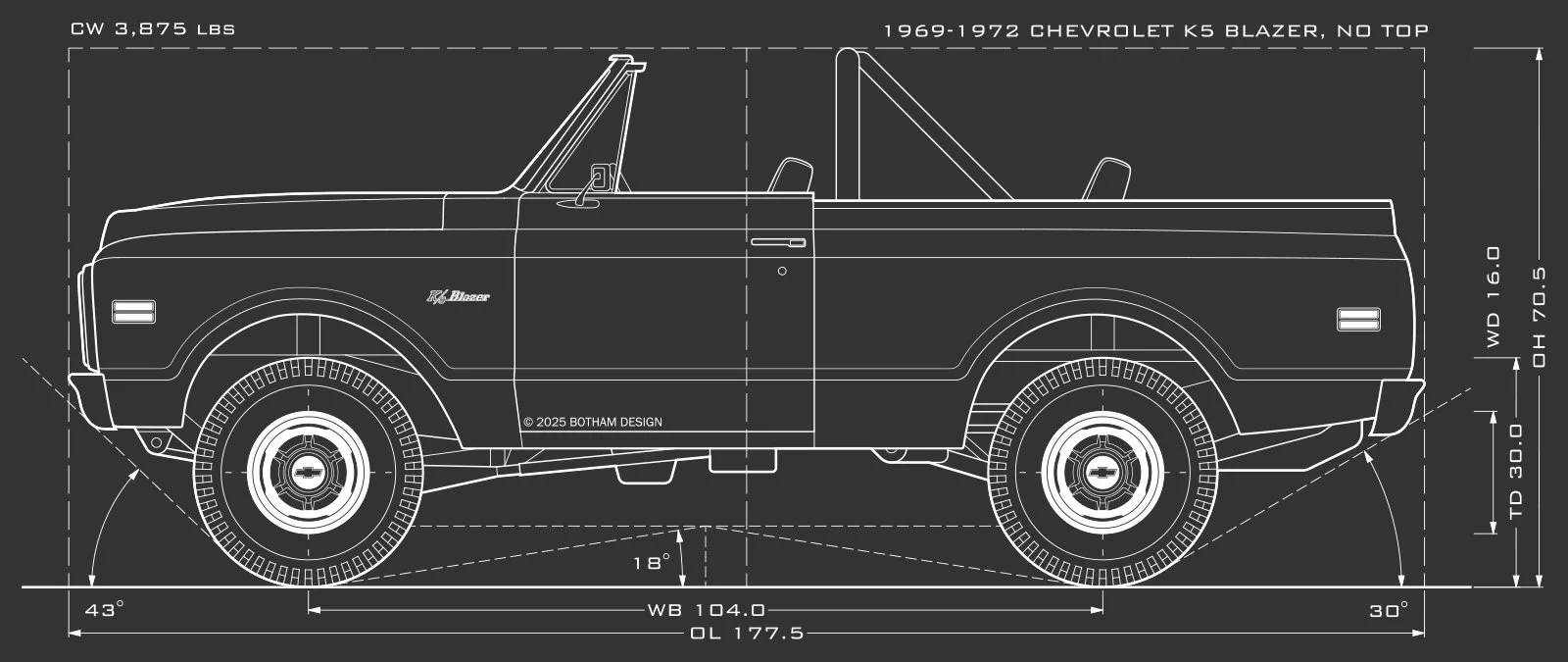

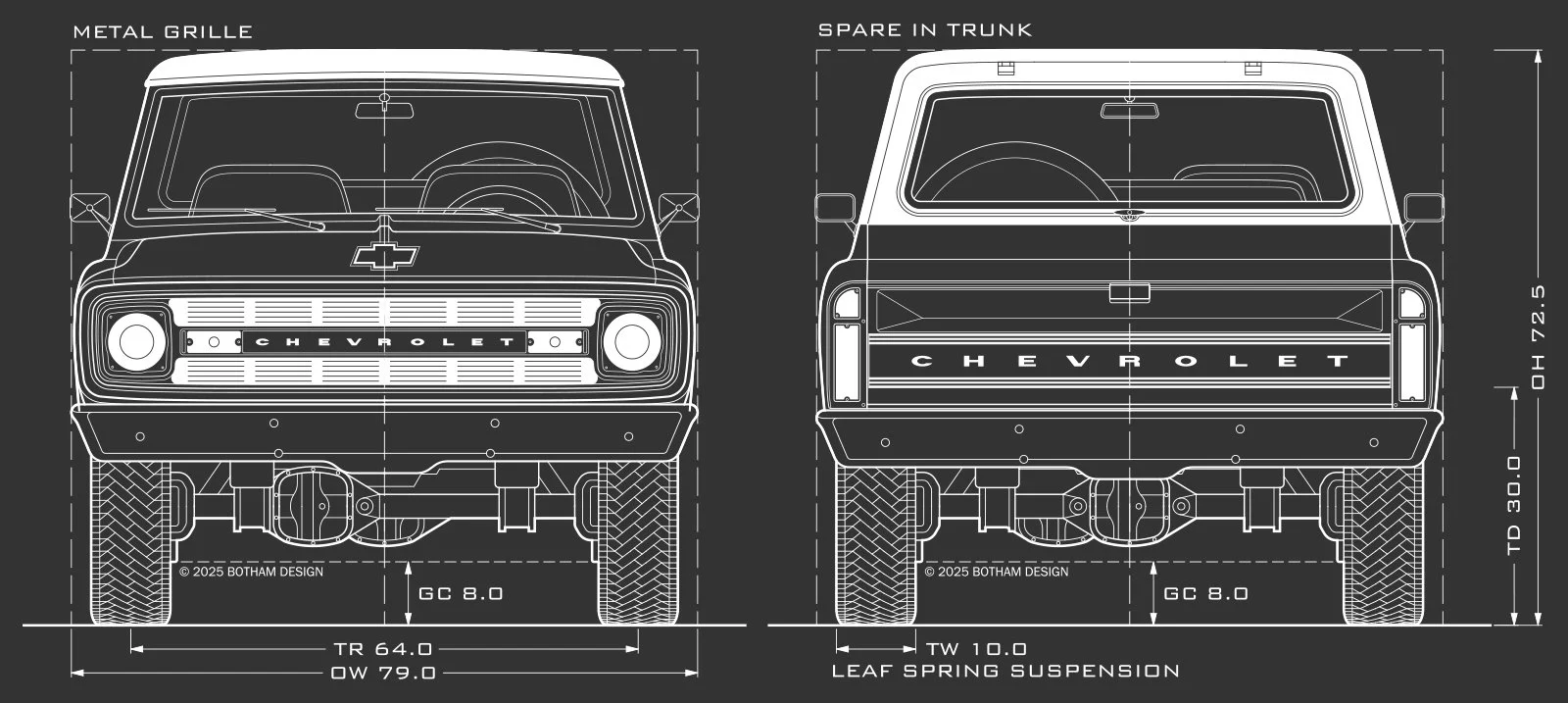

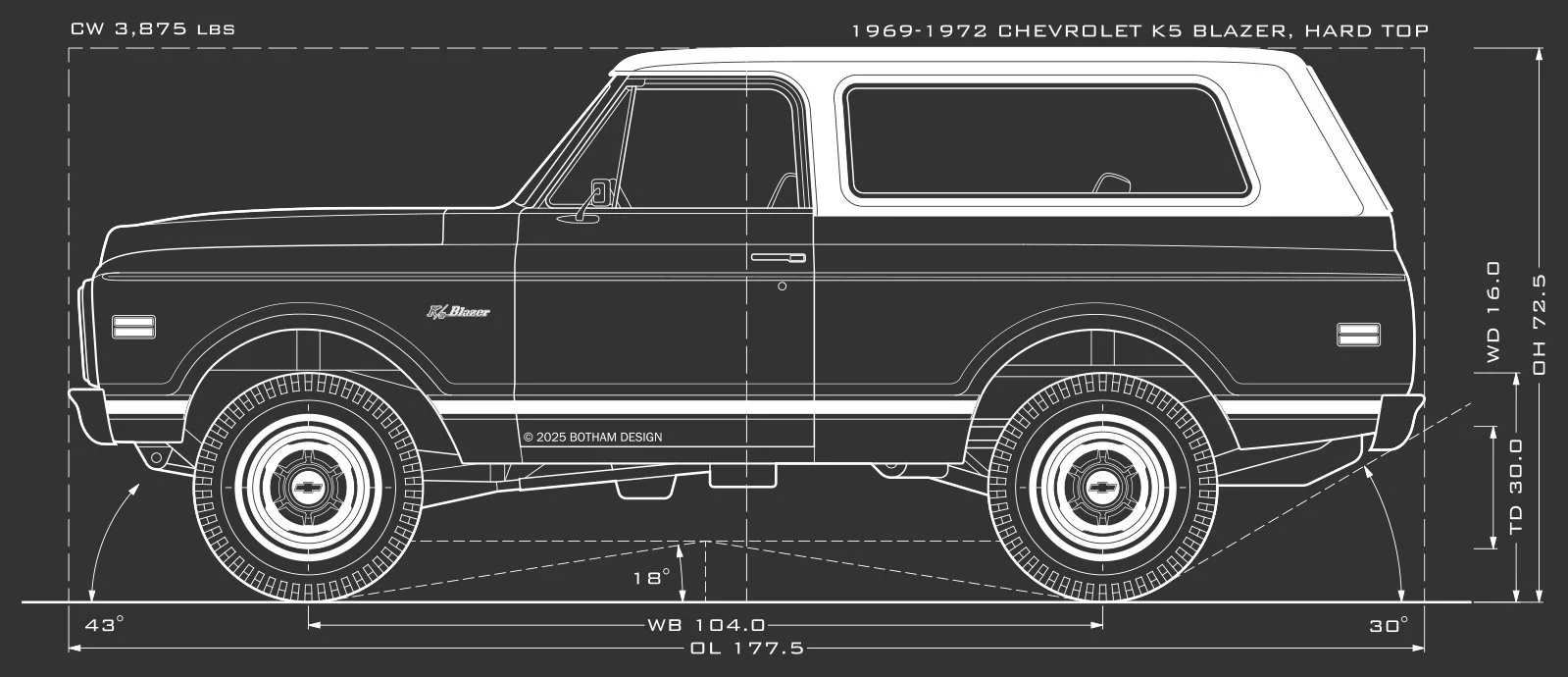

CHEVY K5 BLAZER FIRST-GEN SPECS
MAIN SPECS
OVERALL LENGTH (OL): 177.5
OVERALL WIDTH (OW): 79.0
OVERALL HEIGHT (OH): 72.5
WHEELBASE (WB): 104.0
TRACK WIDTH (TR): 64.0
CURB WEIGHT (CW): 3,875 lbs
SPARE LOCATION: Spare in Trunk
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.0
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 30°
SUSPENSION TYPE (SU): Leaf-Spring Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
