FORD BRONCO THIRD-GEN
BRONCO 1980-1981
BRONCO 1982-1986
ASSEMBLY : Wayne, MI, USA
UNITS PRODUCED : 322,250
PREDECESSOR : Ford Bronco Second-Gen
SUCCESSOR : Ford Bronco Fourth-Gen
The third-generation Ford Bronco was shorter and lighter than the second generation models, and like its predecessor its body design was based on the F-Series pickup trucks. It came standard with an inline-six engine, and featured a removable top and two rows of seats. Sales remained steady throughout its six years of production.
SPECS

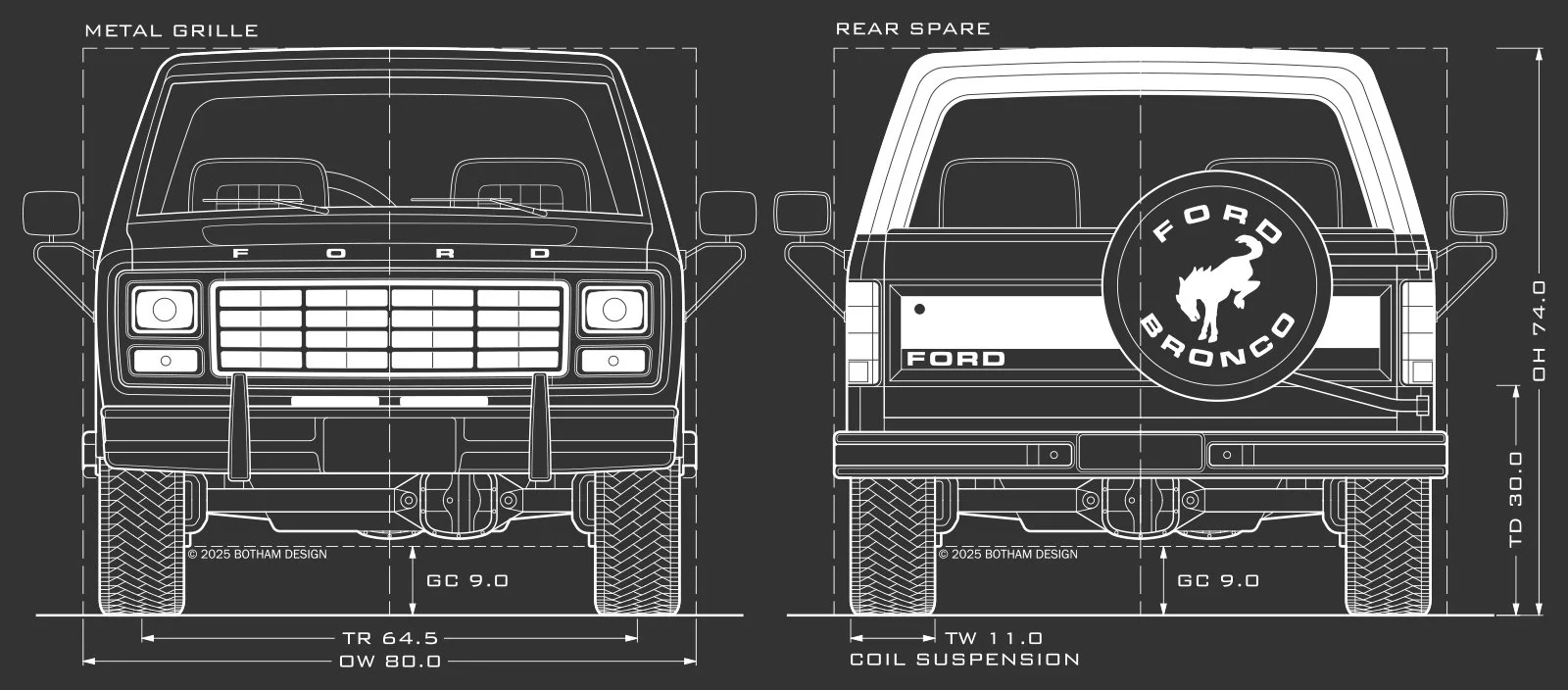

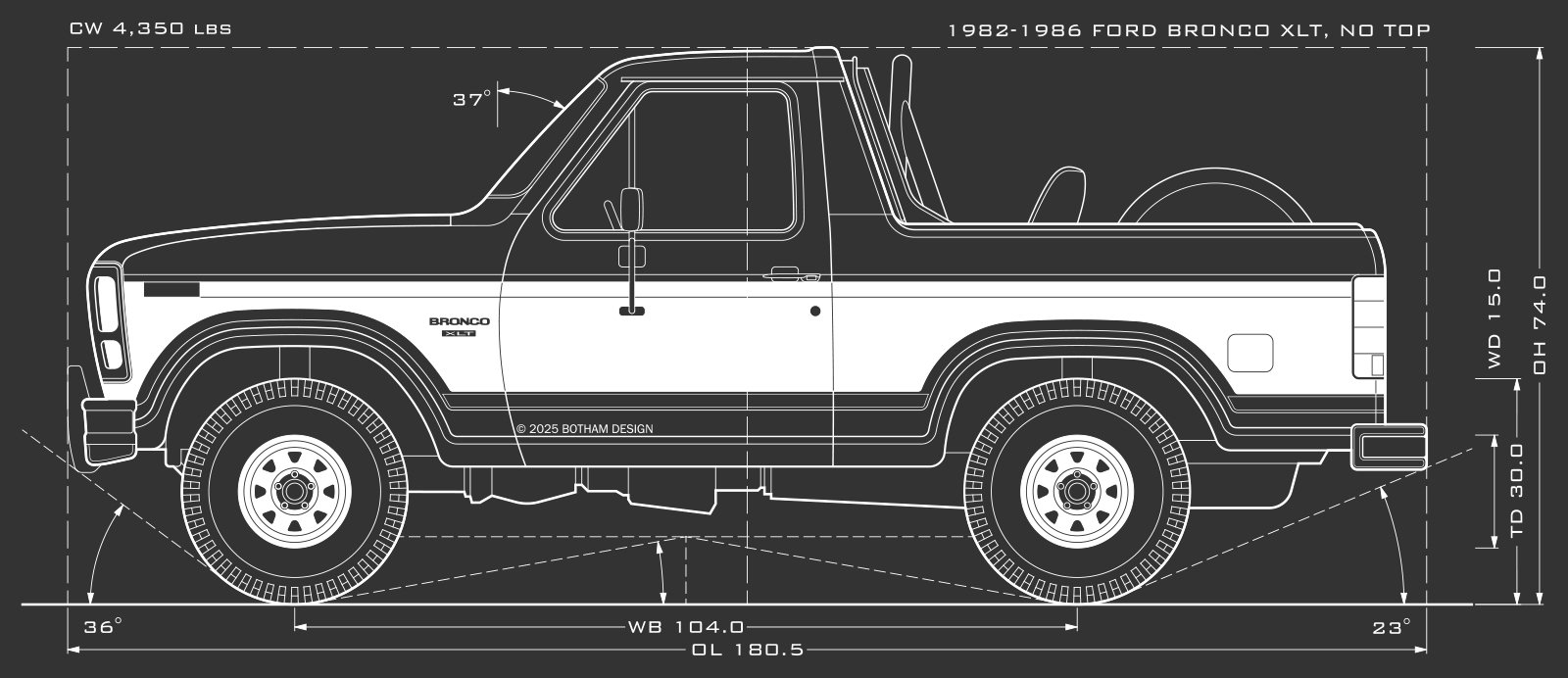

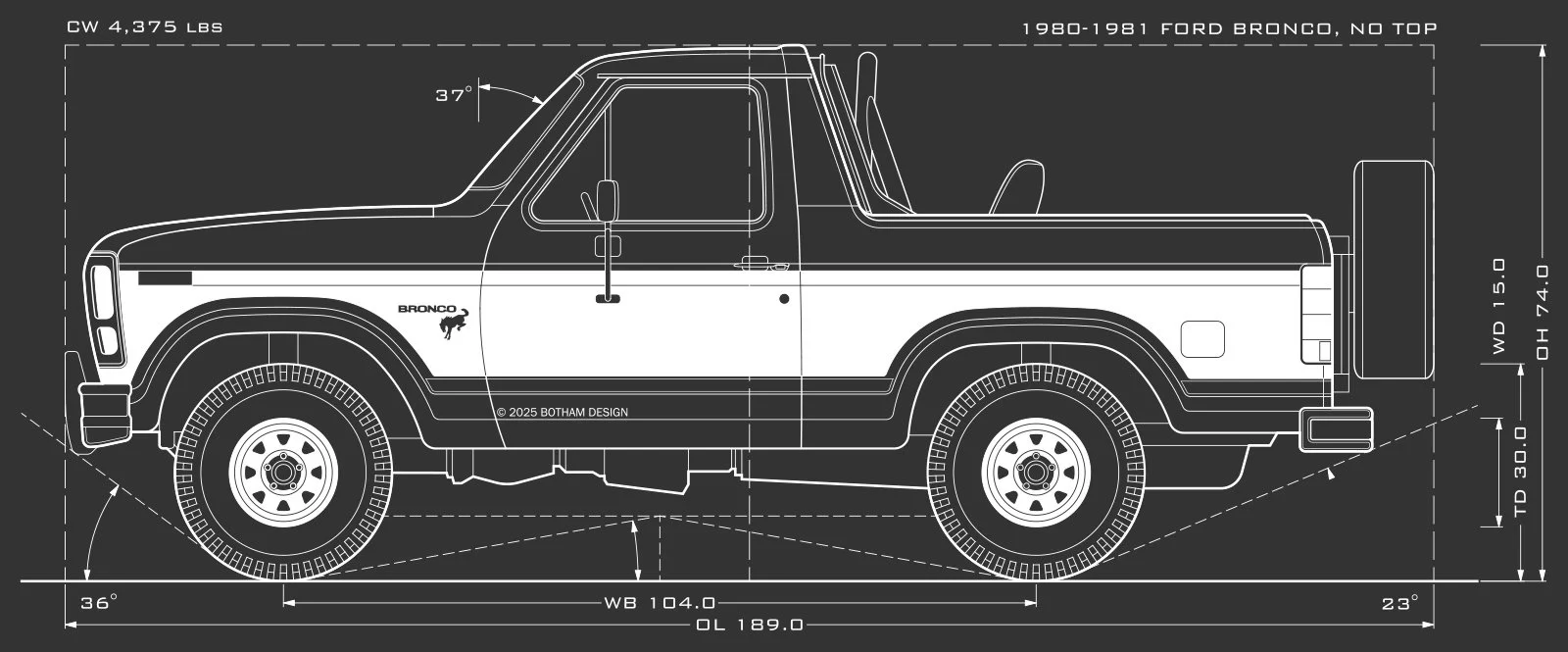

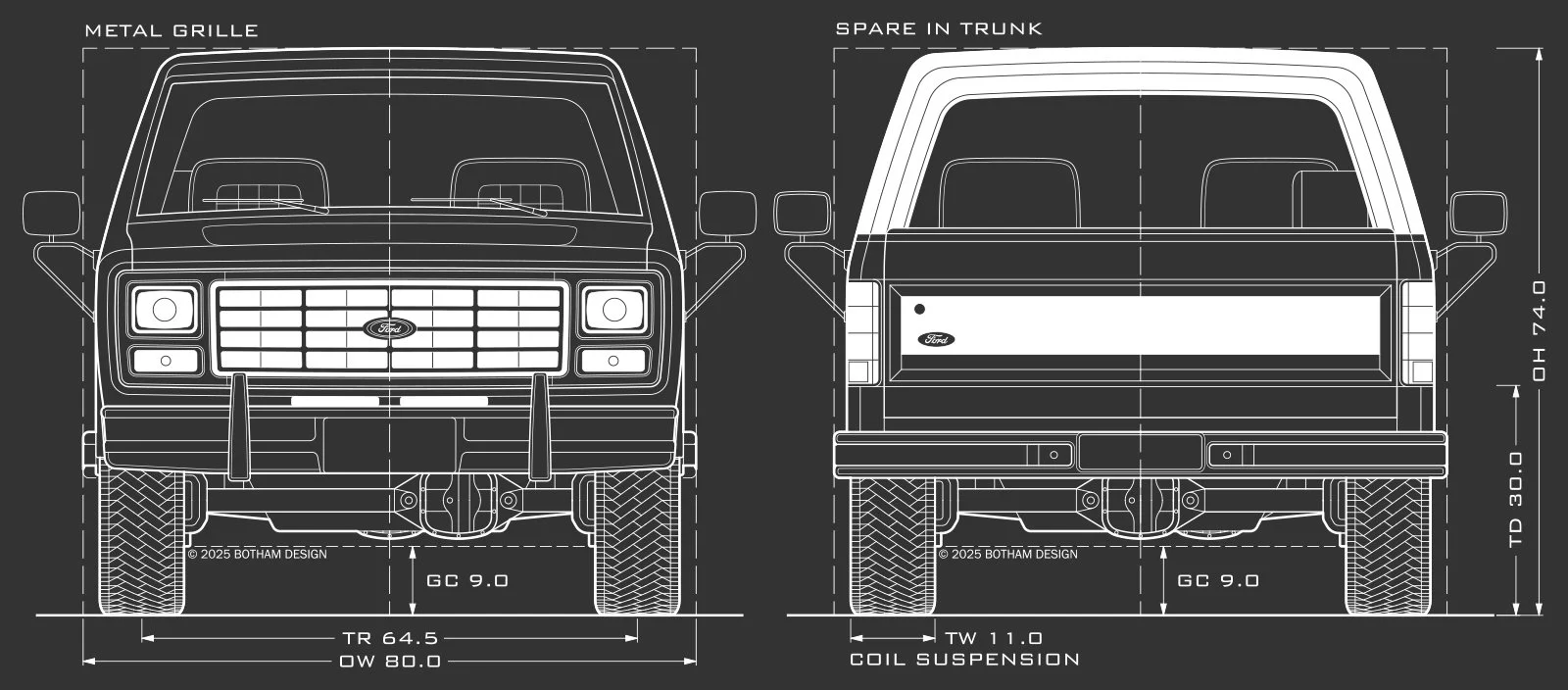

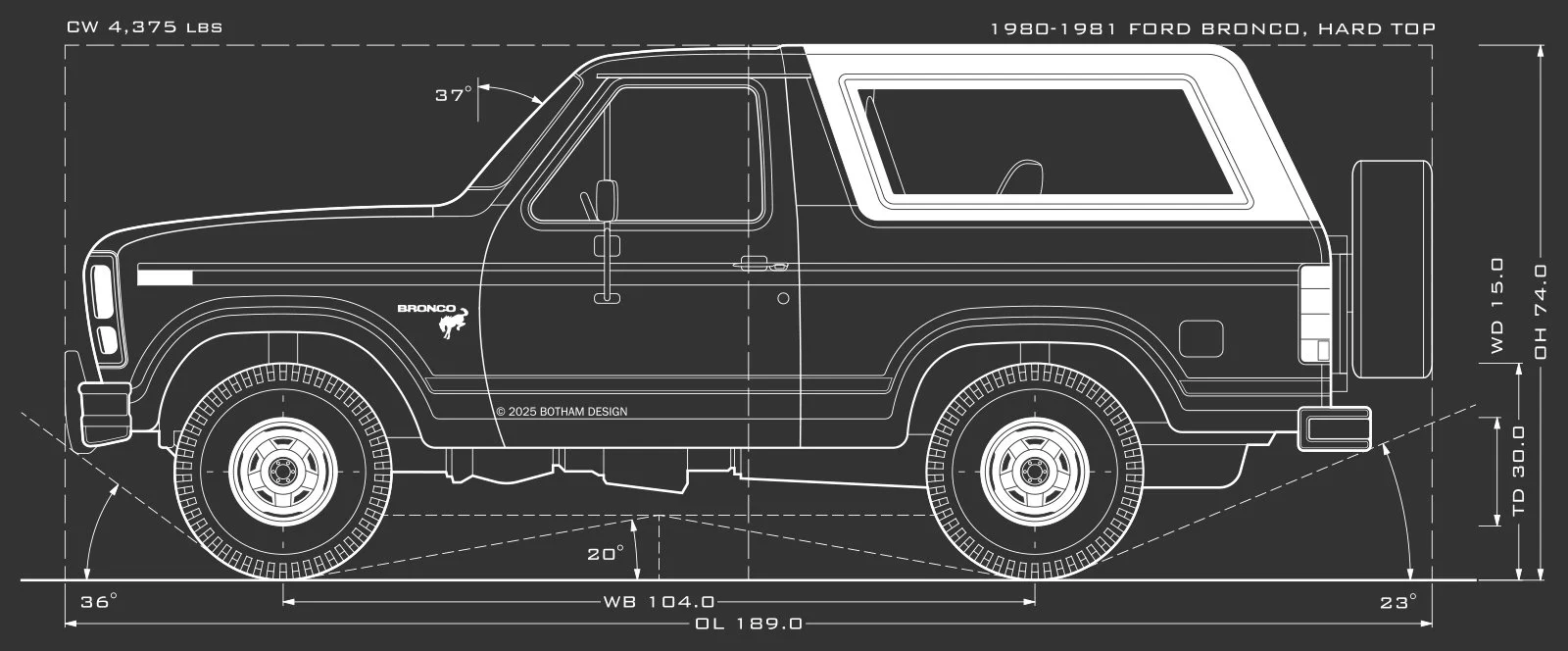

FORD BRONCO THIRD-GEN SPECS
MAIN SPECS
OVERALL LENGTH (OL): 189.0
OVERALL WIDTH (OW): 80.0
OVERALL HEIGHT (OH): 74.0
WHEELBASE (WB): 104.0
TRACK WIDTH (TR): 64.5
CURB WEIGHT (CW): 4,350 lbs
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.0
APPROACH ANGLE (AA): 36°
BREAKOVER ANGLE (BA): 20°
DEPARTURE ANGLE (DA): 23°
SUSPENSION TYPE (SU): Coil Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
