FORD BRONCO SECOND-GEN

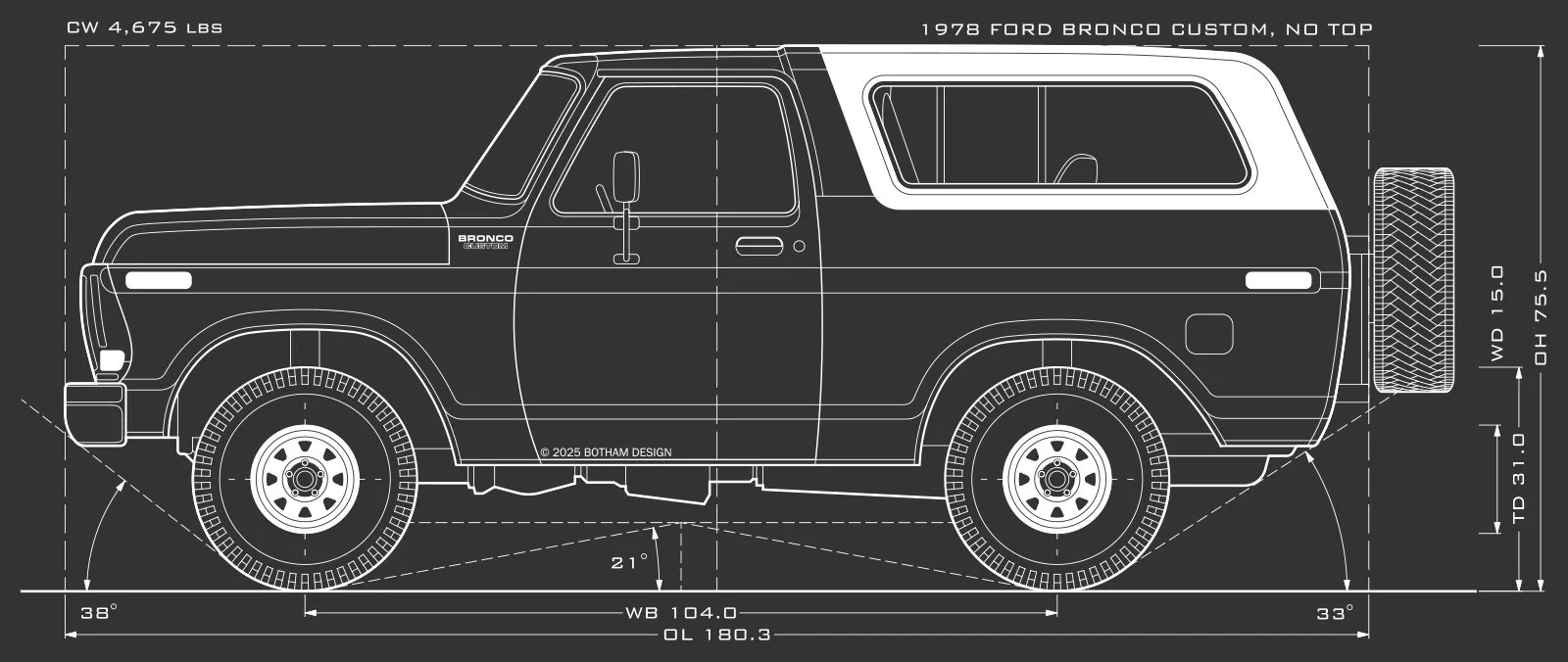

BRONCO CUSTOM 1978

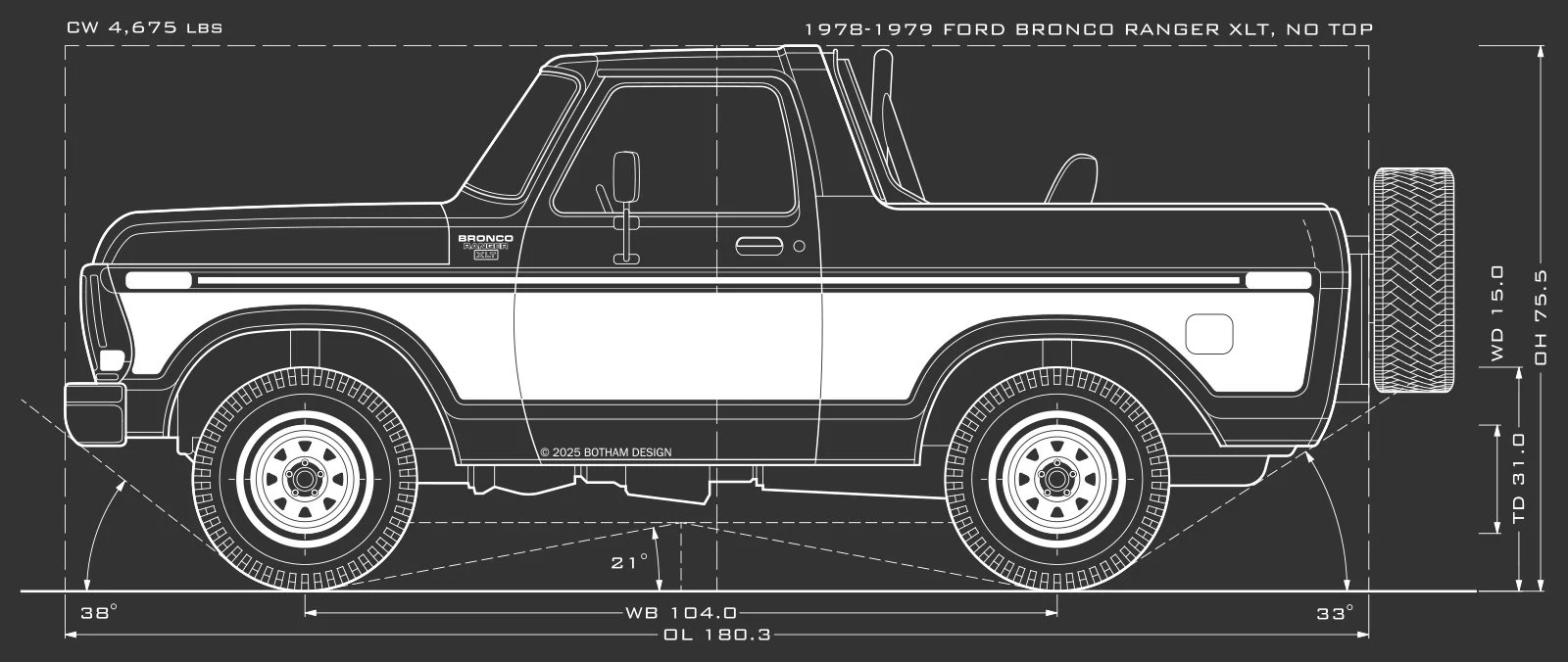

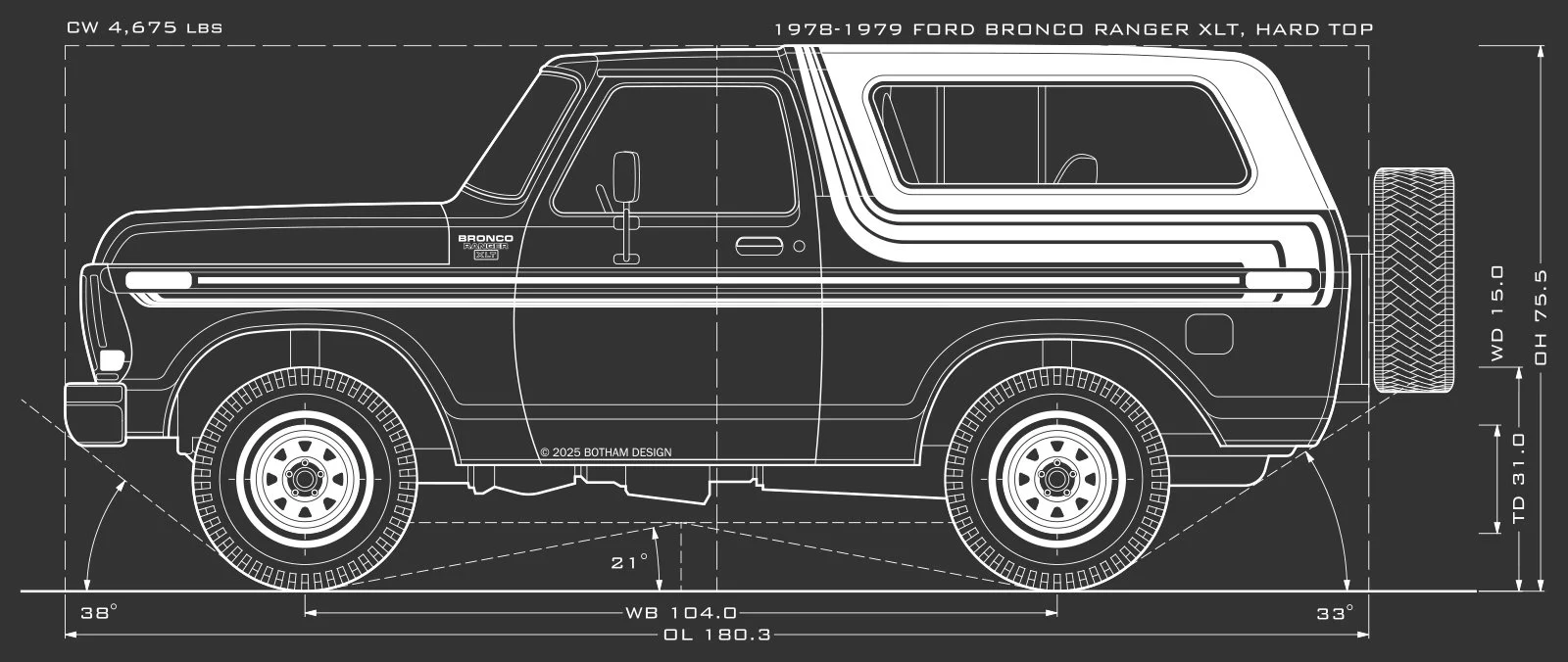

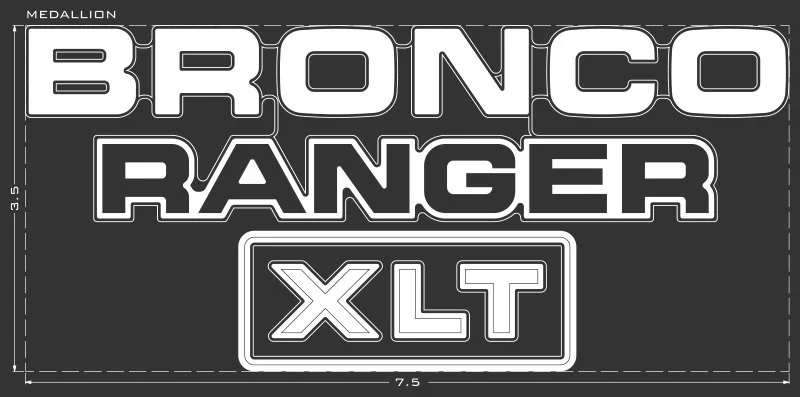

BRONCO RANGER XLT 1978-1979
ASSEMBLY : Wayne, MI, USA
UNITS PRODUCED : 182,000
PREDECESSOR : Ford Bronco First-Gen
SUCCESSOR : Ford Bronco Third-Gen
The second-gen Ford Bronco was the first full-size SUV that Ford produced, developed directly from the F-Series pickup trucks. The second-gen Bronco was only available for 2 years before the third-gen was introduced. It was available in 2 trim packages, the Custom, or base package, and the high-end Ranger XLT. Styling was shared with the F-Series pickup trucks, and showcases a 'free-wheeling' aesthetic, common in the late 1970s.
SPECS
FORD BRONCO SECOND-GEN SPECS
MAIN SPECS

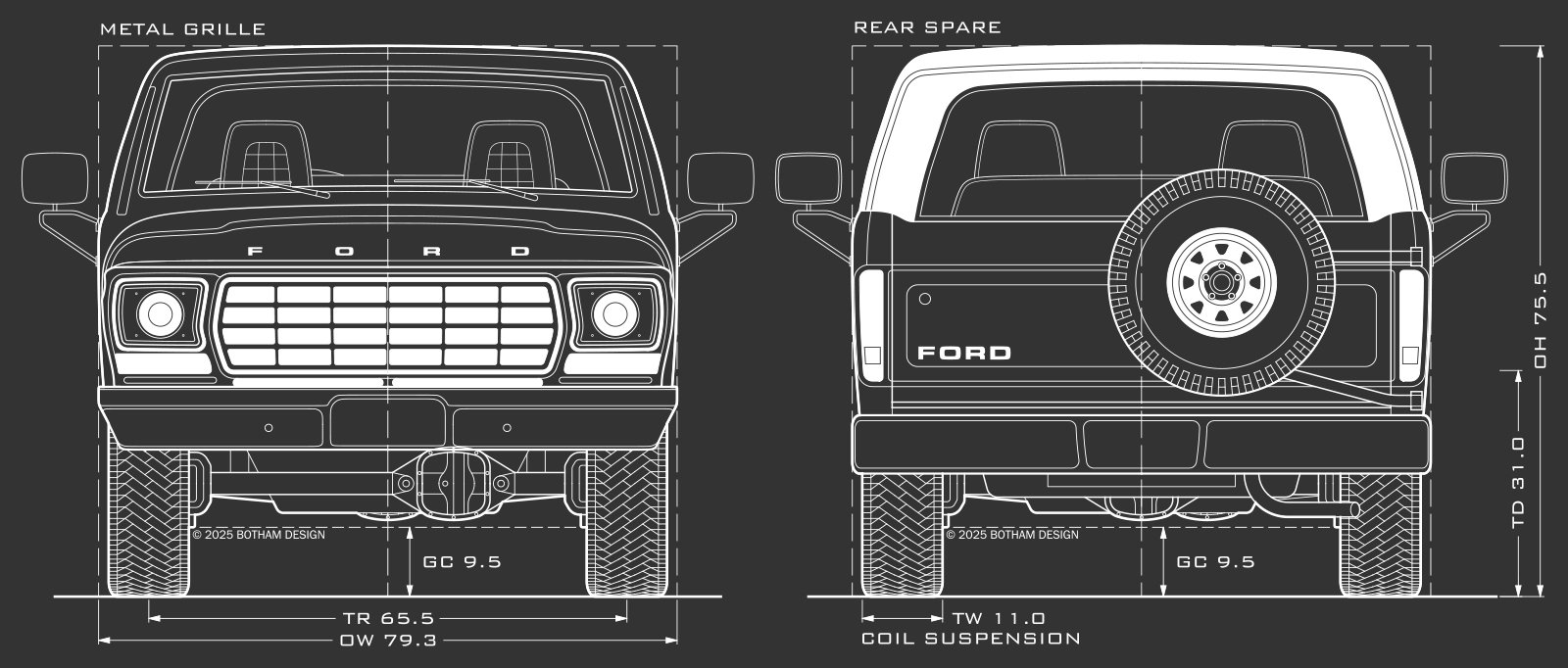

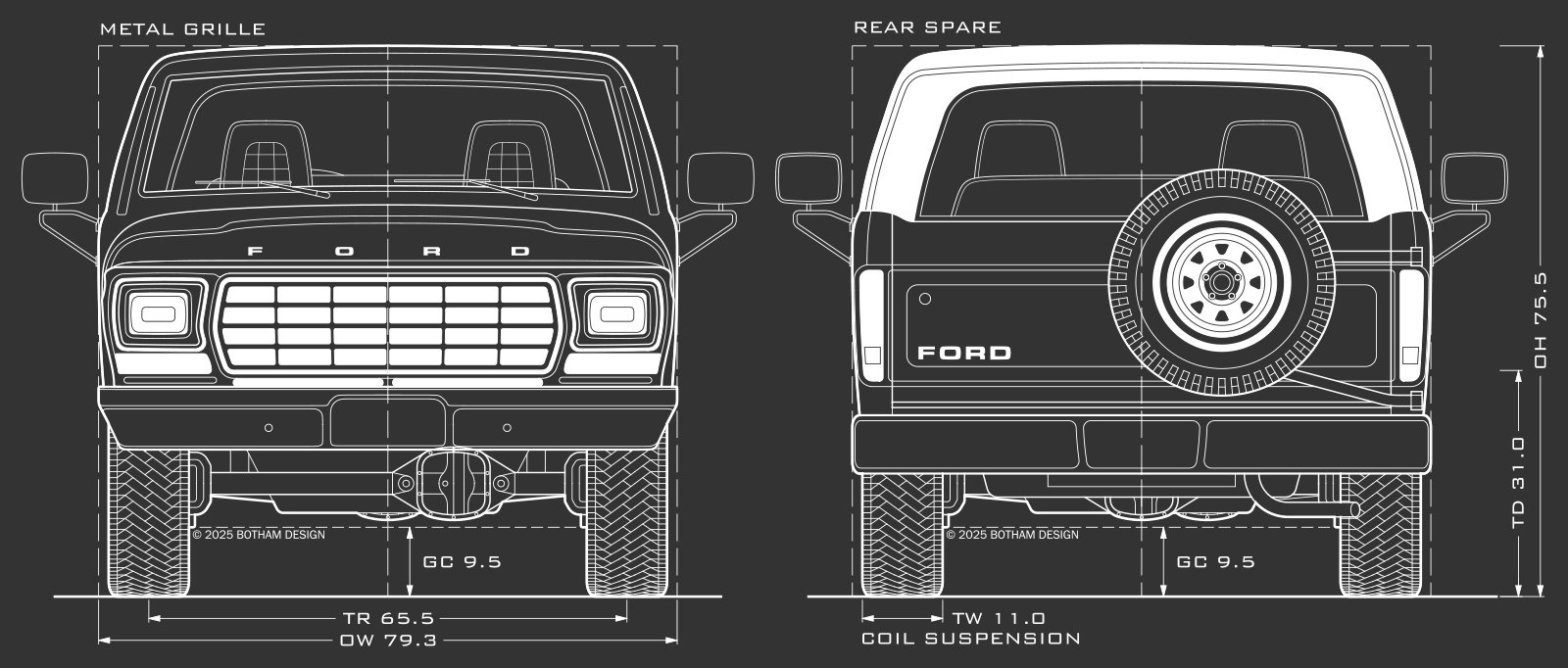

OVERALL LENGTH (OL): 180.3
OVERALL WIDTH (OW): 79.3
OVERALL HEIGHT (OH): 75.5
WHEELBASE (WB): 104.0
TRACK WIDTH (TR): 65.5
CURB WEIGHT (CW): 4,675 lbs
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.5
APPROACH ANGLE (AA): 38°
BREAKOVER ANGLE (BA): 21°
DEPARTURE ANGLE (DA): 33°
SUSPENSION TYPE (SU): Coil Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
