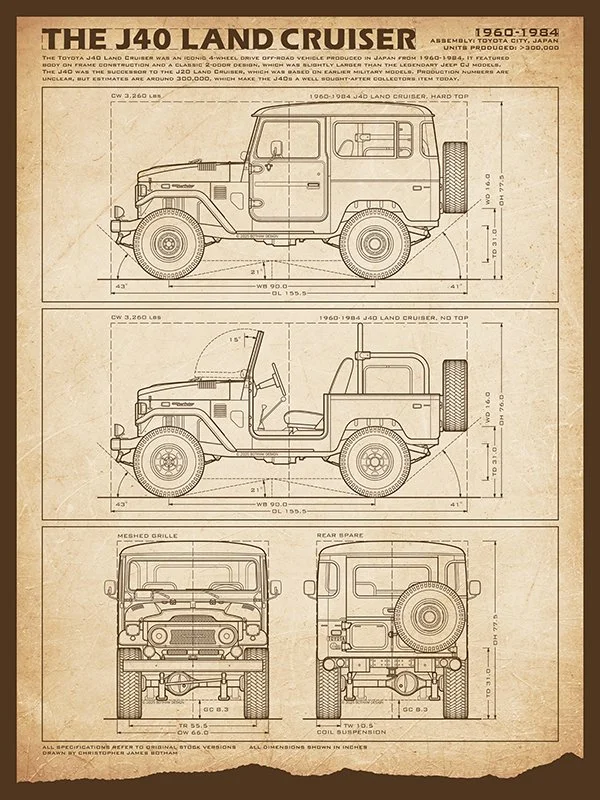

TOYOTA J40 LAND CRUISER
J40 1960-1984
ASSEMBLY : Toyota City, Japan
UNITS PRODUCED : ~300,000
PREDECESSOR : J20 Land Cruiser
SUCCESSOR : J50 Land Cruiser
The Toyota J40 Land Cruiser was an iconic 4-wheel drive off-road vehicle produced in Japan from 1960-1984. It featured body-on-frame construction and a classic 2-door design, which was slightly larger than the legendary Jeep CJ models. The J40 was the successor to the J20 Land Cruiser, which was based on earlier military models. Production numbers are unclear, but estimates are around 300,000, which make the J40s a well sought-after collectors item today.
SPECS

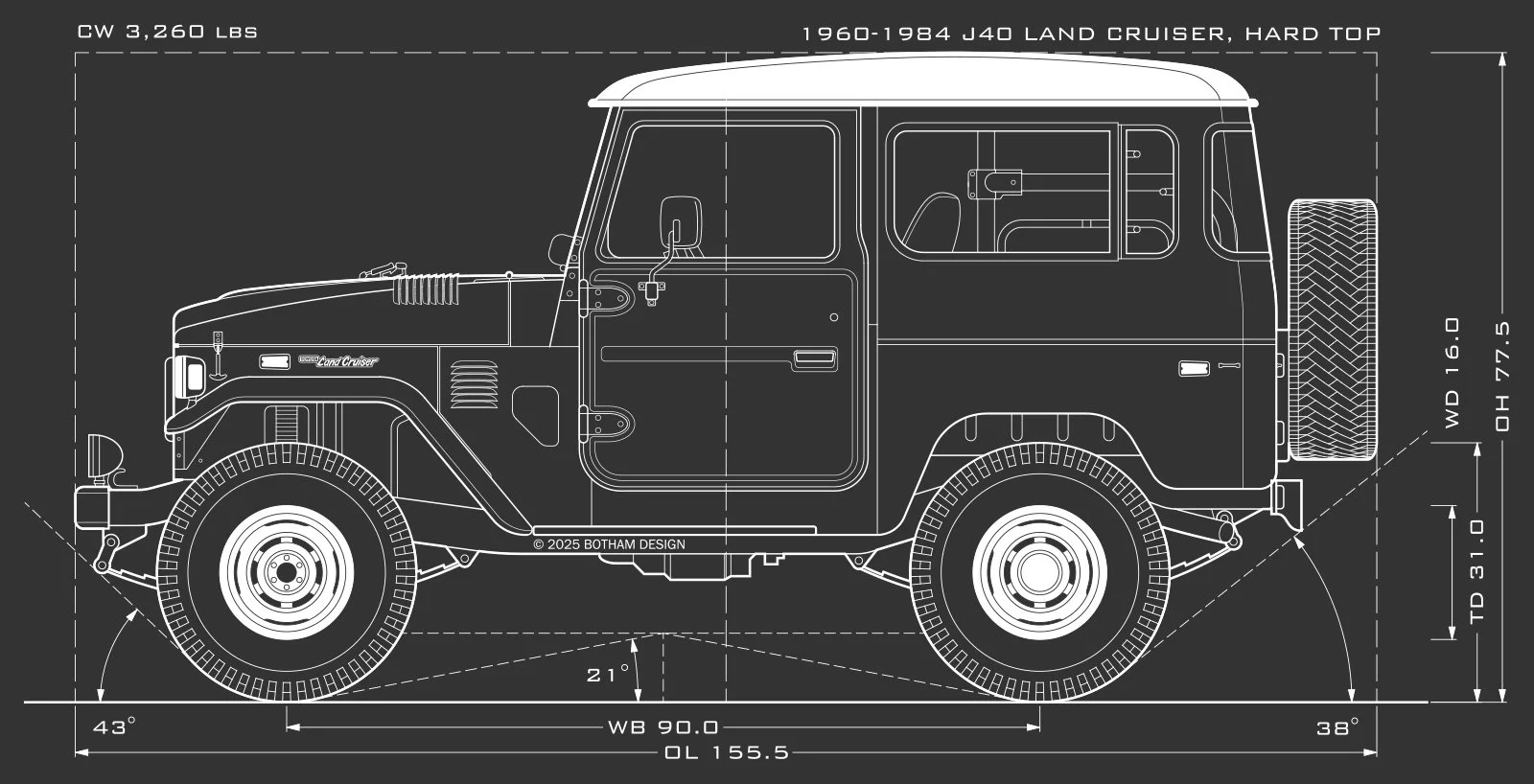

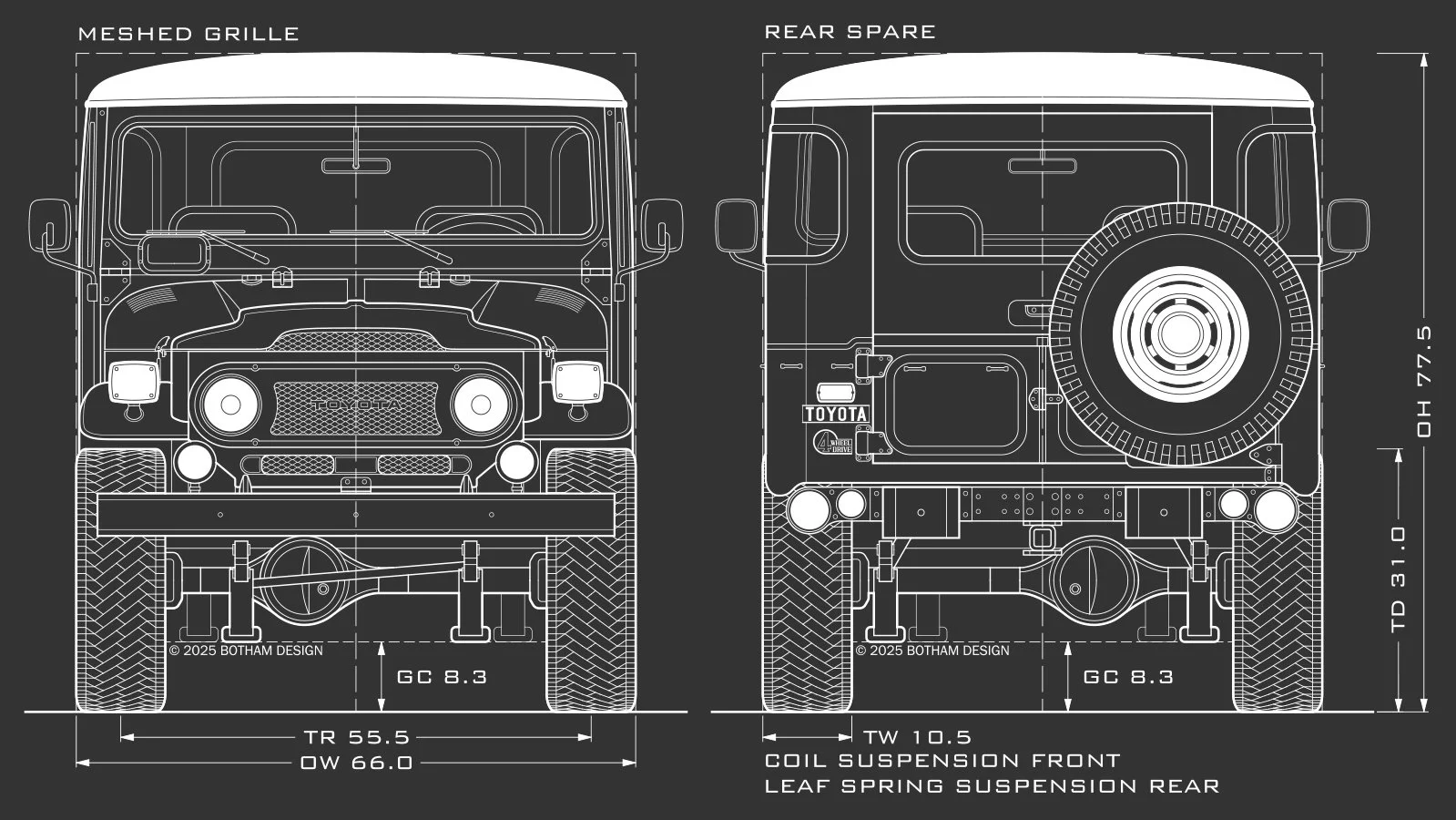

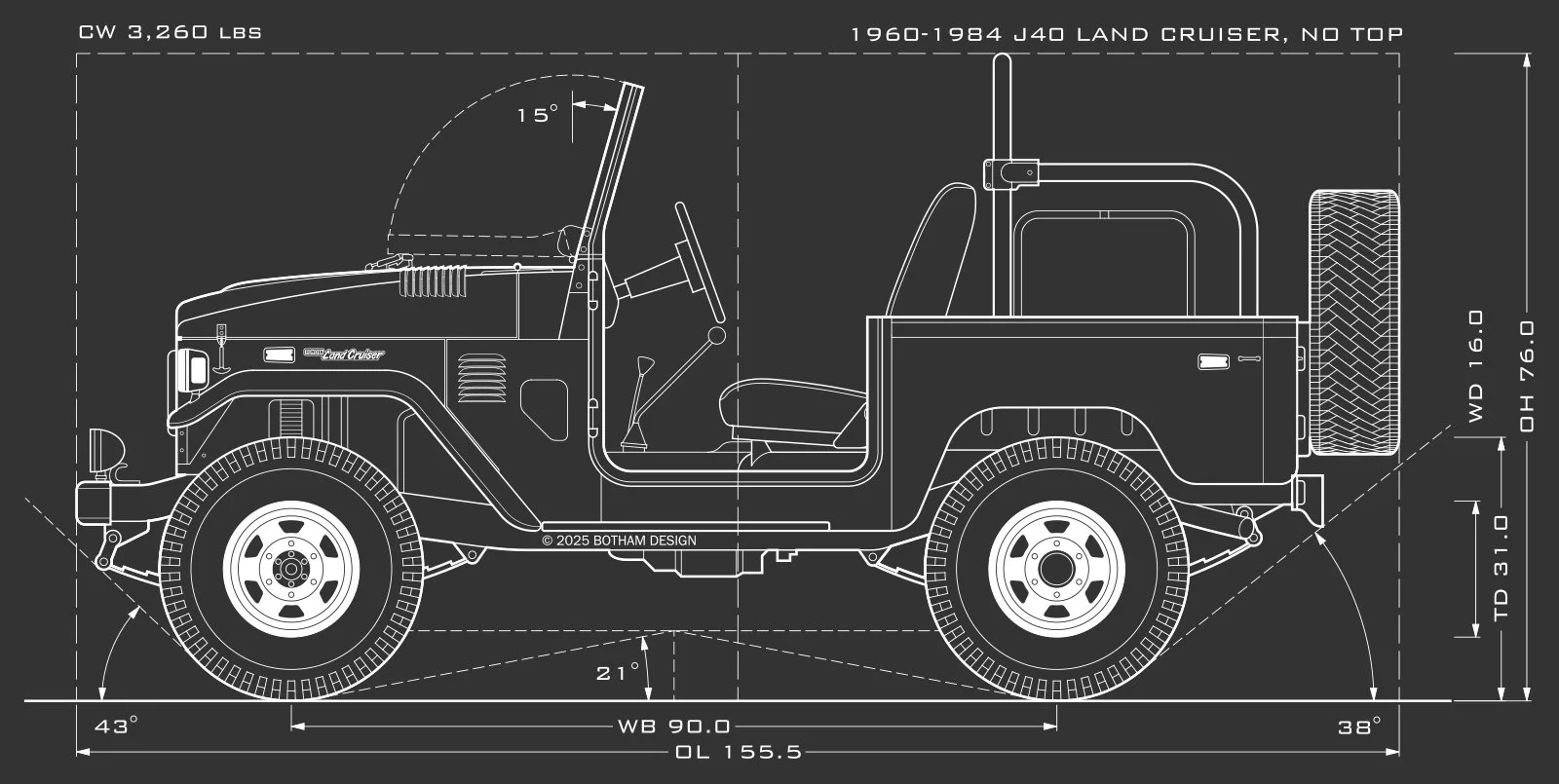

J40 LAND CRUISER SPECS
MAIN SPECS
OVERALL LENGTH (OL): 155.5
OVERALL WIDTH (OW): 66.0
OVERALL HEIGHT (OH): 77.5
WHEELBASE (WB): 90.0
TRACK WIDTH (TR): 55.5
CURB WEIGHT (CW): 3,260 lbs
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.3
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 21°
DEPARTURE ANGLE (DA): 41°
SUSPENSION TYPE (SU): Coil Suspension Front, Leaf-Spring Suspension Rear
All specifications refer to original stock versions
All dimensions shown in inches

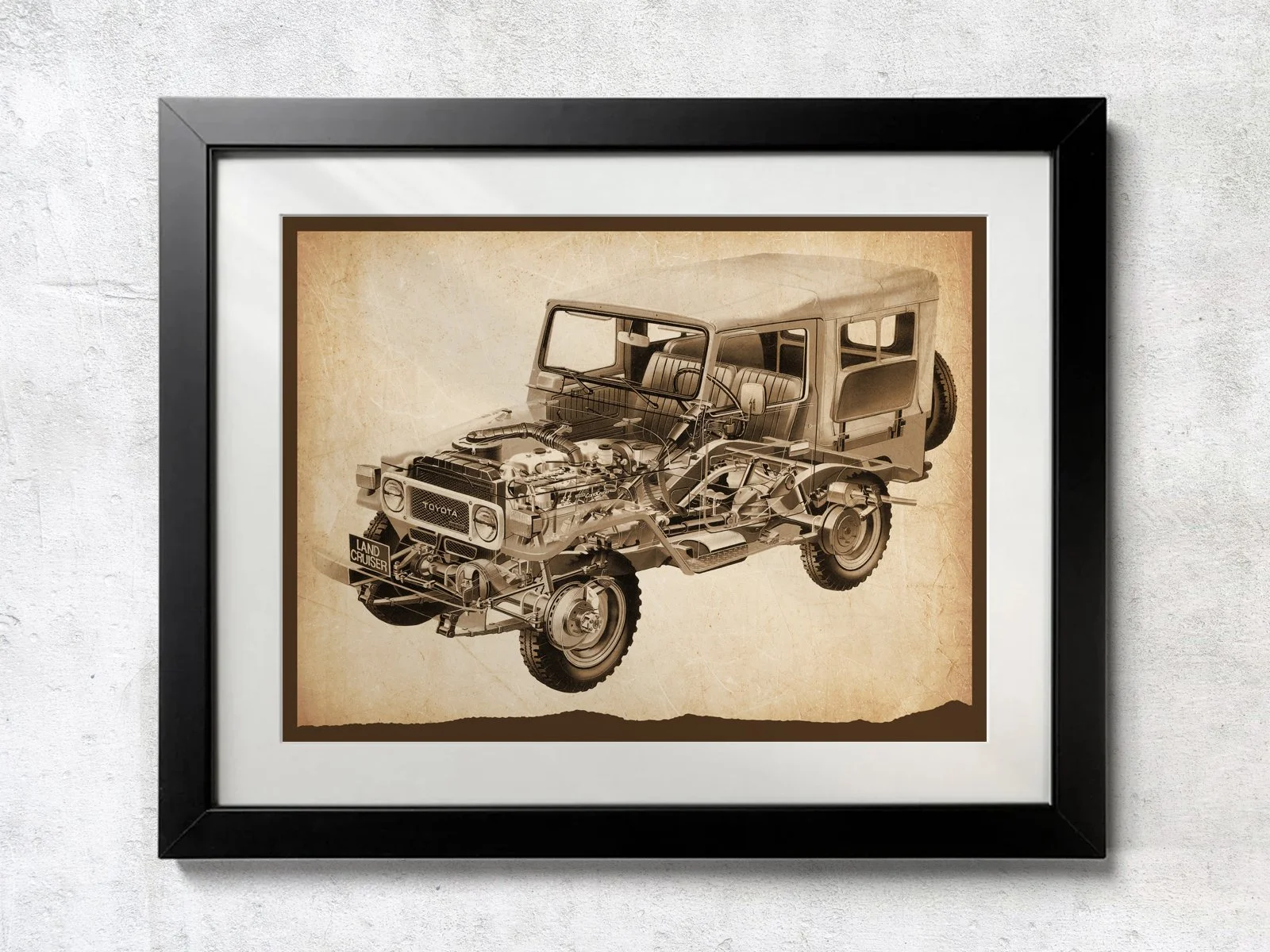

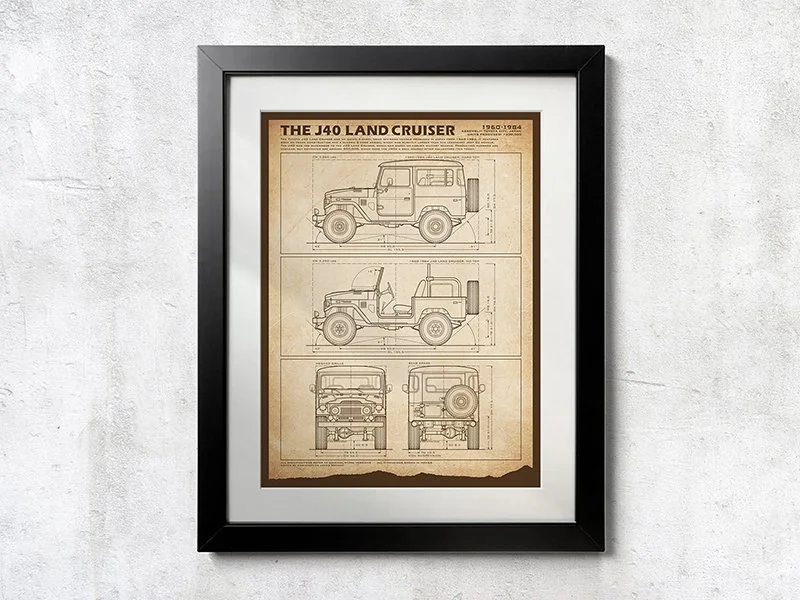

Drawn by Christopher James Botham
