CJ-5
UNIVERSAL 1955 - 1972

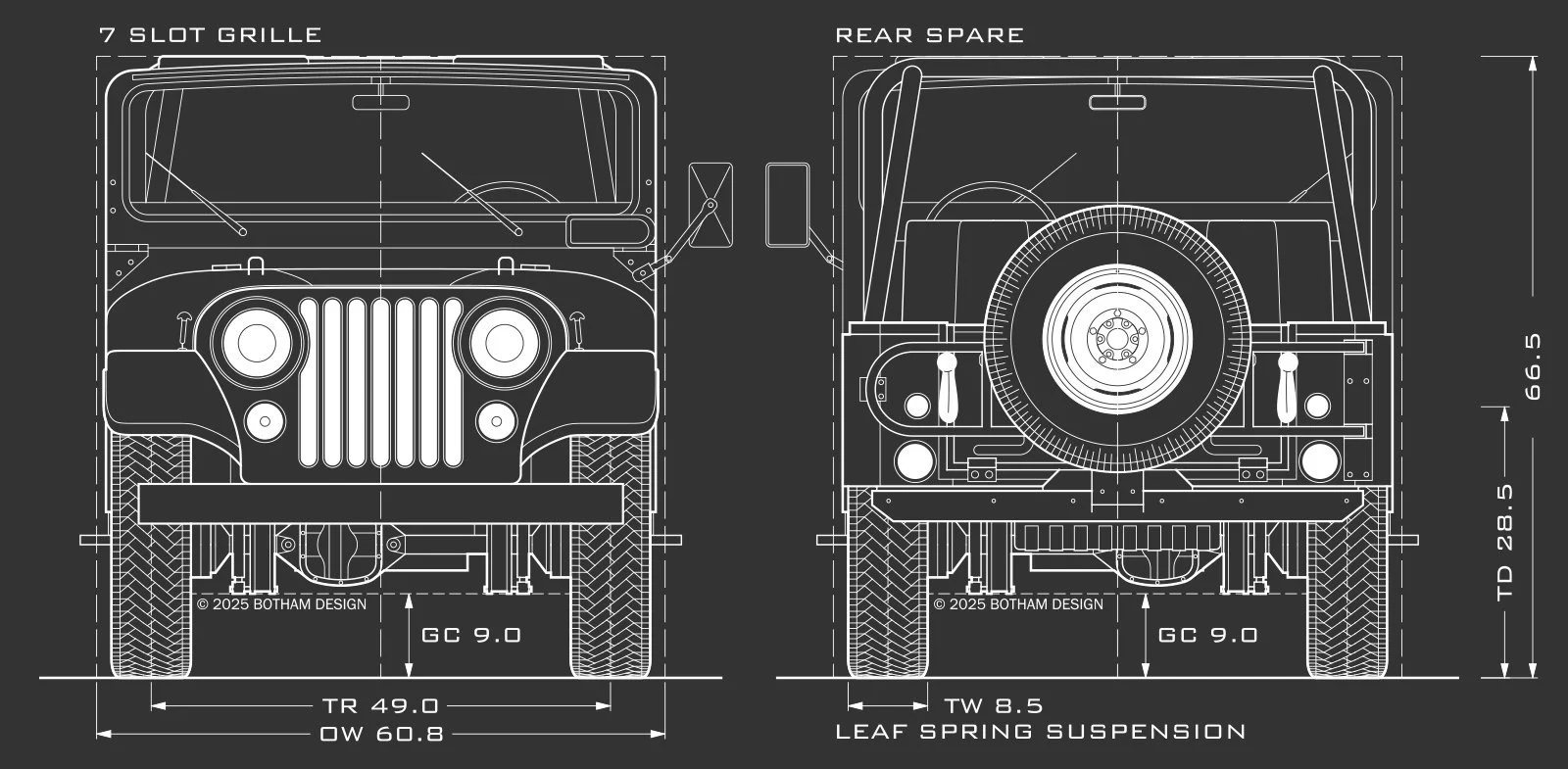

RENEGADE I 1970
RENEGADE II 1971

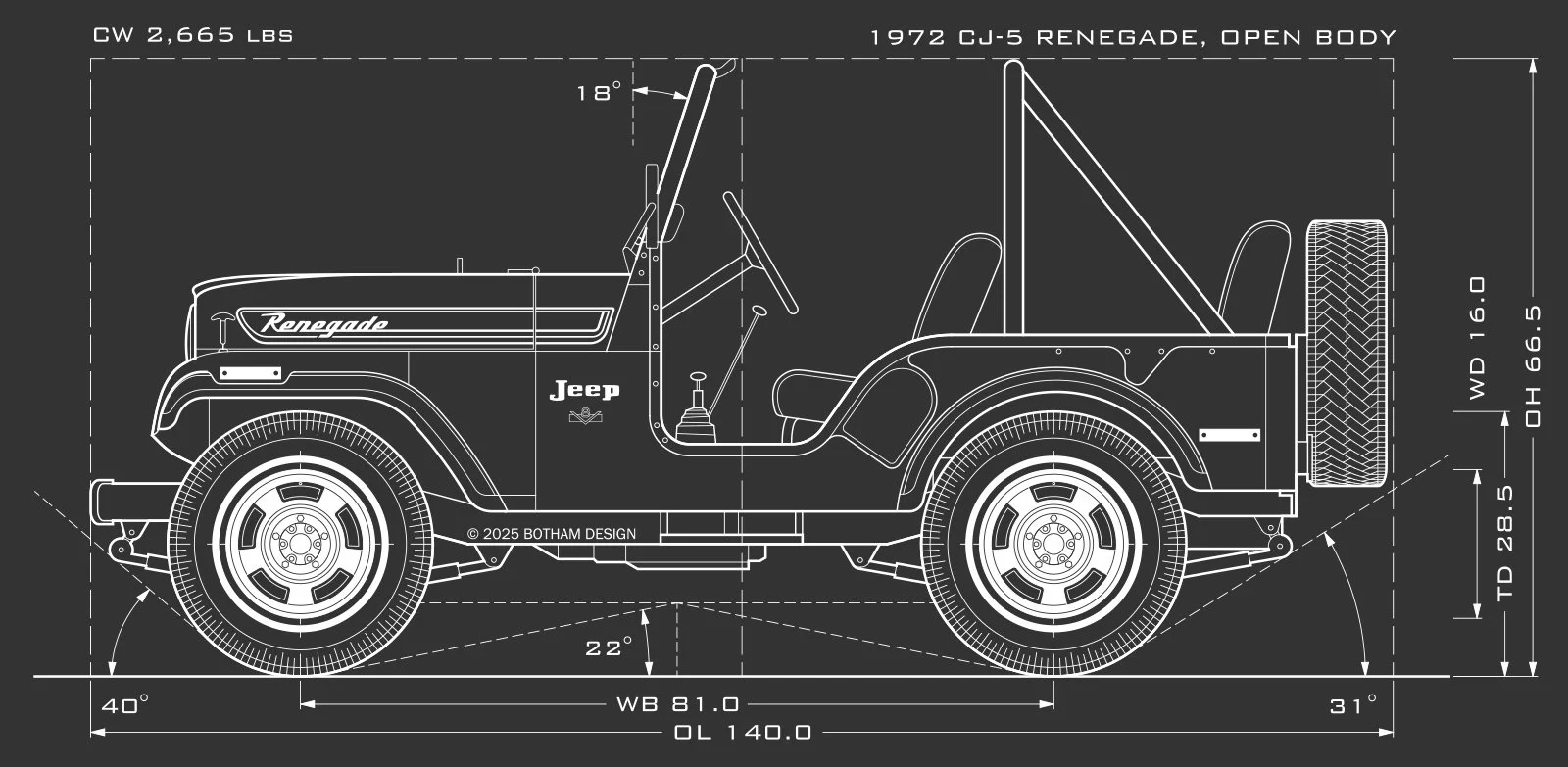

RENEGADE 1972 - 1975

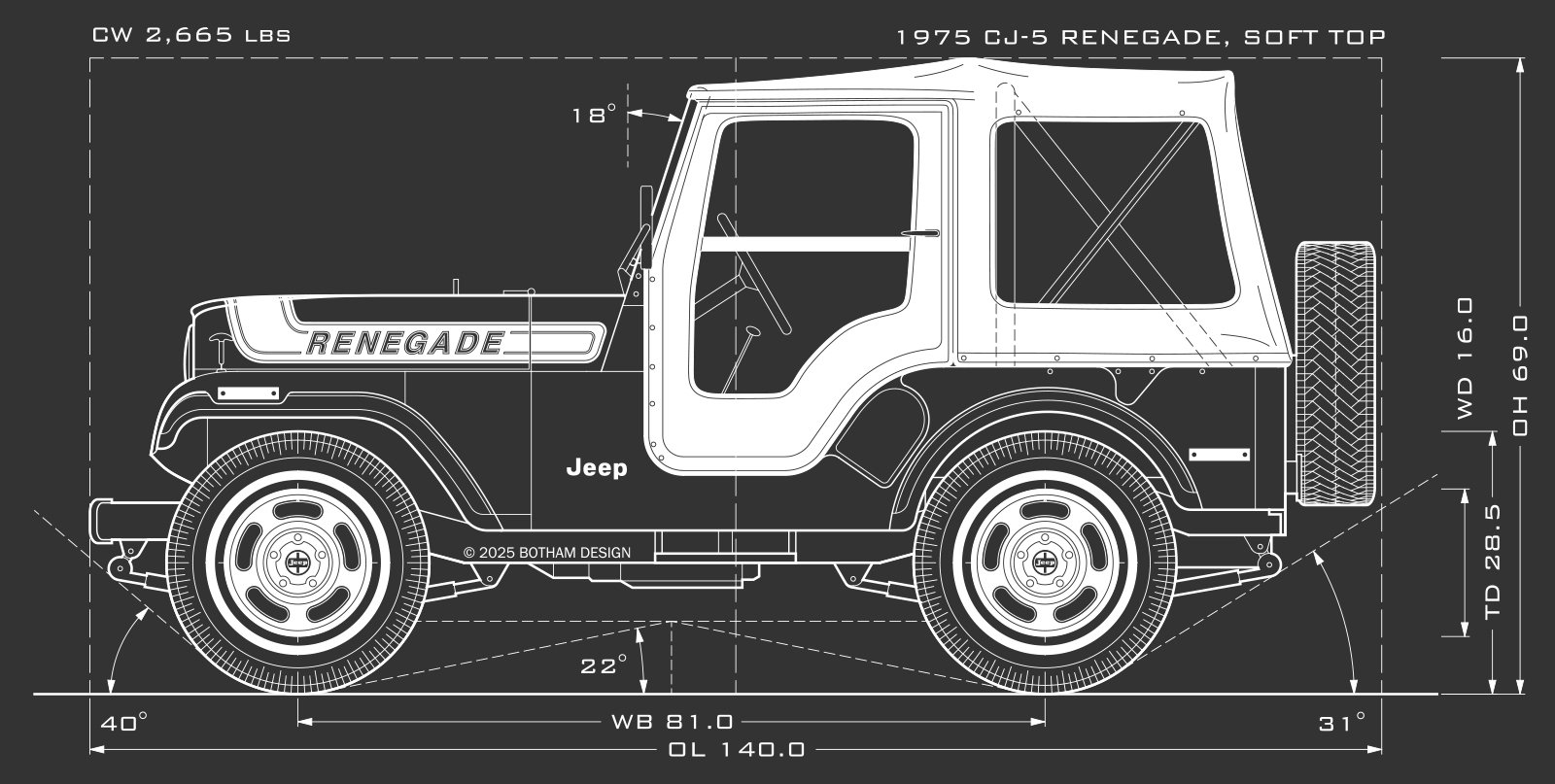

RENEGADE 1976 - 1979

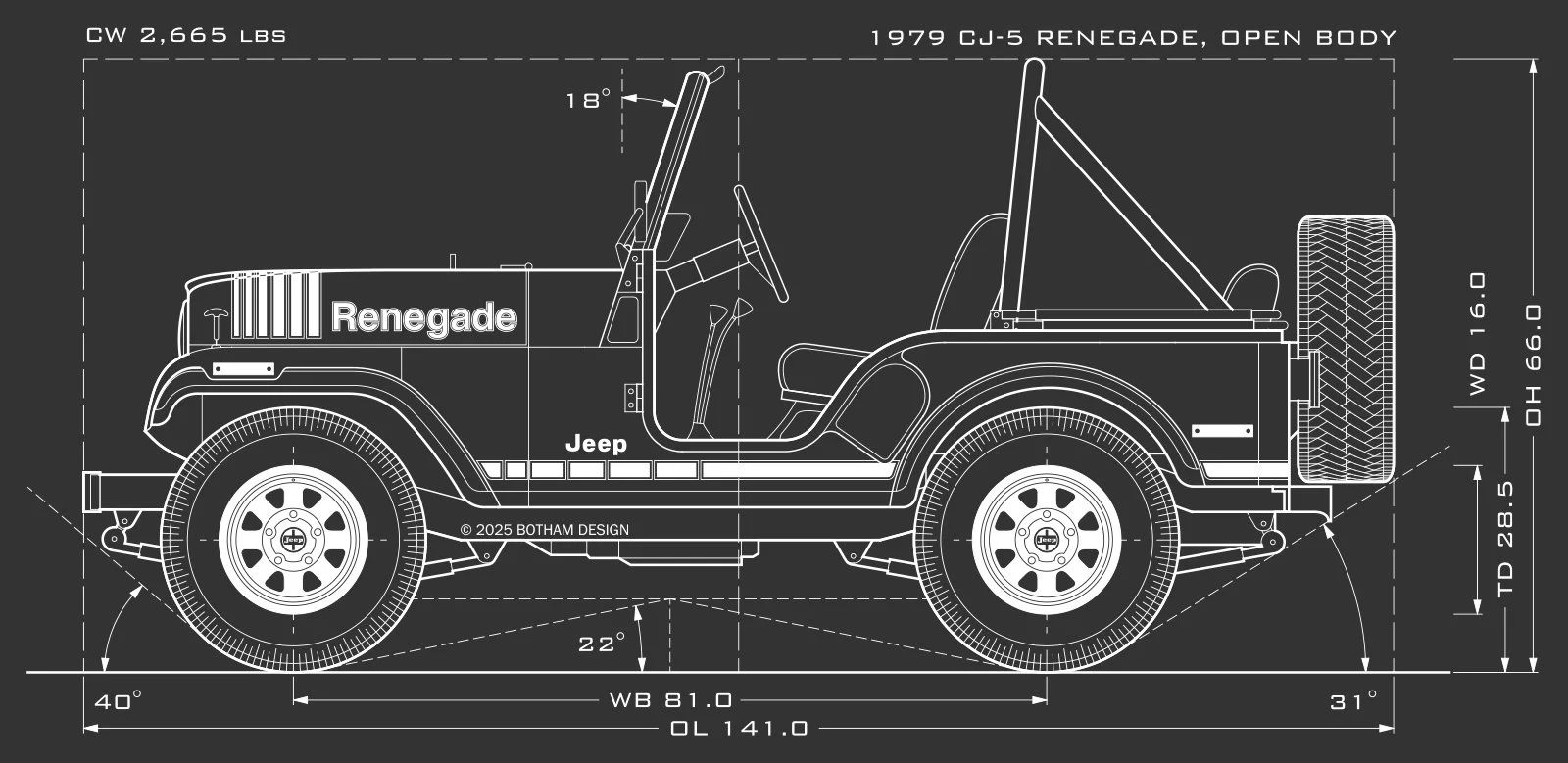

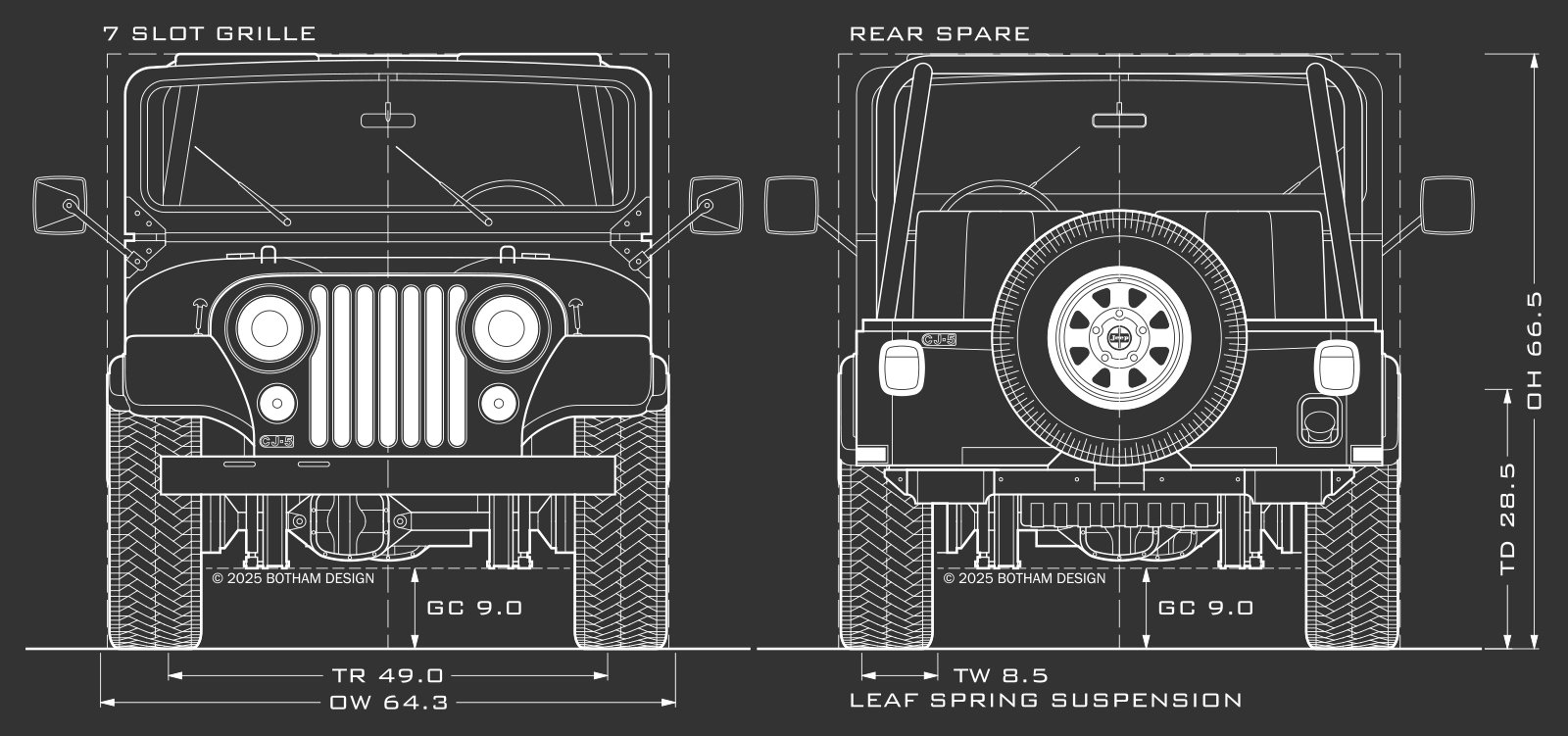

RENEGADE 1979 - 1981

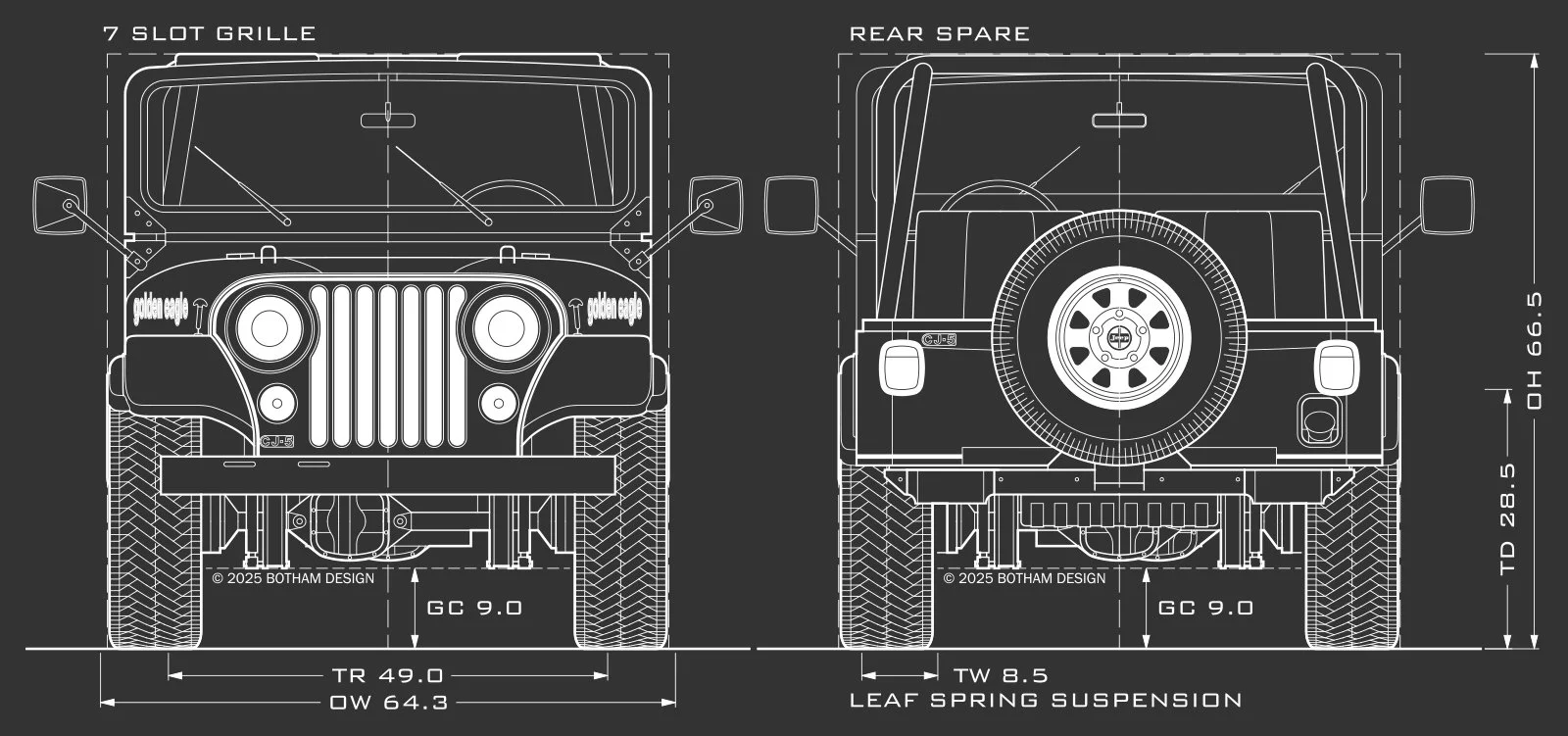

GOLDEN EAGLE 1977 - 1983

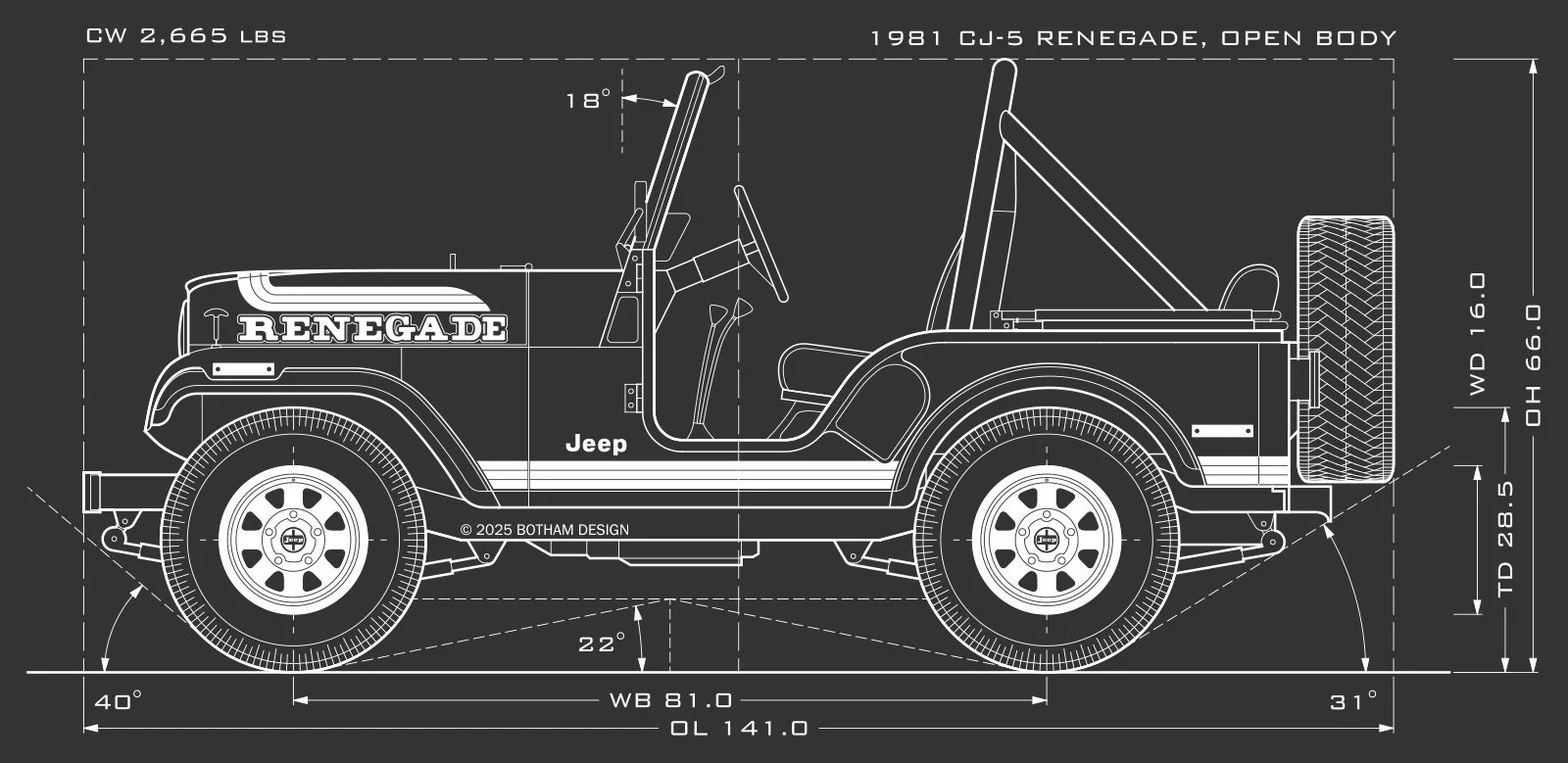

RENEGADE 1981 - 1982
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 603,000
PREDECESSOR : CJ-4
SUCCESSOR : CJ-7
SUB-MODEL : M-38A1, CJ-5A Tuxedo Park, DJ-5 Dispatcher
The CJ-5 Universal is the civilian version of the M-38A1. It is arguably the most iconic jeep of all time, and it enjoyed the longest production run of any jeep. The iconic curved fenders were reproduced throughout the rest of the CJ models, and the versatility of the options saw it outsell all previous civilian jeeps by a large margin.

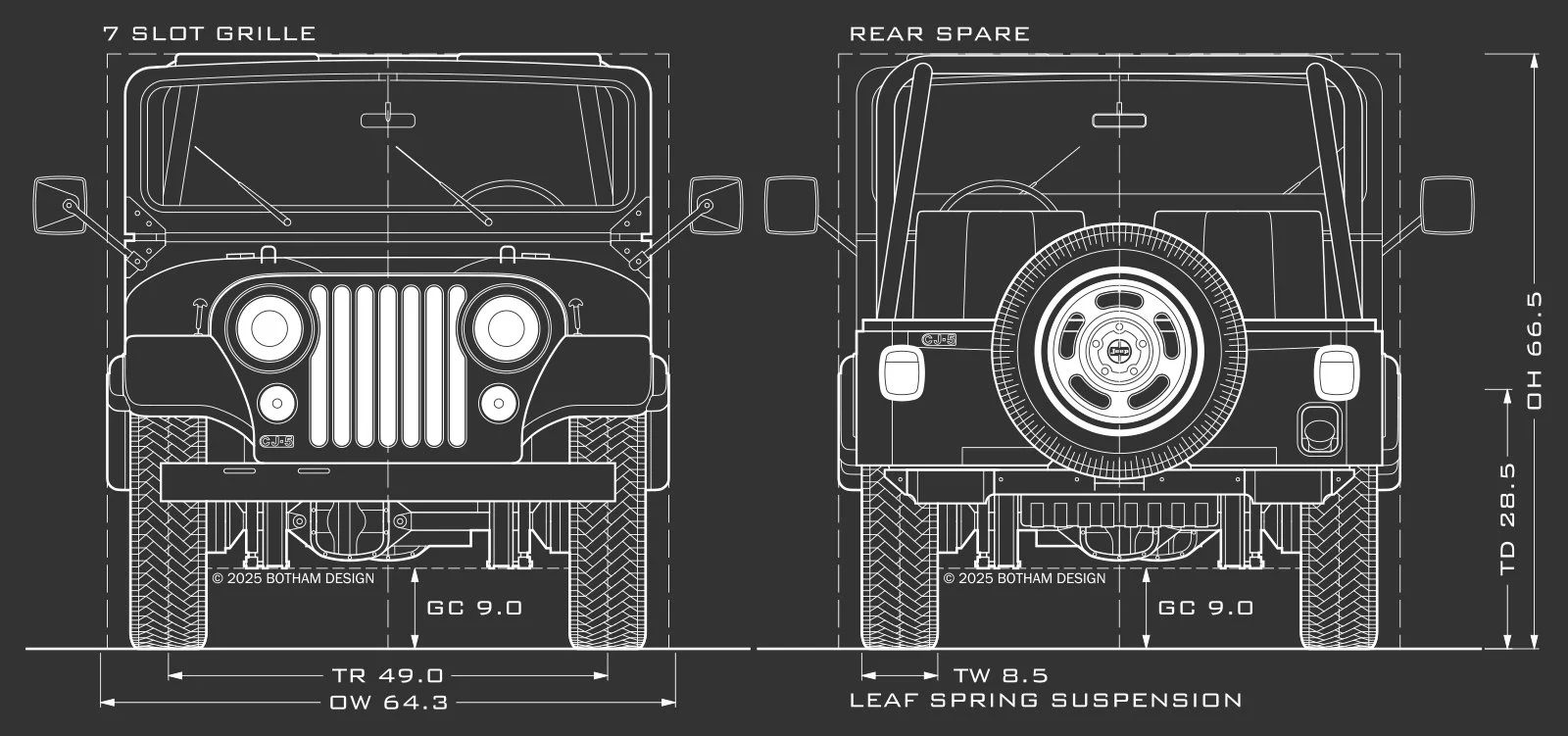

GRILLES
WHEELS
BADGING
Jeep Metal Stamp : Fenderside
Jeep Metal Stamp : Tailgate Center
V6 Medallion : Fenderside
4 Wheel Drive Decal : Tailgate Right
Renegade II Decal : Hoodside
Renegade I Decal : Hoodside
Jeep Metal Stamp : Fenderside
V8 Medallion : Fenderside

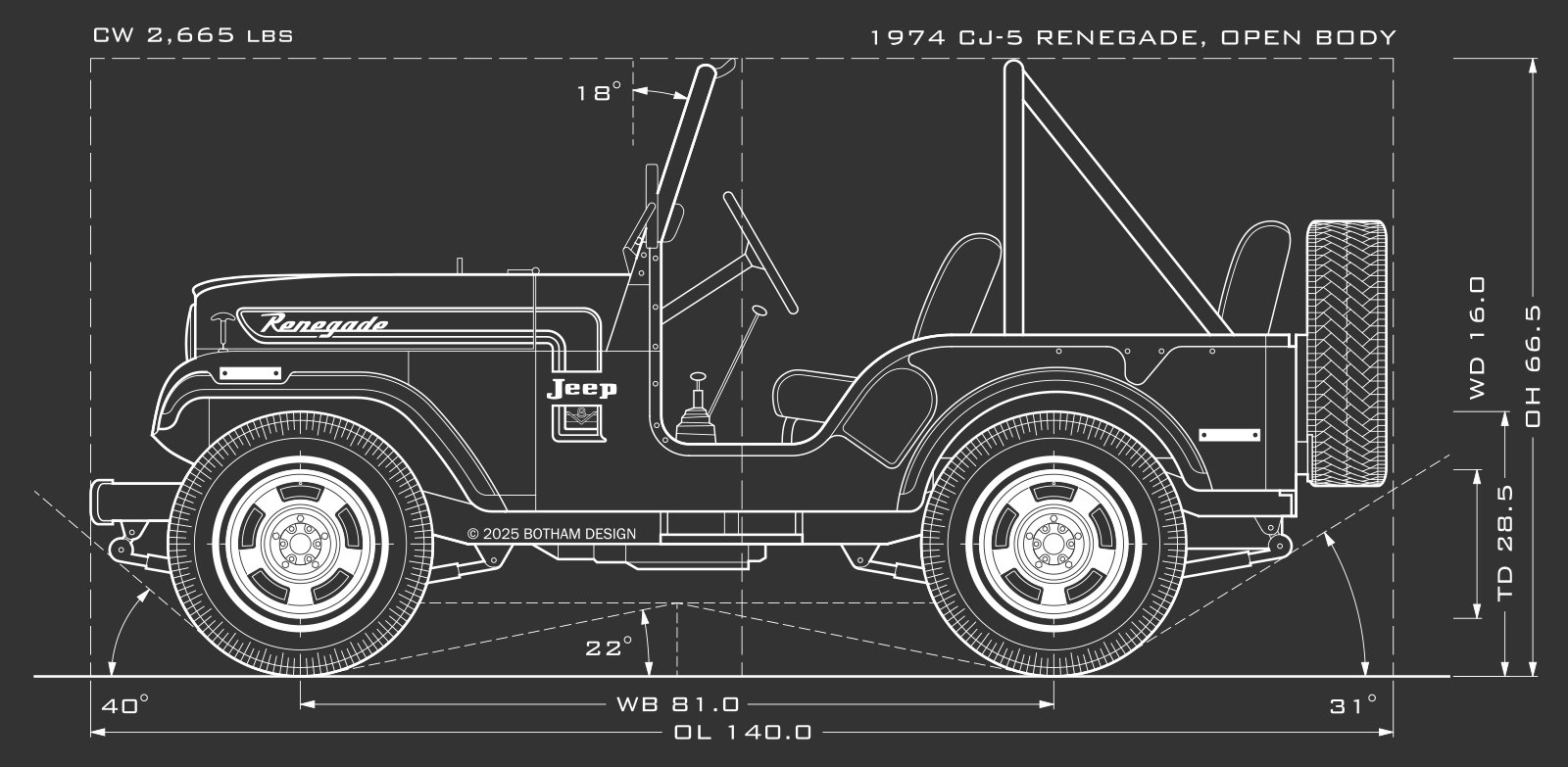

1974 Renegade Decal : Hoodside
1975-1976 Renegade Decal : Hoodside
Jeep Metal Stamp : Fenderside
1979-1981 Renegade Decal : Hoodside
CJ-5 Medallion : Tailgate Left
Golden Eagle Decal : Hoodside
Golden Eagle Graphic Decal : Hood
1981 Renegade Decal : Hoodside
SPECS

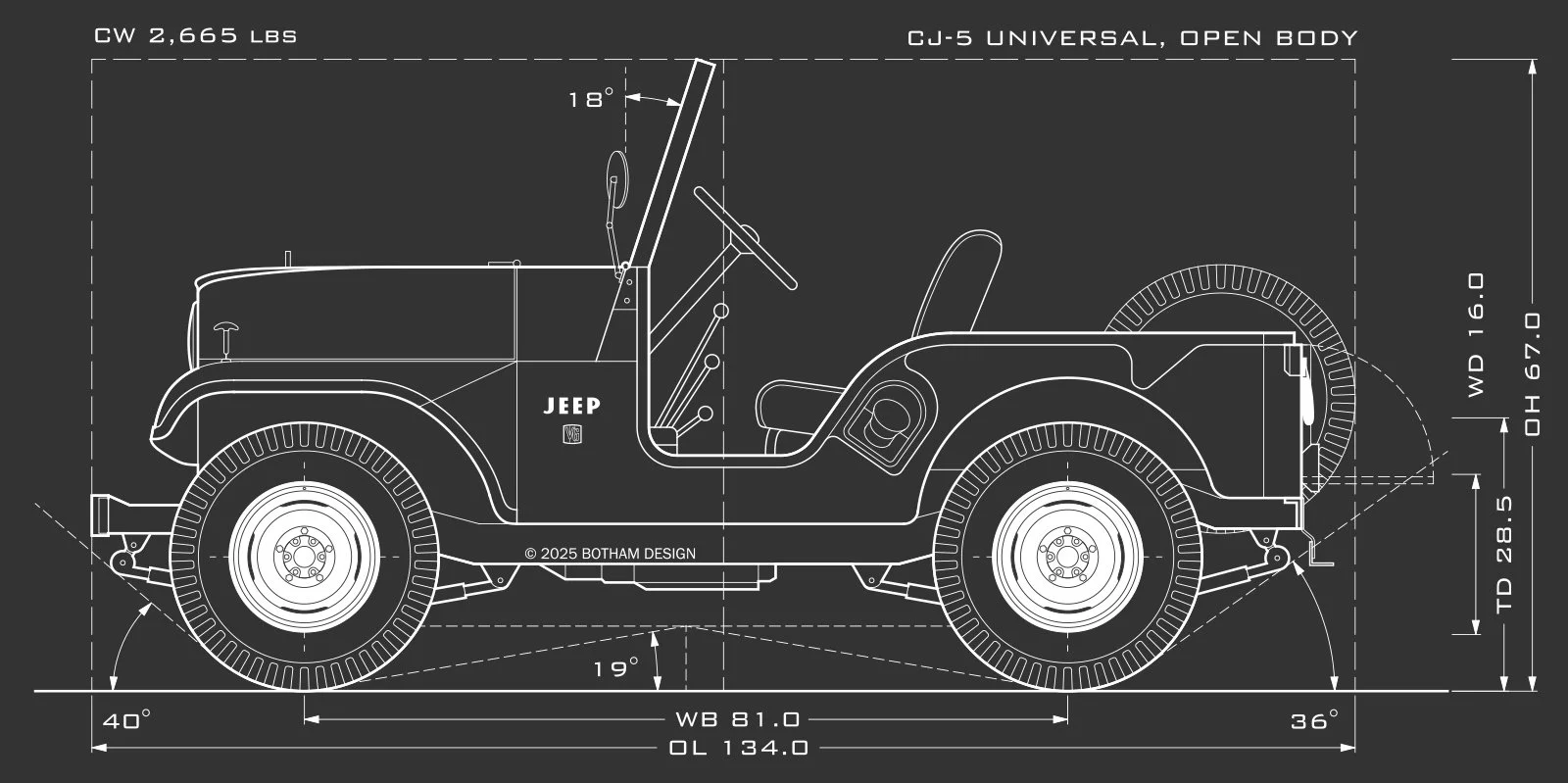

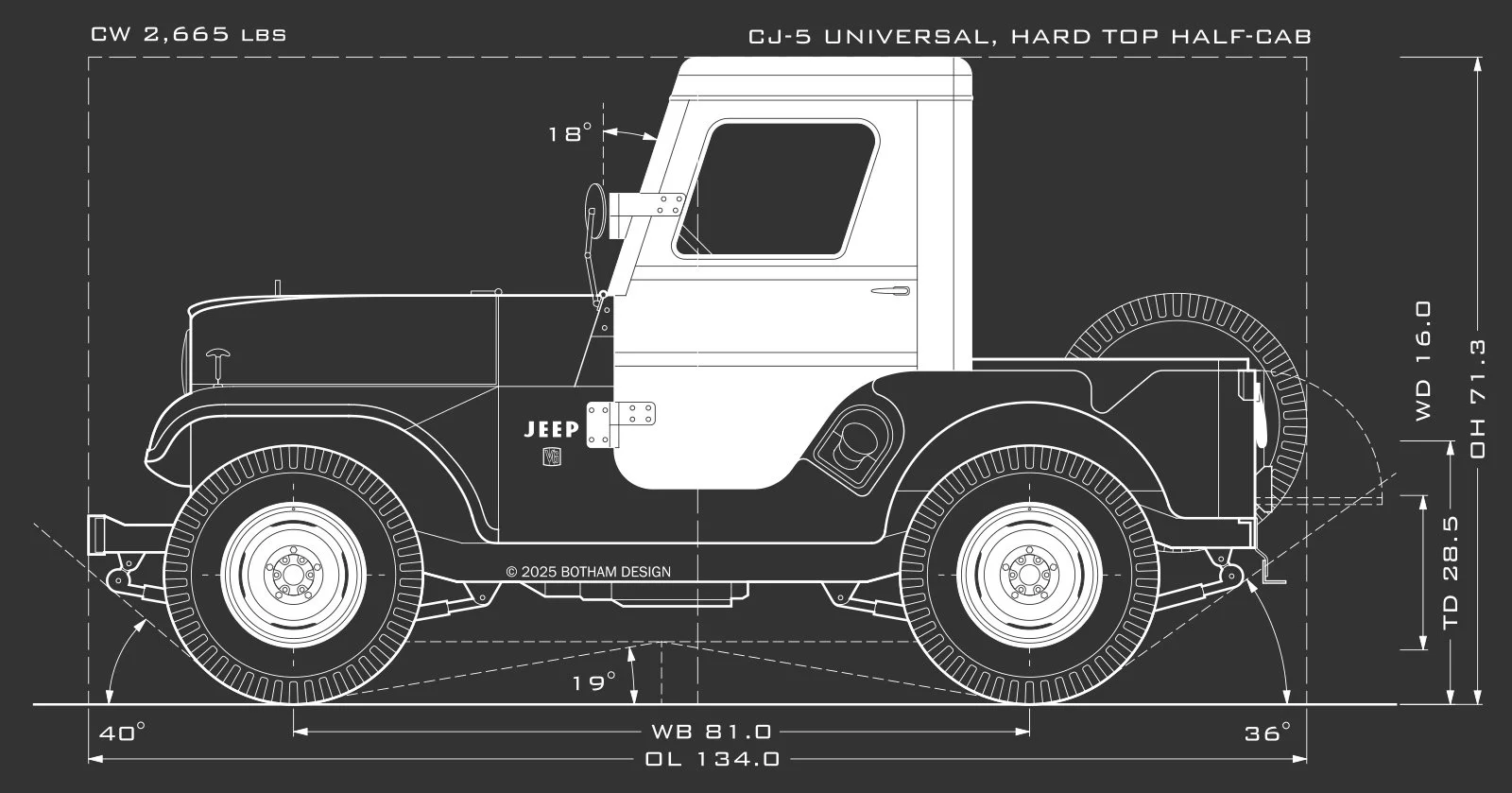

CJ-5 UNIVERSAL SPECS
MAIN SPECS
OVERALL LENGTH (OL): 134.0
OVERALL WIDTH (OW): 60.8
OVERALL HEIGHT (OH), TOP UP: 70.0
OVERALL HEIGHT (OH), FRAME: 67.0
WHEELBASE (WB): 81.0
TRACK WIDTH (TR): 49.1
CURB WEIGHT (CW): 2,665 lbs
WINDSHIELD ANGLE (WA): 19°
SPARE LOCATION: Side Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.0
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 19°
DEPARTURE ANGLE (DA): 33°
SUSPENSION TYPE (SU): Leaf Spring
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
