LAND ROVER SERIES II
SERIES II SWB 1958 - 1971
SERIES II LWB 1958 - 1971
ASSEMBLY : Solihull, UK
UNITS PRODUCED : 110,000
PREDECESSOR : Land Rover Series I
SUCCESSOR : Land Rover Series III
The Series II Land Rover closely followed the Series I, with a few stylistic upgrades. The body design was streamlined, and introduced the barrel side body shape and the curved side windows and roof still used today. The Series II was available in 88-inch wheelbase (SWB) and 109-inch wheelbase (LWB) variants. It is almost indistinguishable from the Series IIA, which was sold from 1961-1971.
SPECS

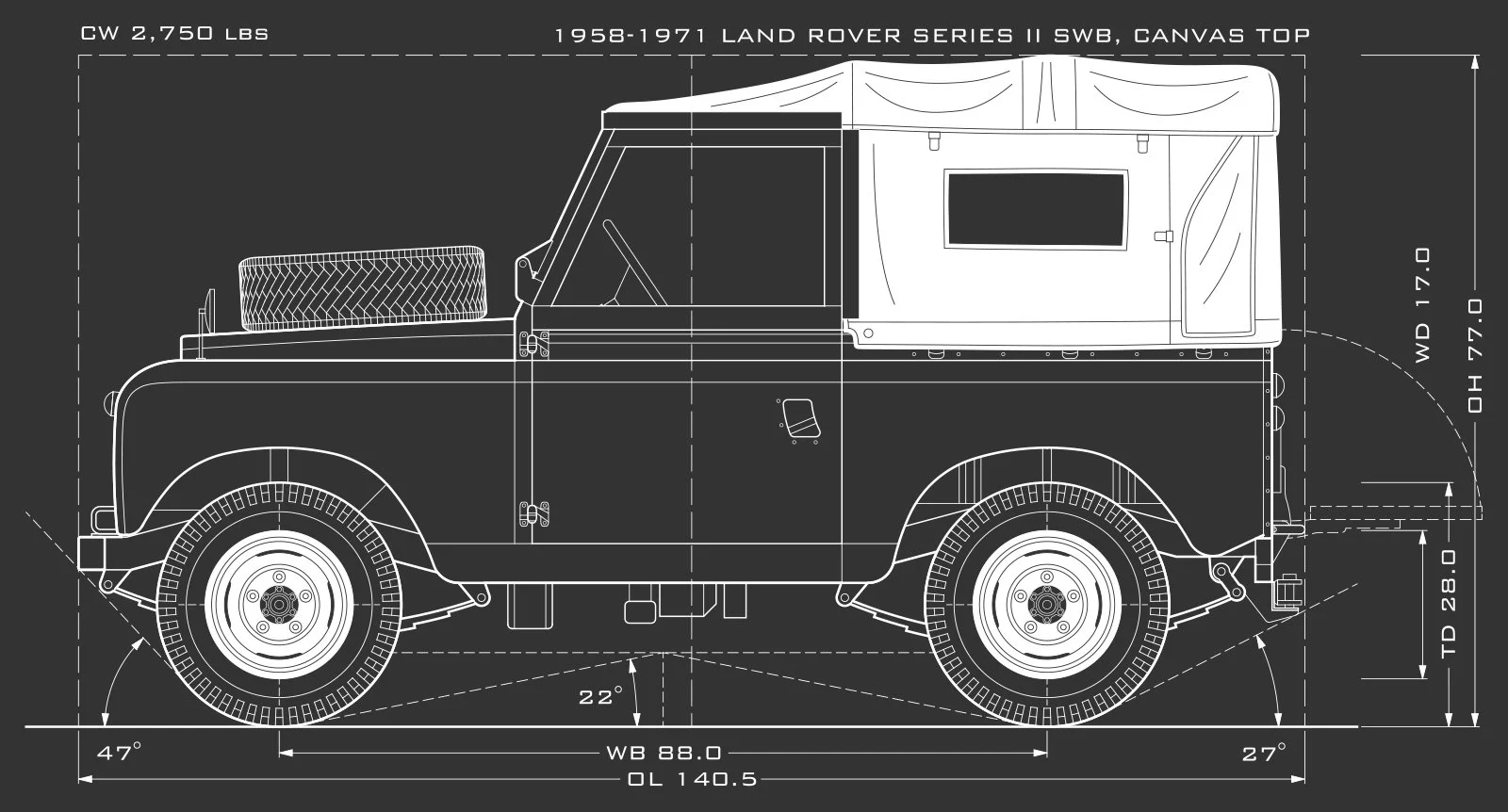

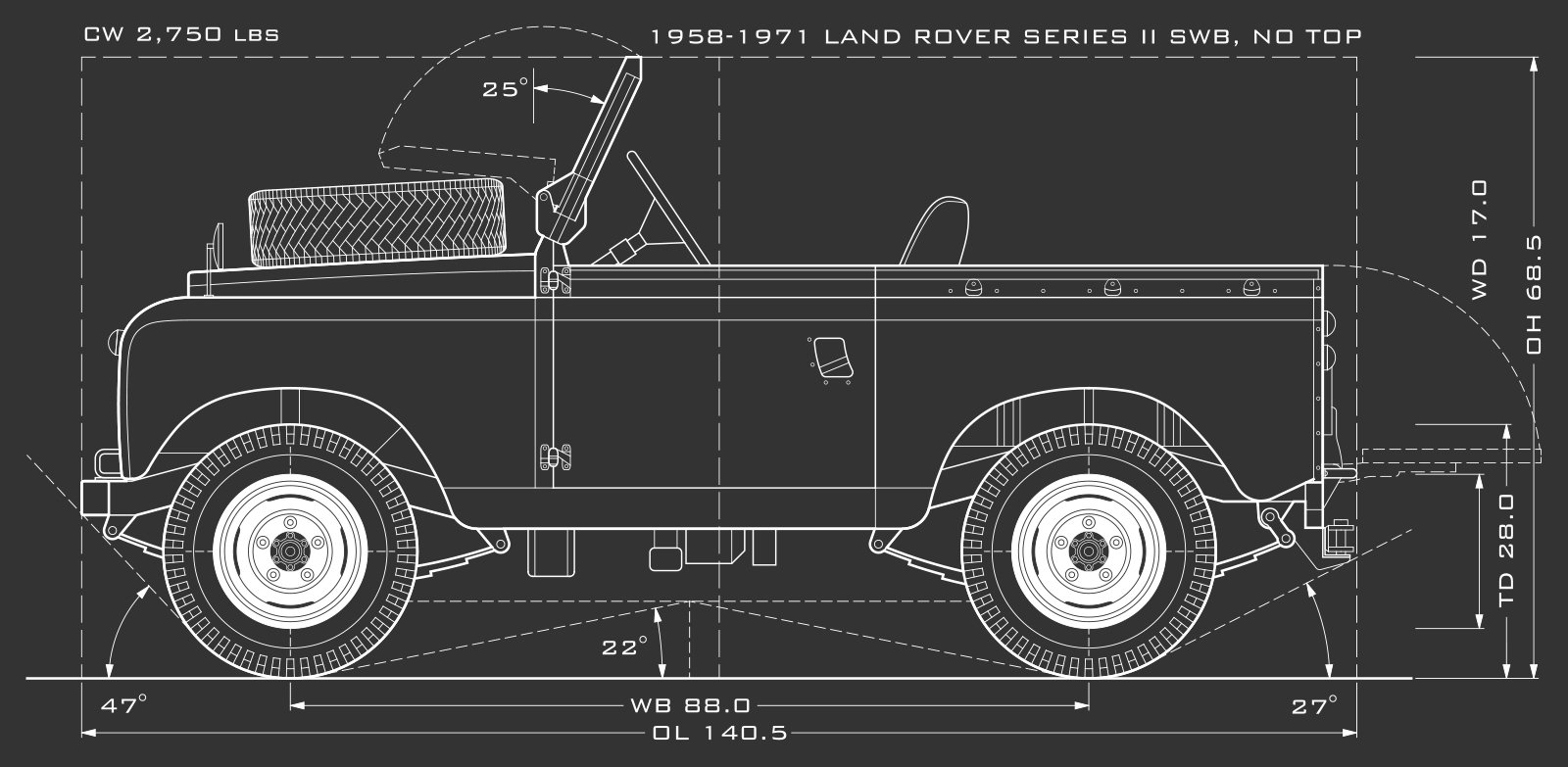

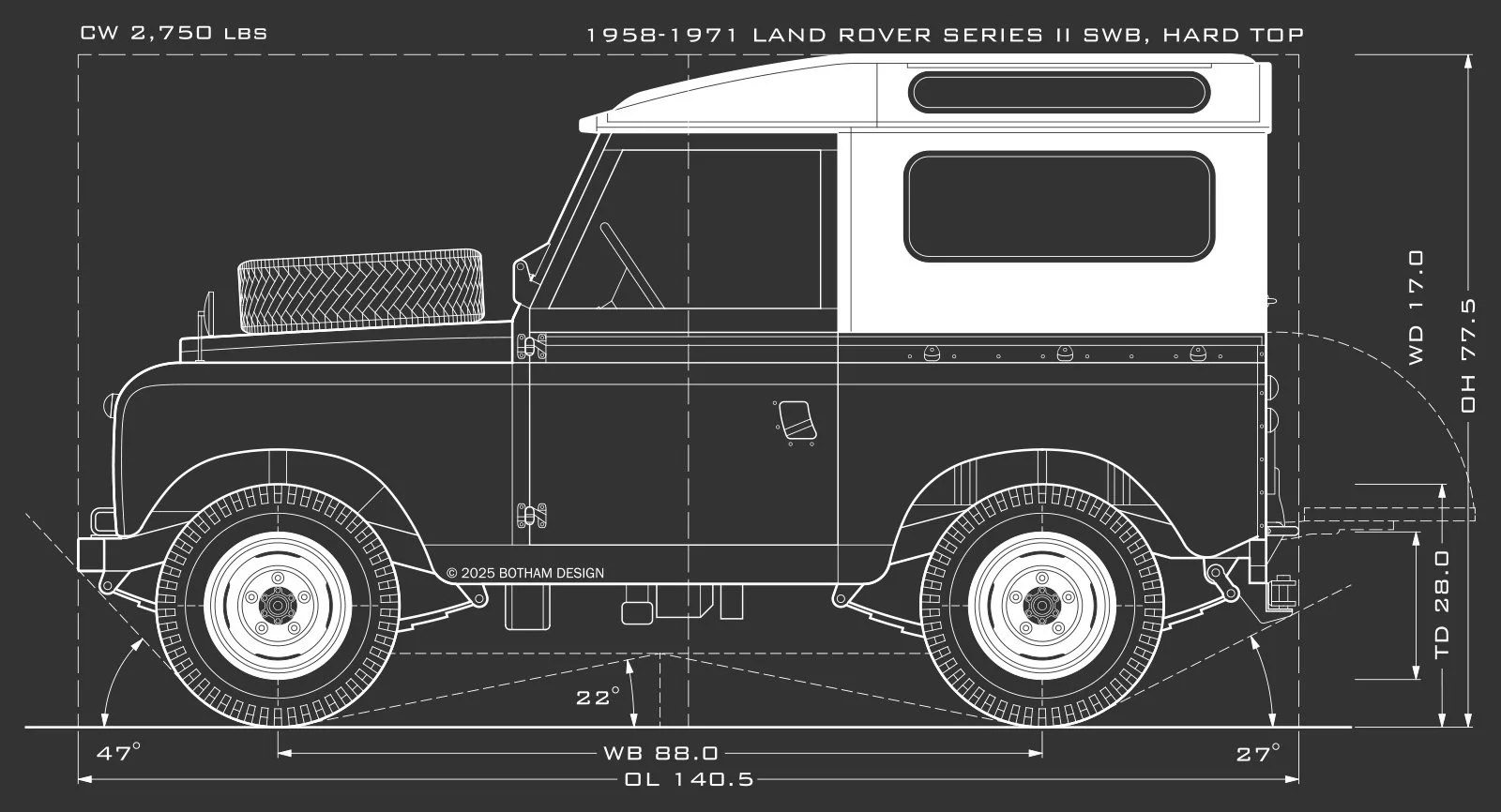

LAND ROVER SERIES II SPECS
MAIN SPECS
OVERALL LENGTH (OL): 140.5
OVERALL WIDTH (OW): 68.5
OVERALL HEIGHT (OH): 77.5
WHEELBASE (WB): 88.0
TRACK WIDTH (TR): 55.5
CURB WEIGHT (CW): 2,750 lbs
SPARE LOCATION: Spare on hood
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.5
APPROACH ANGLE (AA): 47°
BREAKOVER ANGLE (BA): 22°
DEPARTURE ANGLE (DA): 27°
SUSPENSION TYPE (SU): Leaf Spring Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
