LAND ROVER SERIES I

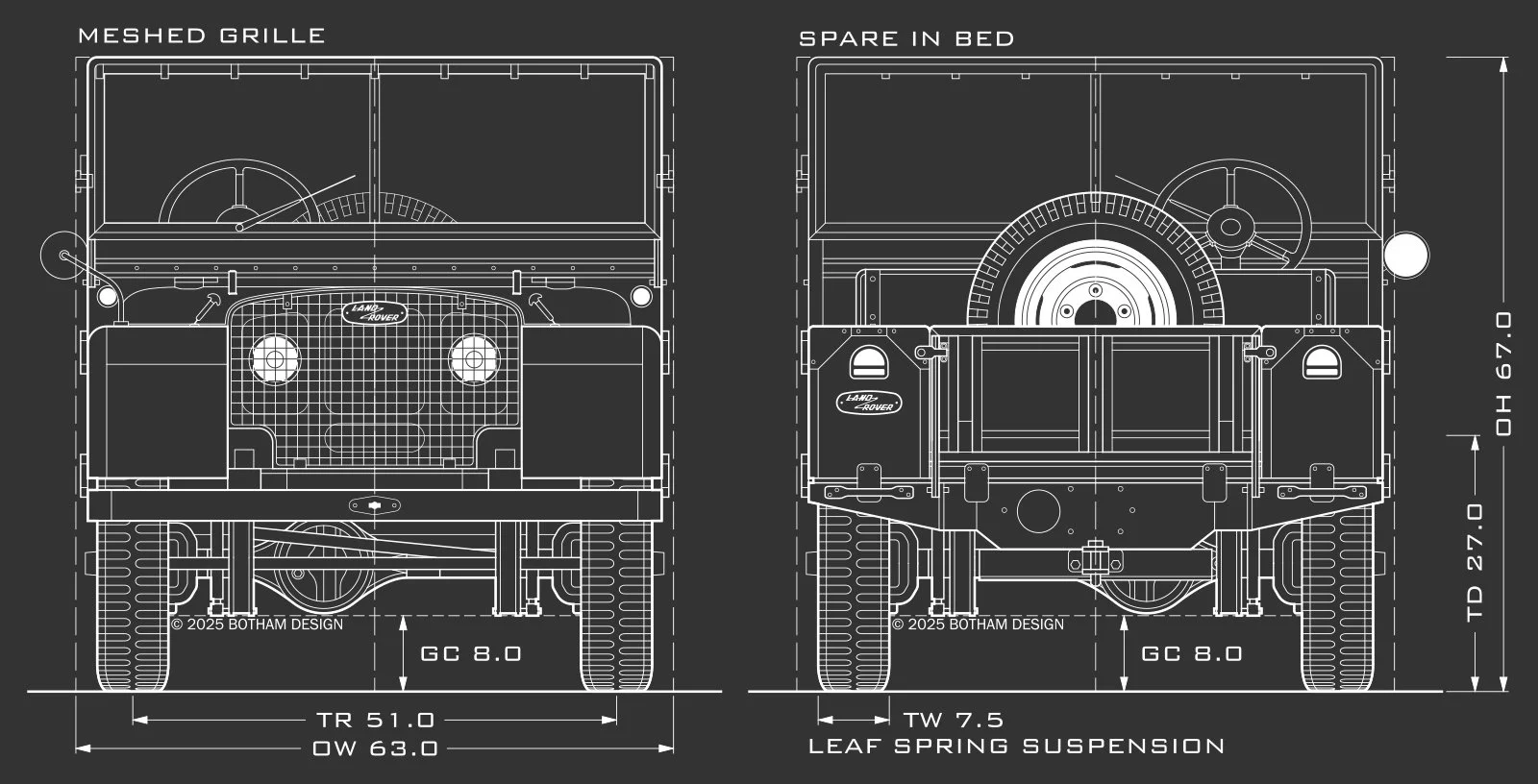

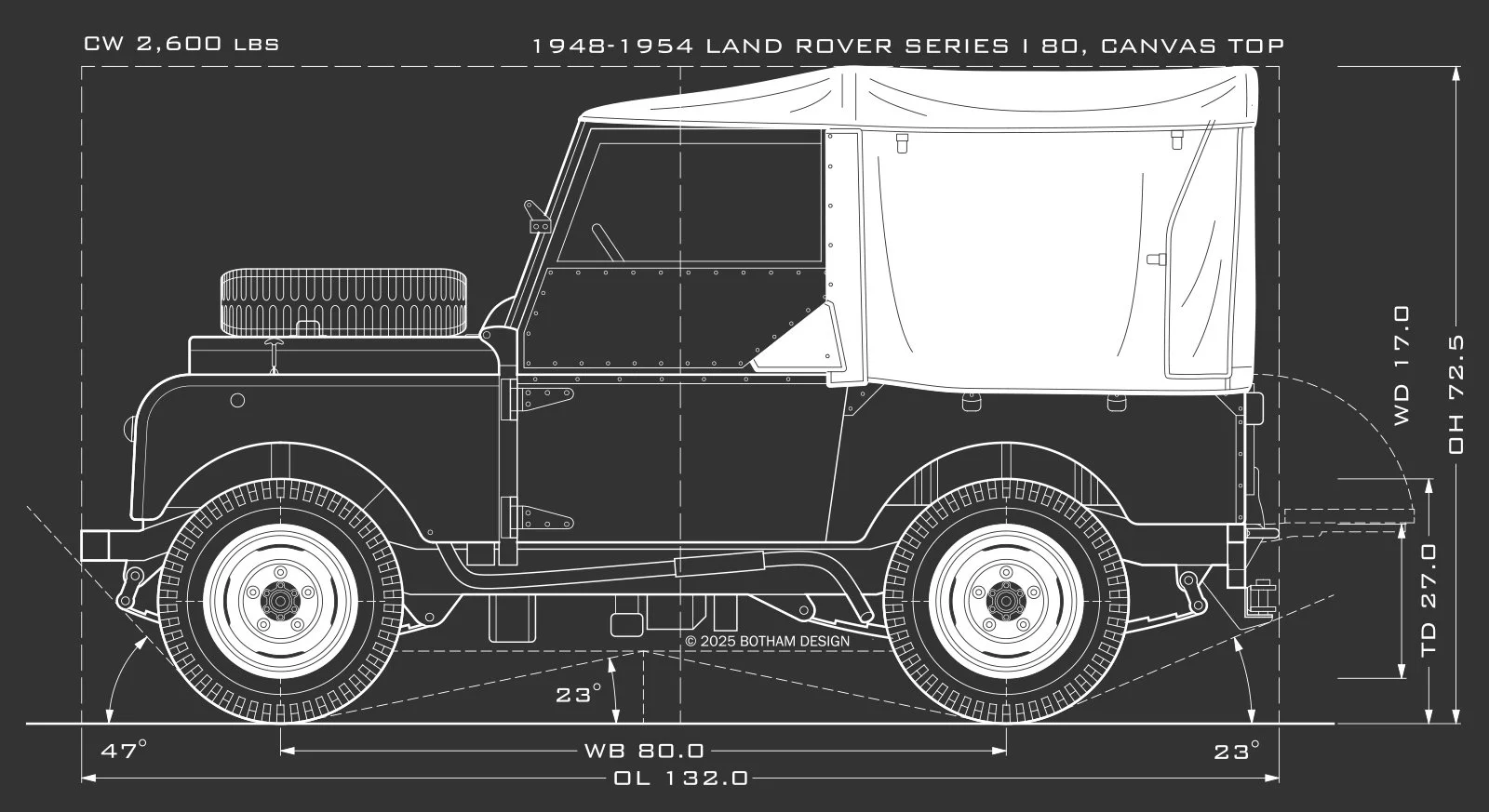

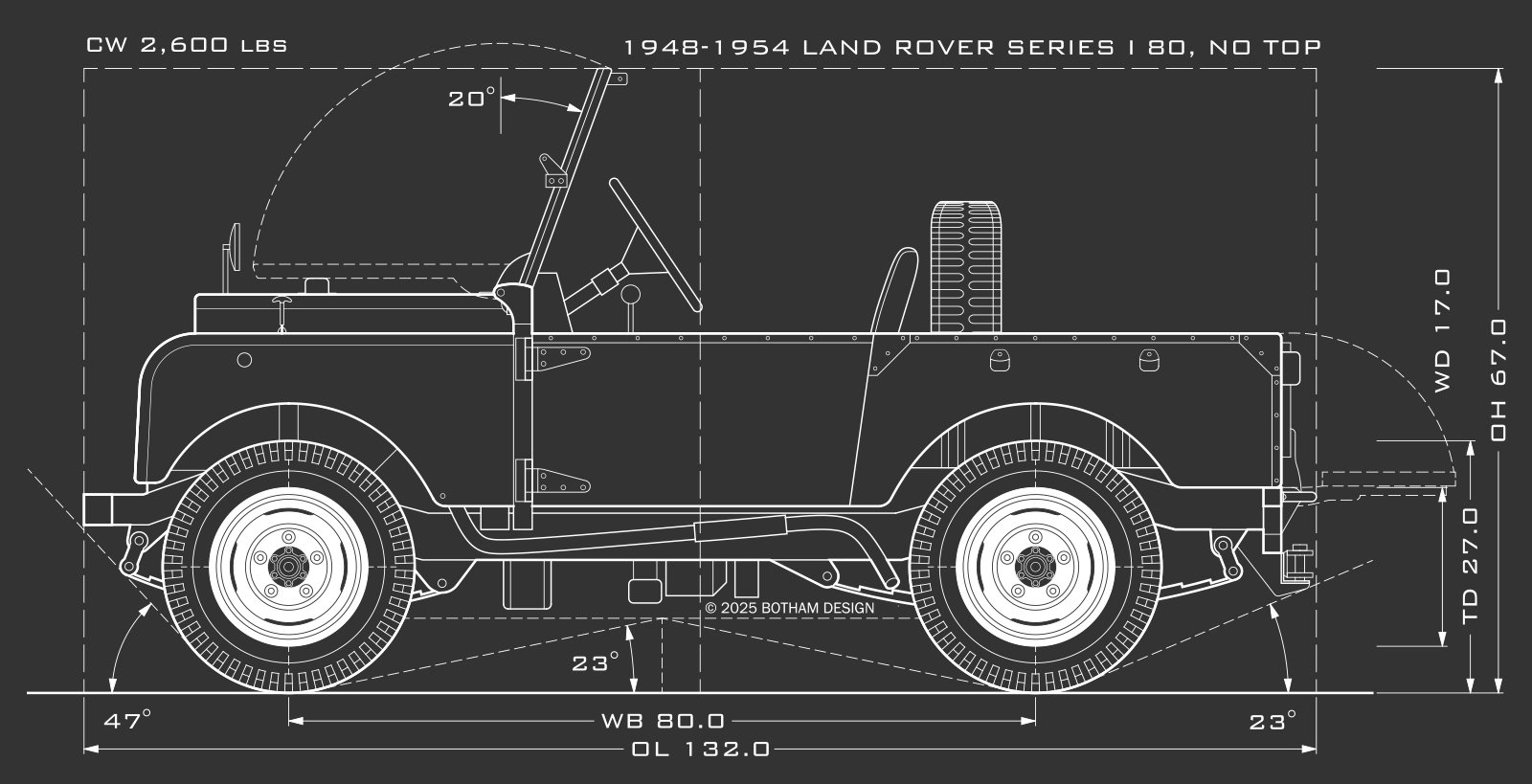

SERIES I 80 1948 - 1950

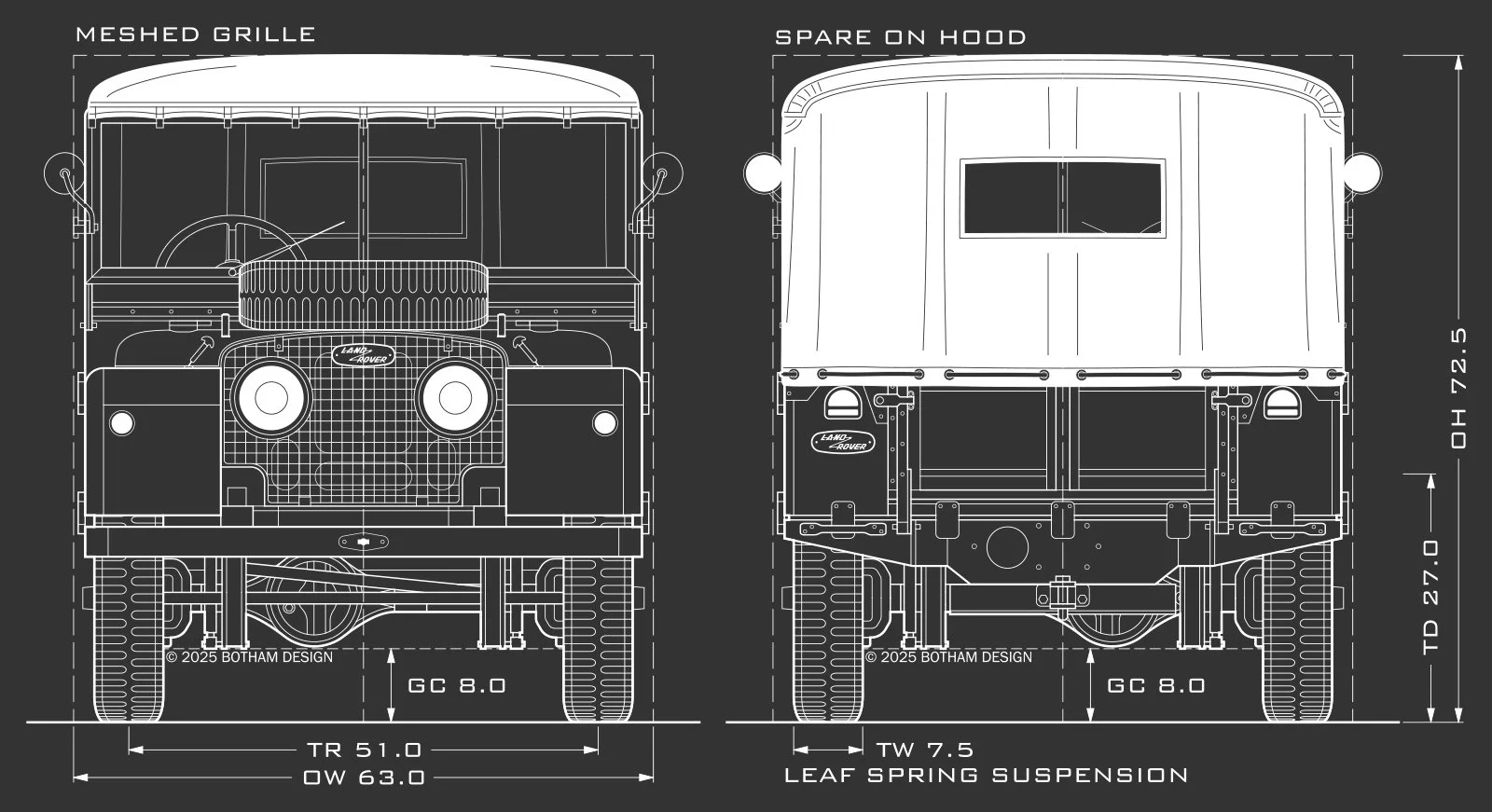

SERIES I 80 1950 - 1951

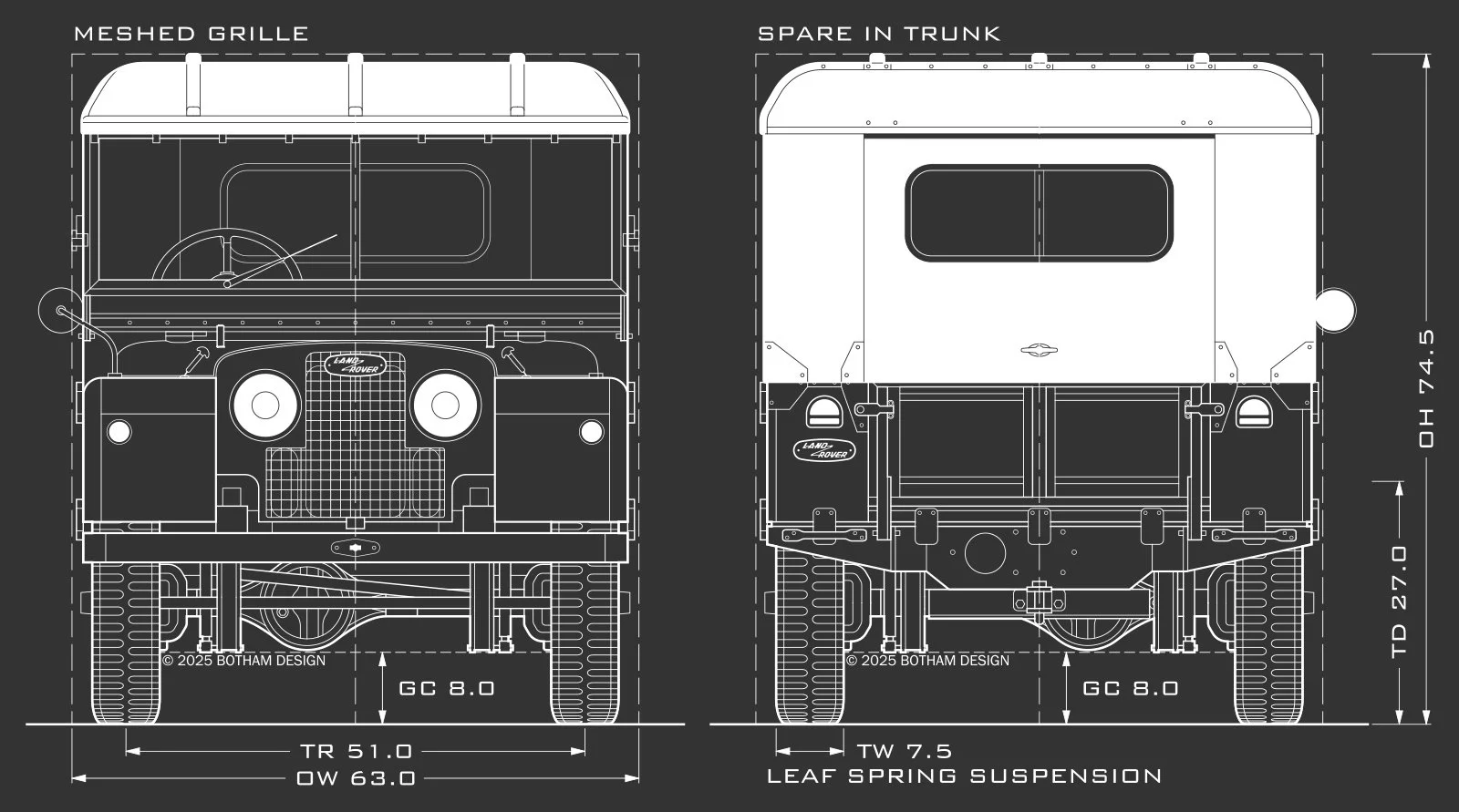

SERIES I 80 1951 - 1954

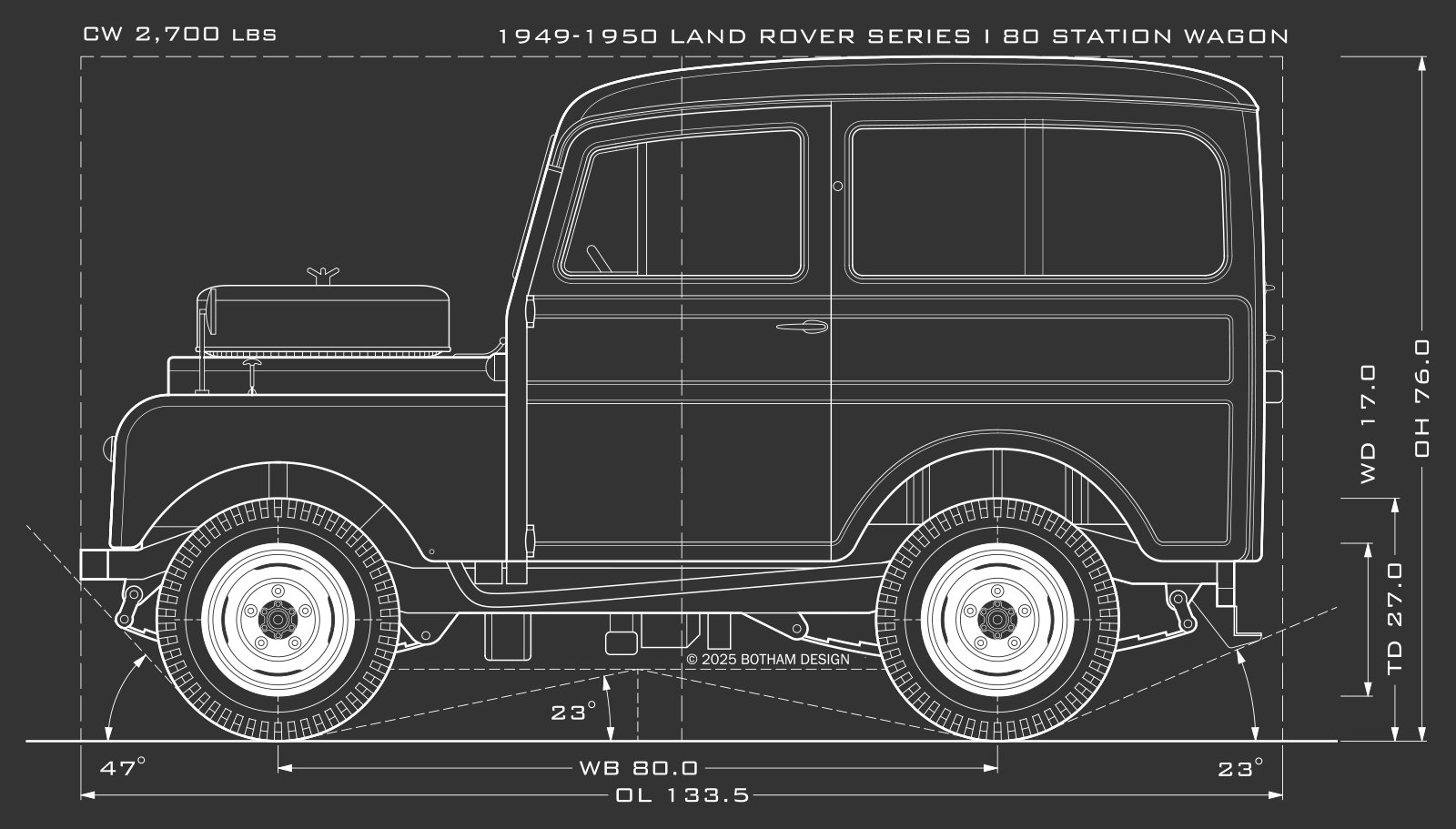

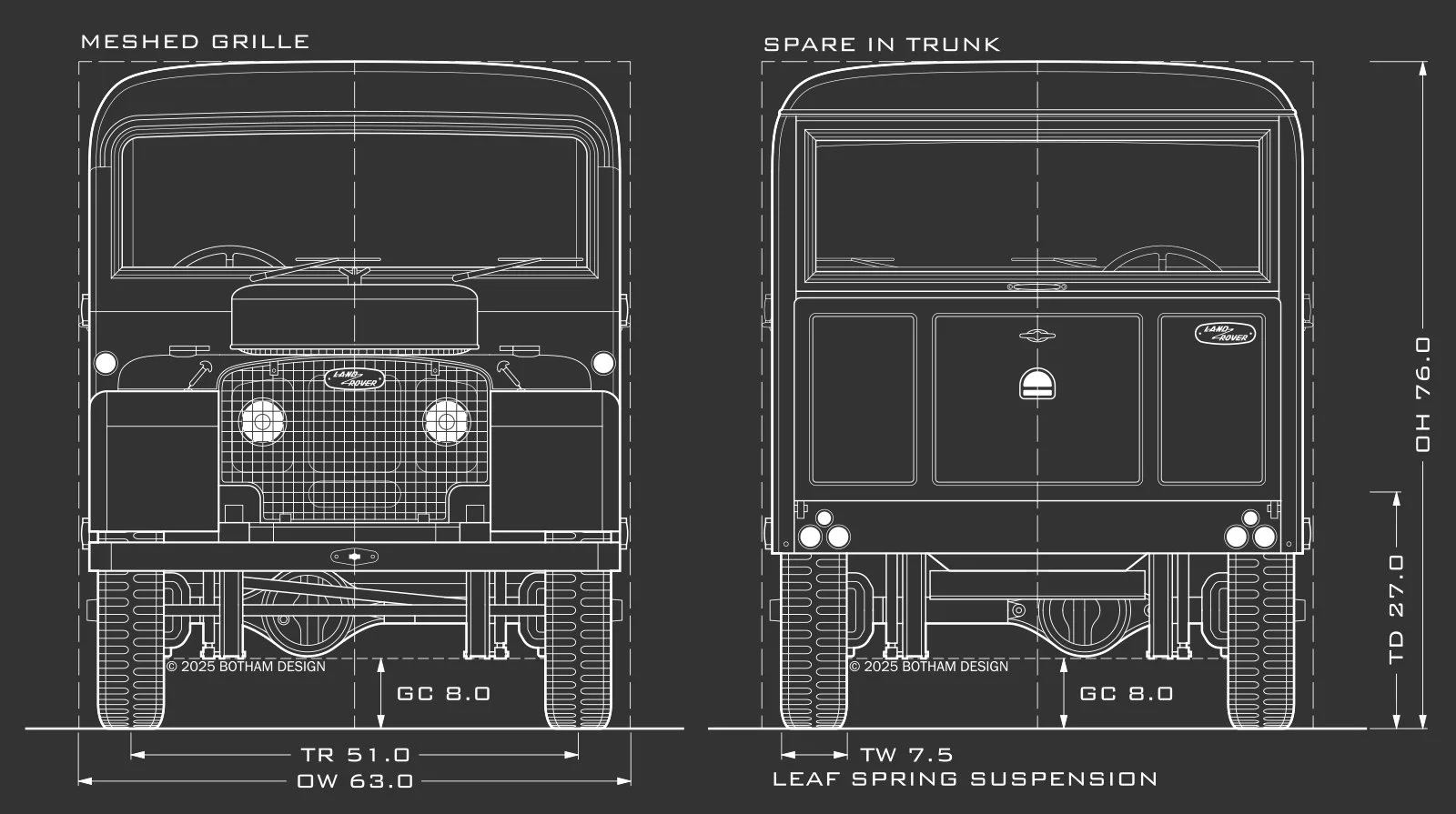

SERIES I 80 STATION WAGON 1949 - 1950

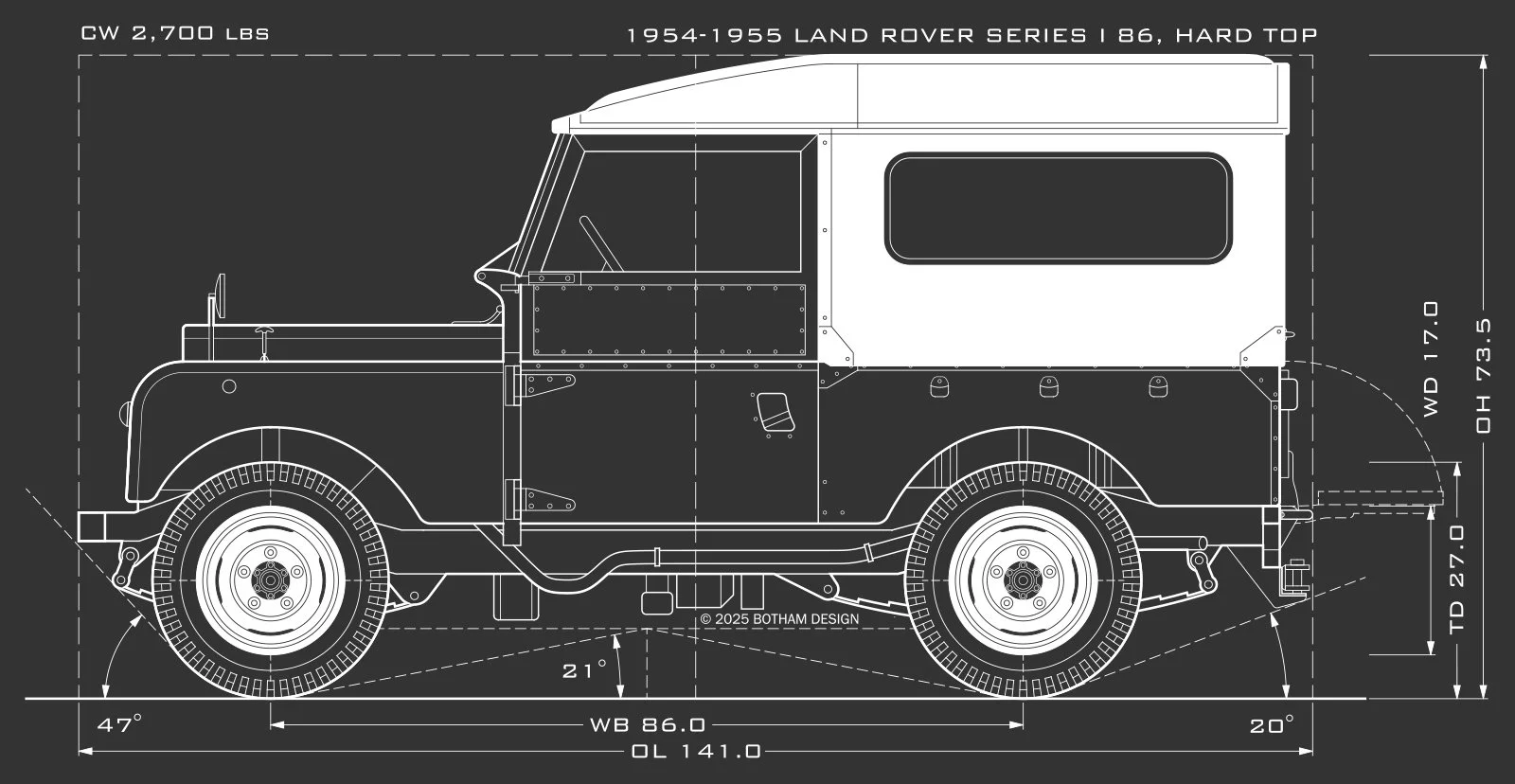

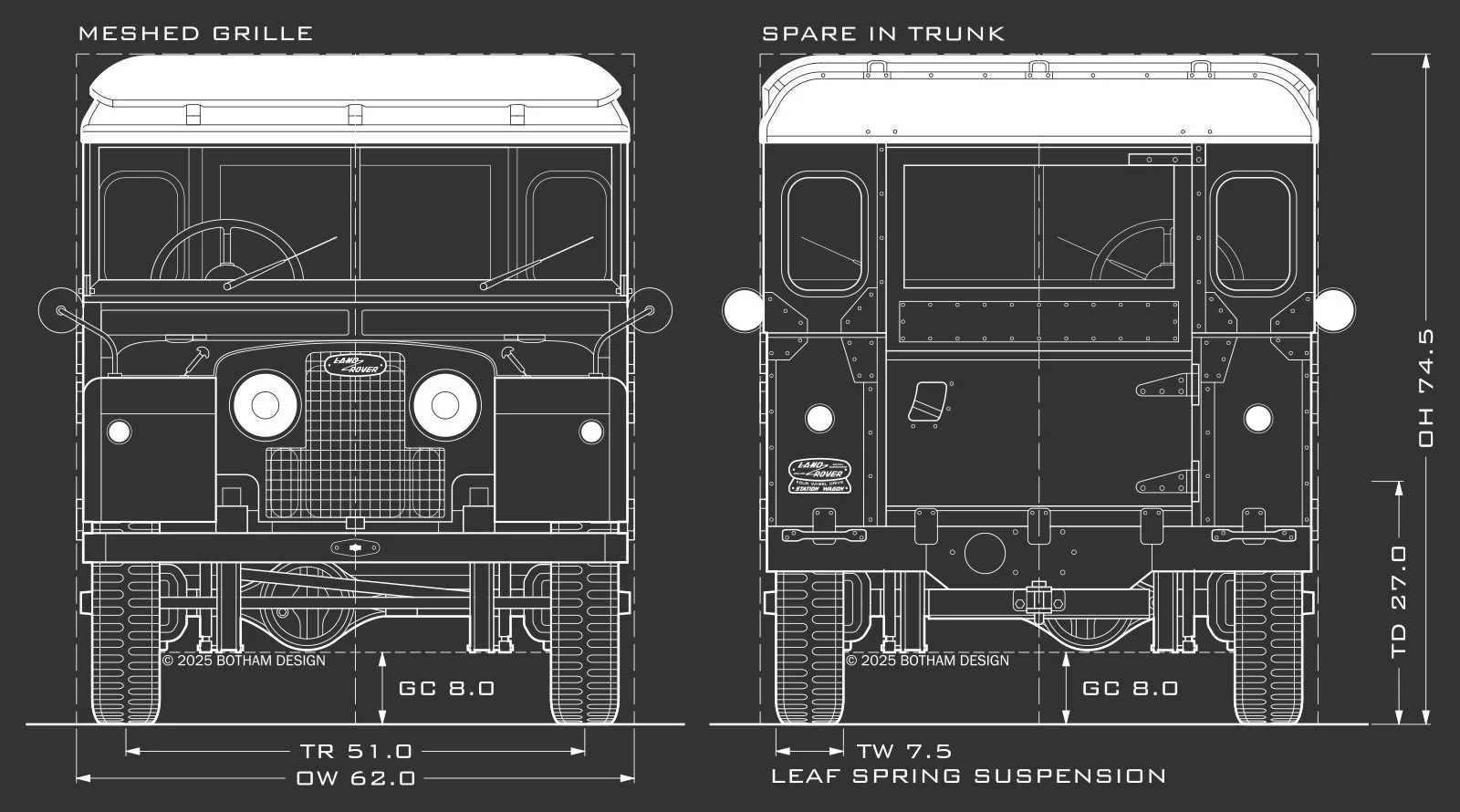

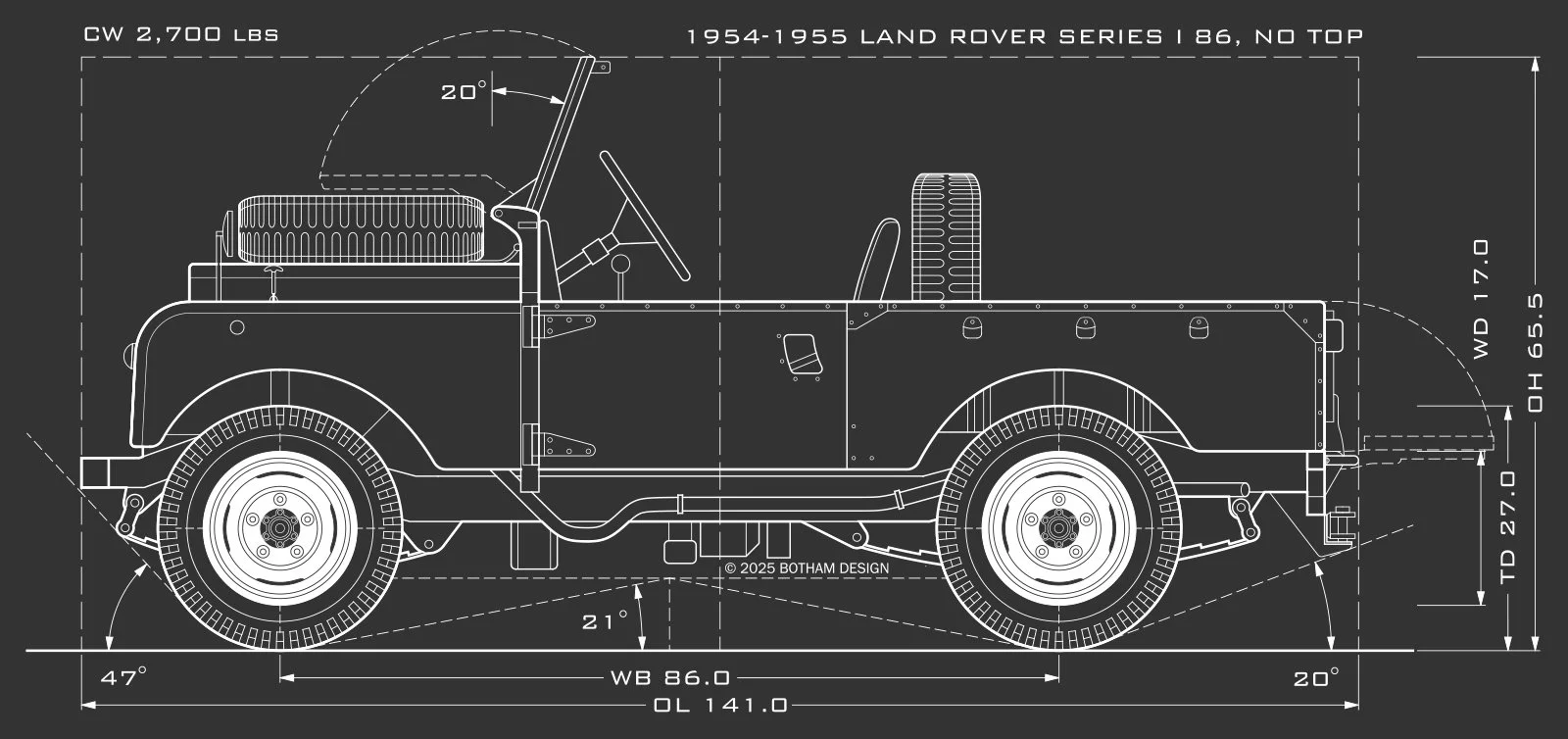

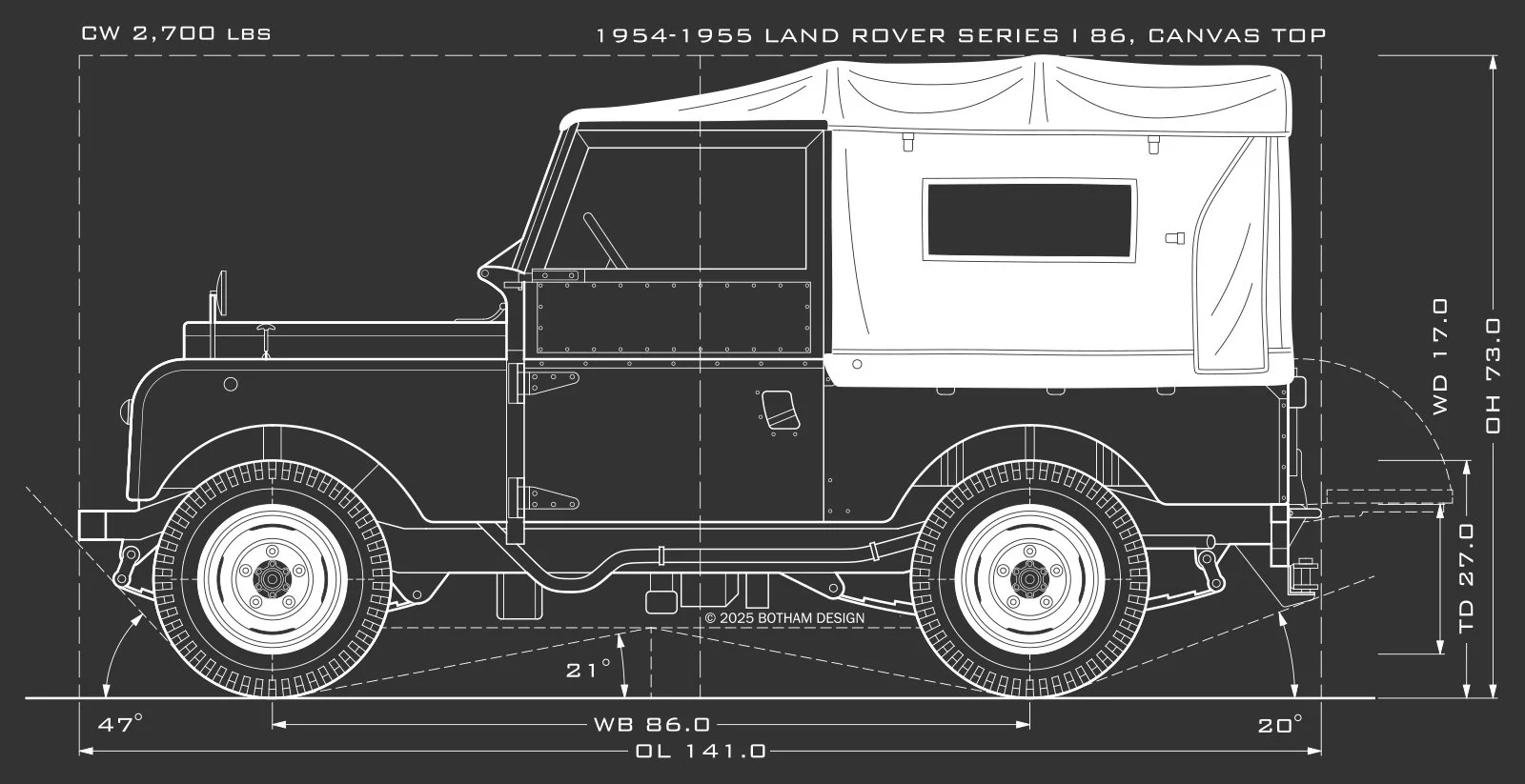

SERIES I 86 1954 - 1955

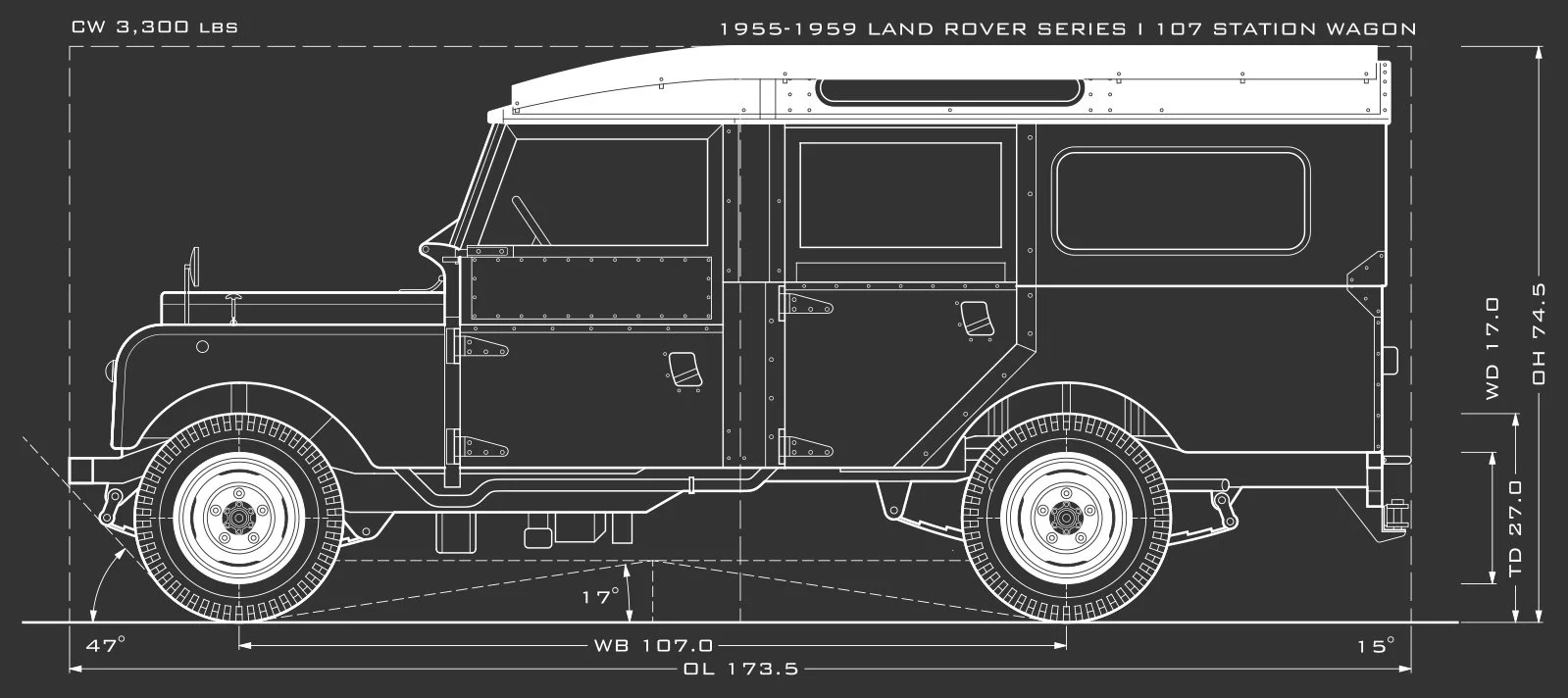

SERIES I 107 1954 - 1955

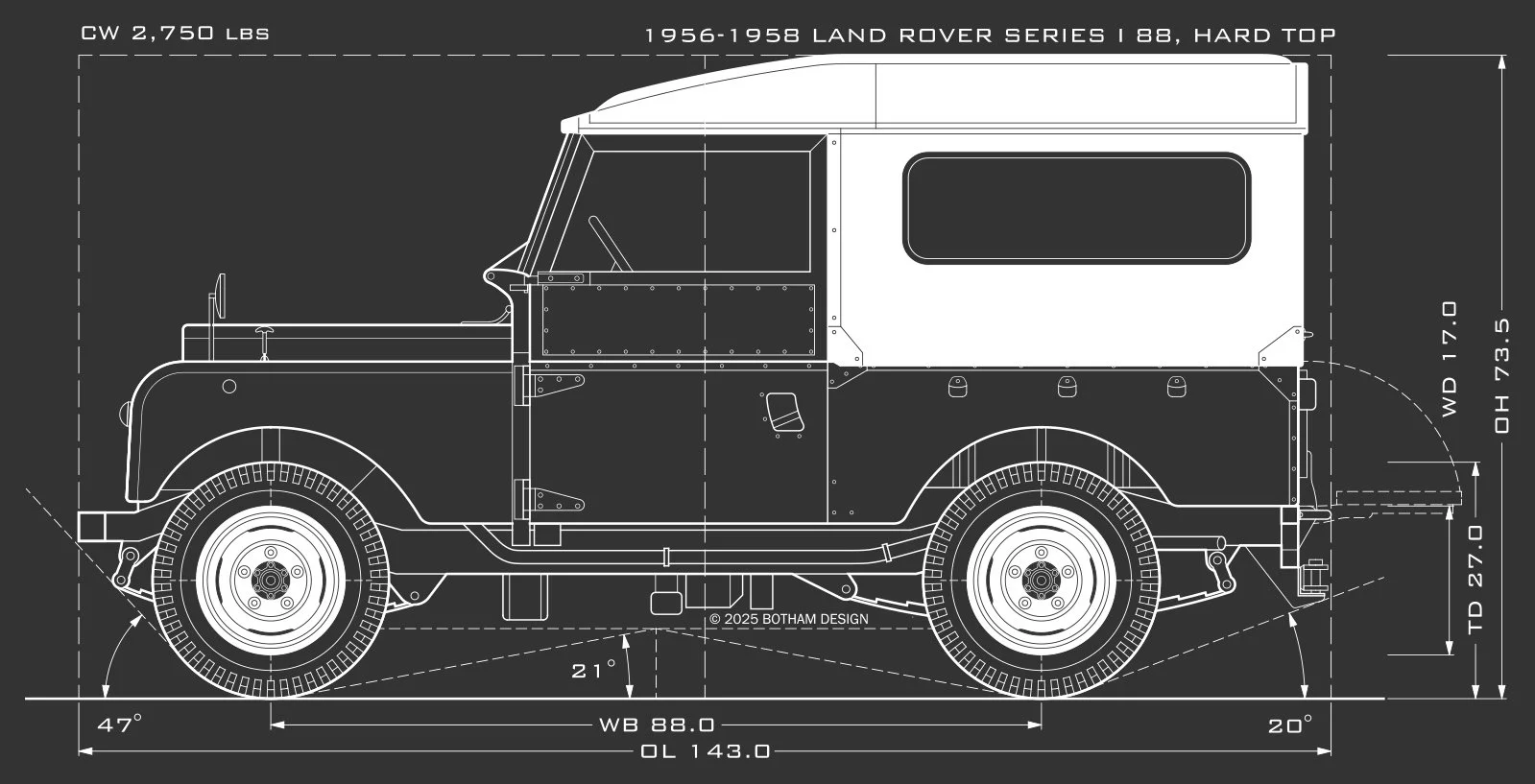

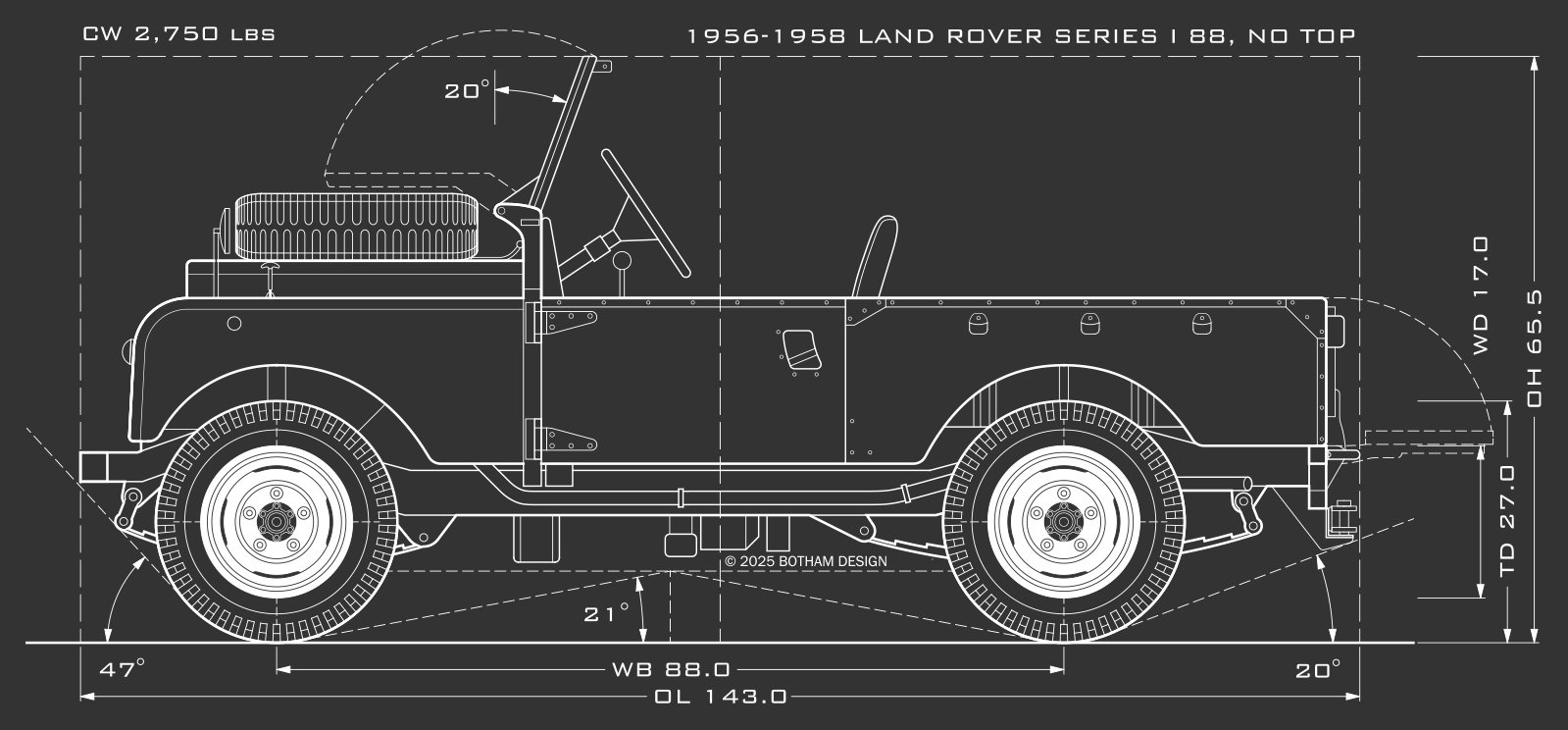

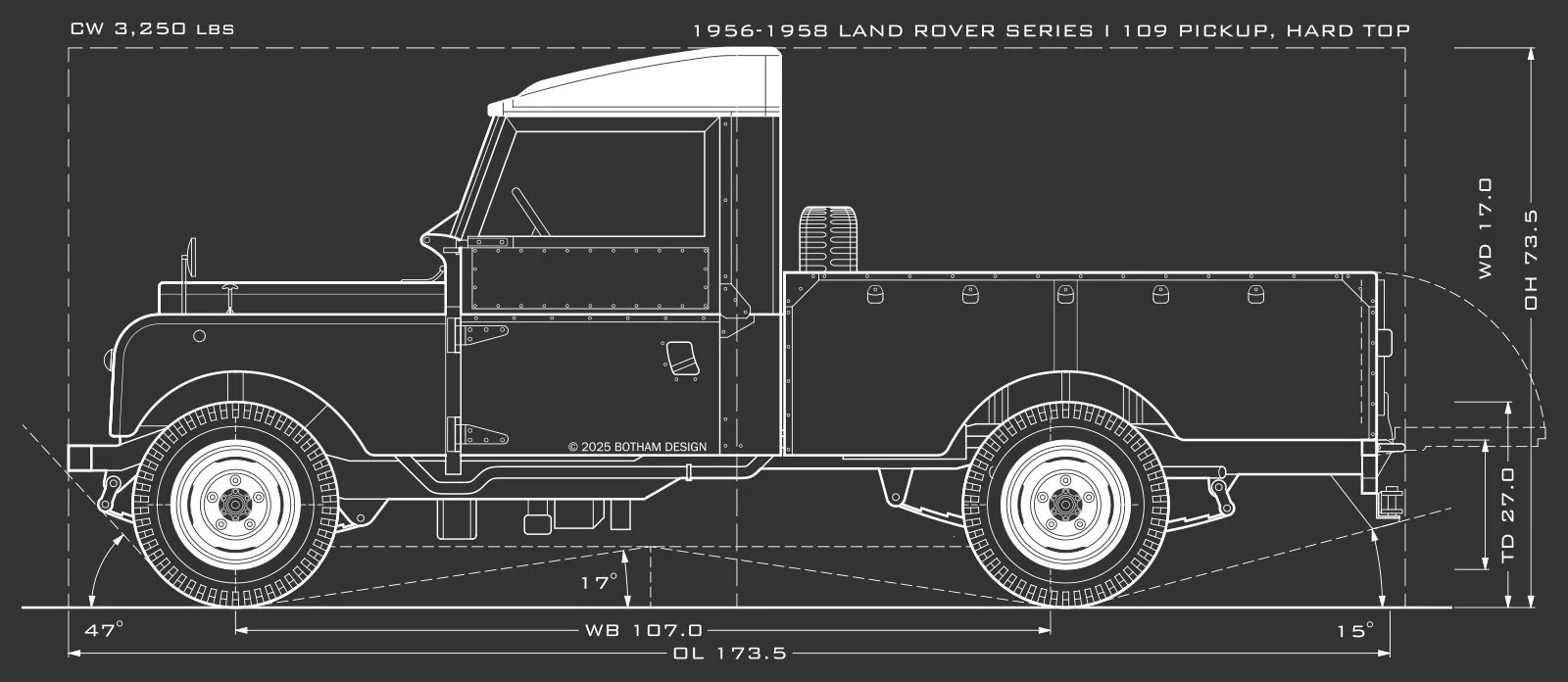

SERIES I 88/109 1956 - 1958
ASSEMBLY : Solihull, UK
UNITS PRODUCED : 248,000
PREDECESSOR : Centre Steer Prototype
SUCCESSOR : Land Rover Series II
The Series I was the first Land Rover model put into production. It was based on the HUE166 prototype, named for its license plate. It began as a single model with an 80-inch wheelbase, matching the original Willys Jeep. It was designed for light industrial uses and was strictly utilitarian. Eventually the wheelbase would lengthen and different body types would be offered, including pickup trucks and station wagons.
SPECS
LAND ROVER SERIES I SPECS
MAIN SPECS
OVERALL LENGTH (OL): 132.0
OVERALL WIDTH (OW): 63.0
OVERALL HEIGHT (OH): 67.0
WHEELBASE (WB): 80.0
TRACK WIDTH (TR): 51.0
CURB WEIGHT (CW): 2,600 lbs
SPARE LOCATION: Spare in Trunk
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.0
APPROACH ANGLE (AA): 47°
BREAKOVER ANGLE (BA): 23°
DEPARTURE ANGLE (DA): 23°
SUSPENSION TYPE (SU): Leaf Spring Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
