FORD BRONCO FIRST-GEN
BRONCO 1966-1977
ASSEMBLY : Wayne, MI, USA
UNITS PRODUCED : 225,500
PREDECESSOR : None
SUCCESSOR : Ford Bronco Second-Gen

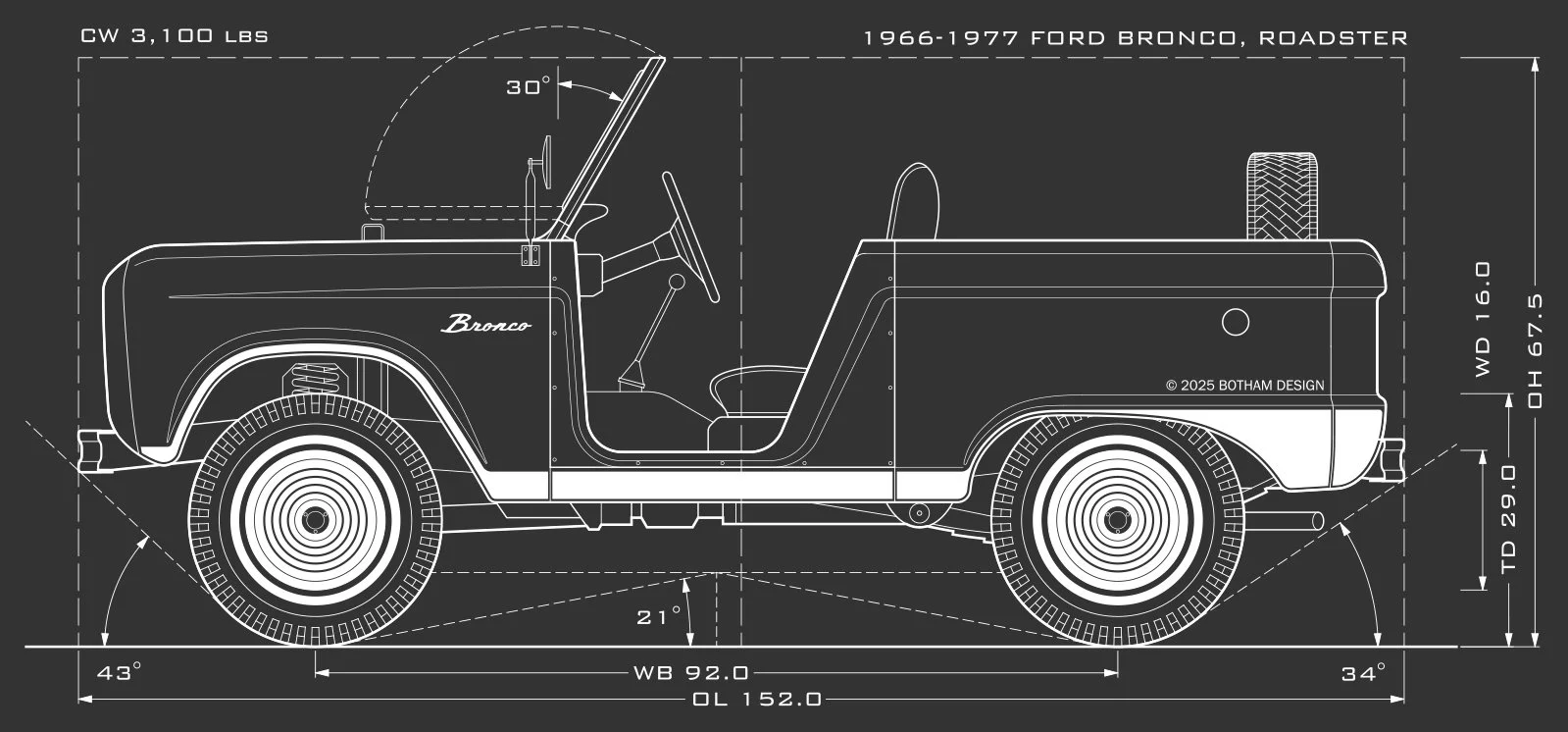

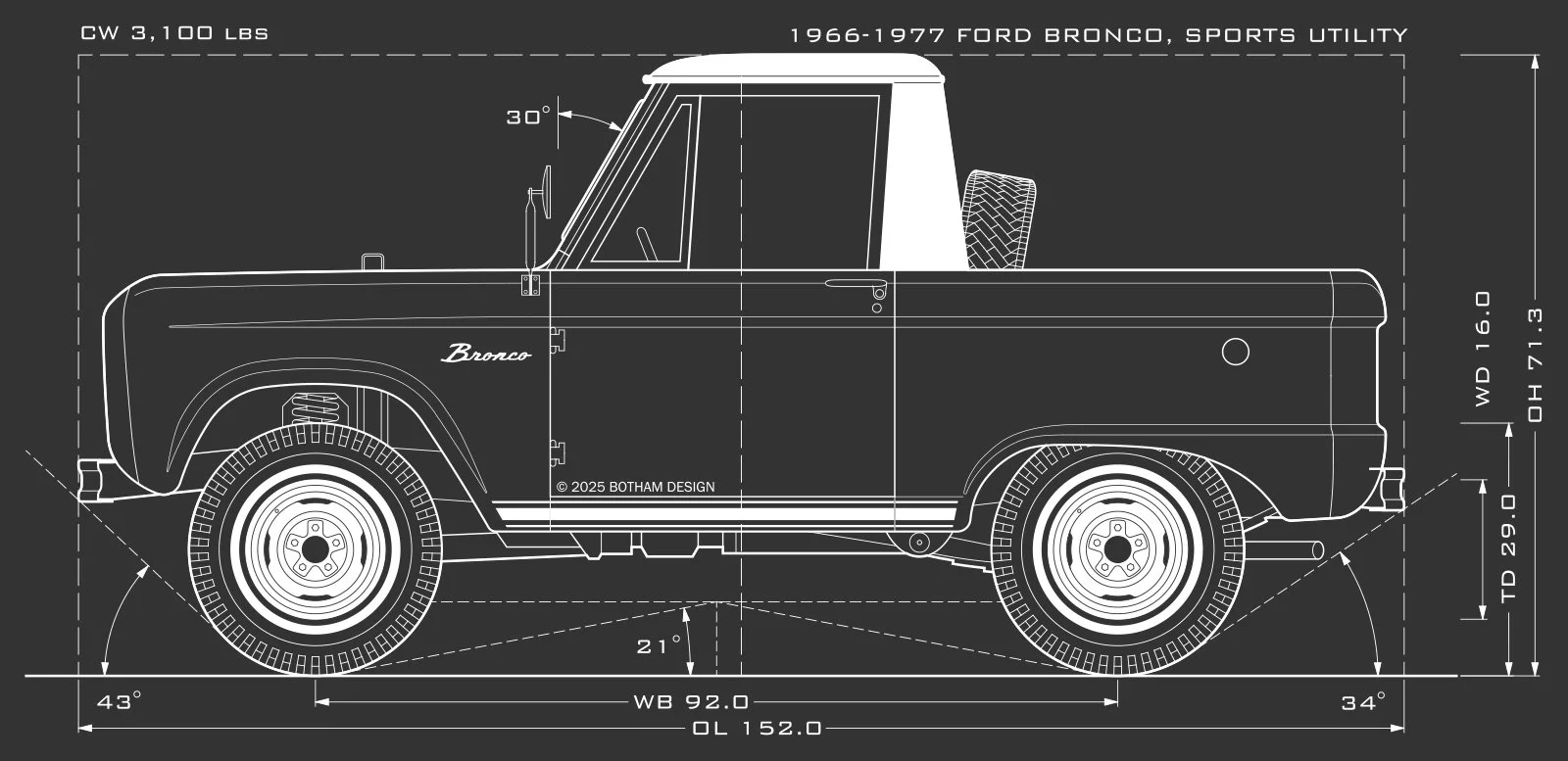

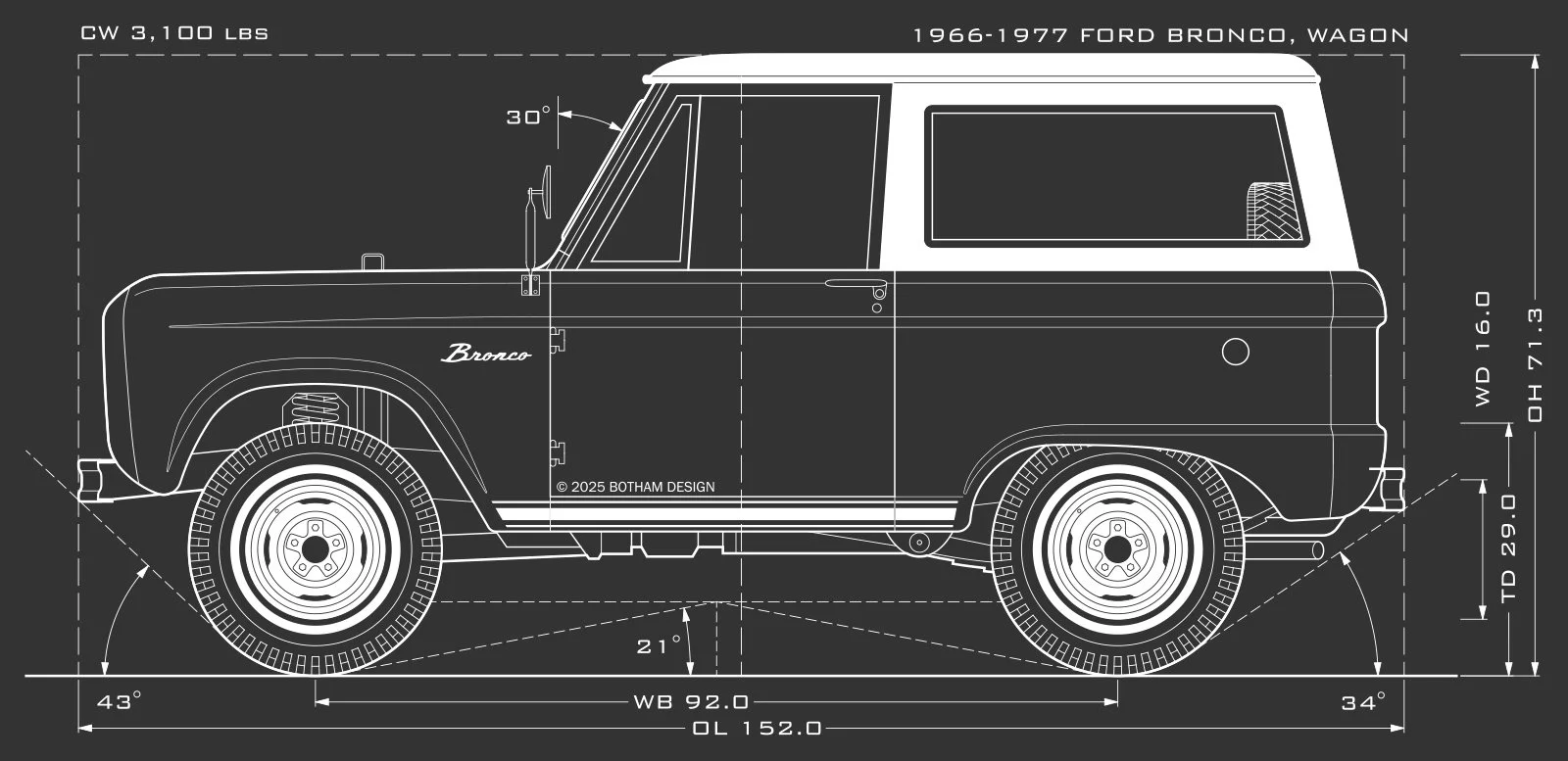

The first-generation Ford Bronco was designed as a competitor to the Jeep CJ-5 and the Toyota Land Cruiser. It was marketed as a civilian off-roader, and was one of the first examples of a 'Sports Utility' vehicle. It featured body-on-frame construction and four-wheel-drive was standard. It was available in multiple body types including the Wagon, the Sports Utility (with a pickup-style bed) and the Roadster (no top or doors). The Bronco sold well, and it's still in production today with the sixth-generation model, introduced in 2021.
SPECS
FORD BRONCO FIRST-GEN SPECS
MAIN SPECS
OVERALL LENGTH (OL): 152.0
OVERALL WIDTH (OW): 65.5
OVERALL HEIGHT (OH): 71.3
WHEELBASE (WB): 92.0
TRACK WIDTH (TR): 57.0
CURB WEIGHT (CW): 3,100 lbs
SPARE LOCATION: Spare in Truck
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.5
APPROACH ANGLE (AA): 43°
BREAKOVER ANGLE (BA): 21°
DEPARTURE ANGLE (DA): 34°

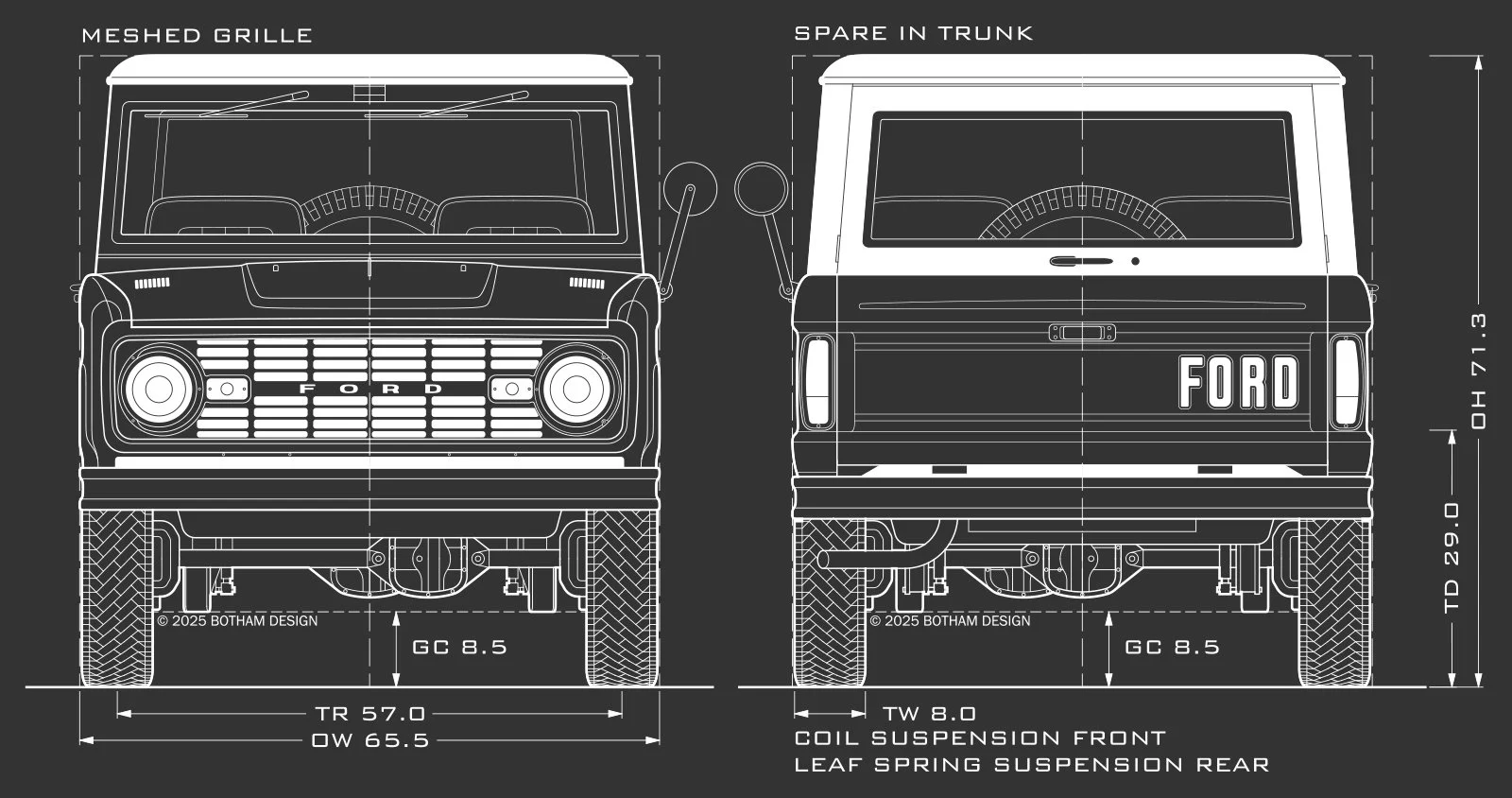

SUSPENSION TYPE (SU): Coil Suspension Front, Leaf-Spring Suspension Rear
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
