JL WRANGLER
JL SPORT / WILLYS 2018 - 2024
JL RUBICON 2018 - 2024
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: Unknown
PREDECESSOR : JK Wrangler
SUCCESSOR : None
SUB-MODEL : JLU Wrangler, JT Gladiator
The JL Wrangler is the fourth-generation wrangler model. It is similar to the JK Wrangler before it, with updated creature comforts and a more streamlined design. The JL features a raked front grille and is available in a 2-door (JL) and 4-door Unlimited (JLU) models. The JLU is also the first Wrangler available as a hybrid, dubbed the ‘4xe’.
GRILLE
WHEELS
BADGING
Jeep Medallion : Fenderside
JT Wrangler Decal : Fenderside
JT Wrangler Sport Decal : Fenderside
Trail Rated Medallion : Fenderside
Willys Decal : Hoodside
Willys Decal : Hoodside
Rubicon Decal : Hoodside
SPECS
JL WRANGLER SPECS
MAIN SPECS
OVERALL LENGTH (OL): 166.5
OVERALL WIDTH (OW): 73.8
OVERALL HEIGHT (OH), HARD TOP: 74.0
OVERALL HEIGHT (OH), SOFT TOP: 75.5
OVERALL HEIGHT (OH), OPEN BODY: 72.5
WHEELBASE (WB): 96.8
TRACK WIDTH (TR): 63.3
CURB WEIGHT (CW): 4,330 lbs
WINDSHIELD ANGLE (WA): 35°
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.8
APPROACH ANGLE (AA): 39°
BREAKOVER ANGLE (BA): 22°
DEPARTURE ANGLE (DA): 30°
SUSPENSION TYPE (SU): Coil Spring
All specifications refer to original stock version of base model
All dimensions shown in inches

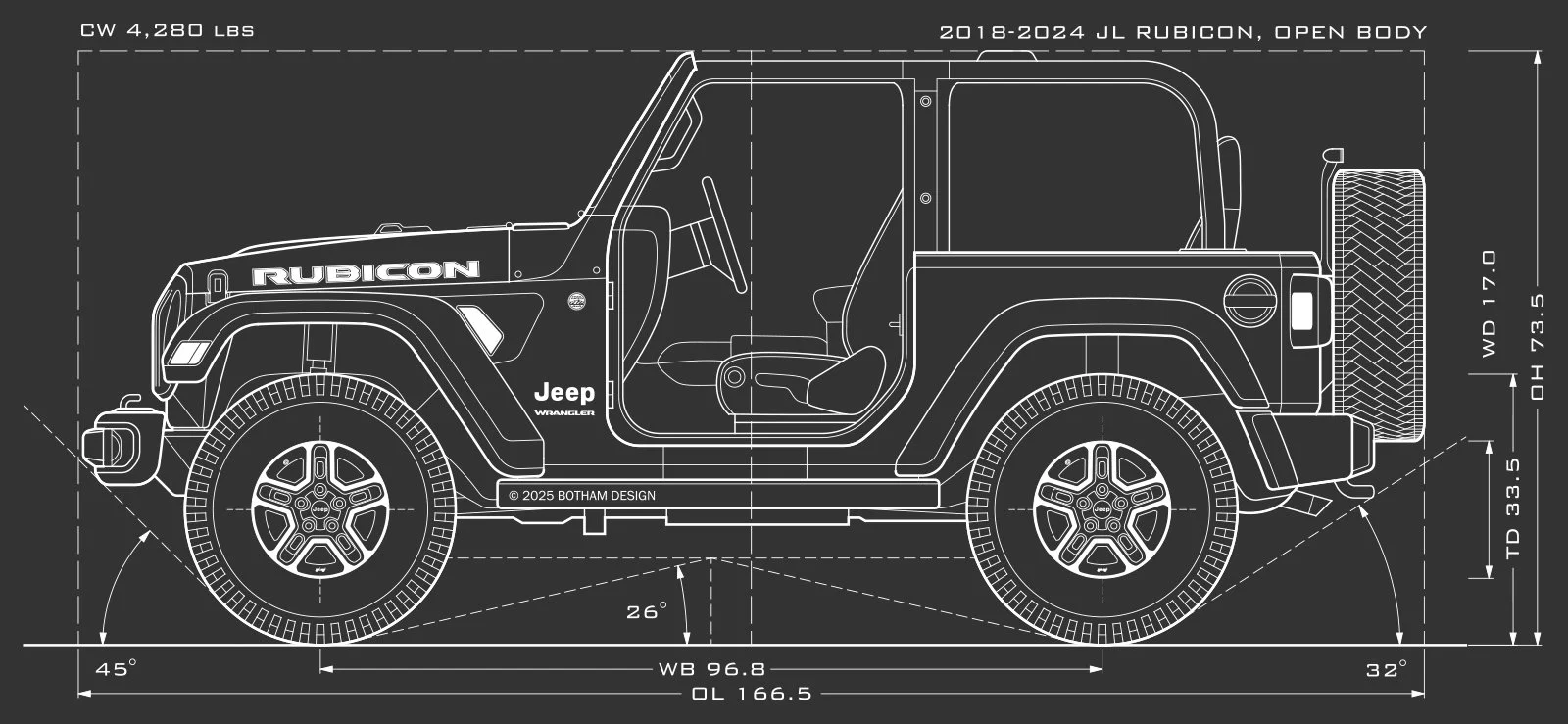

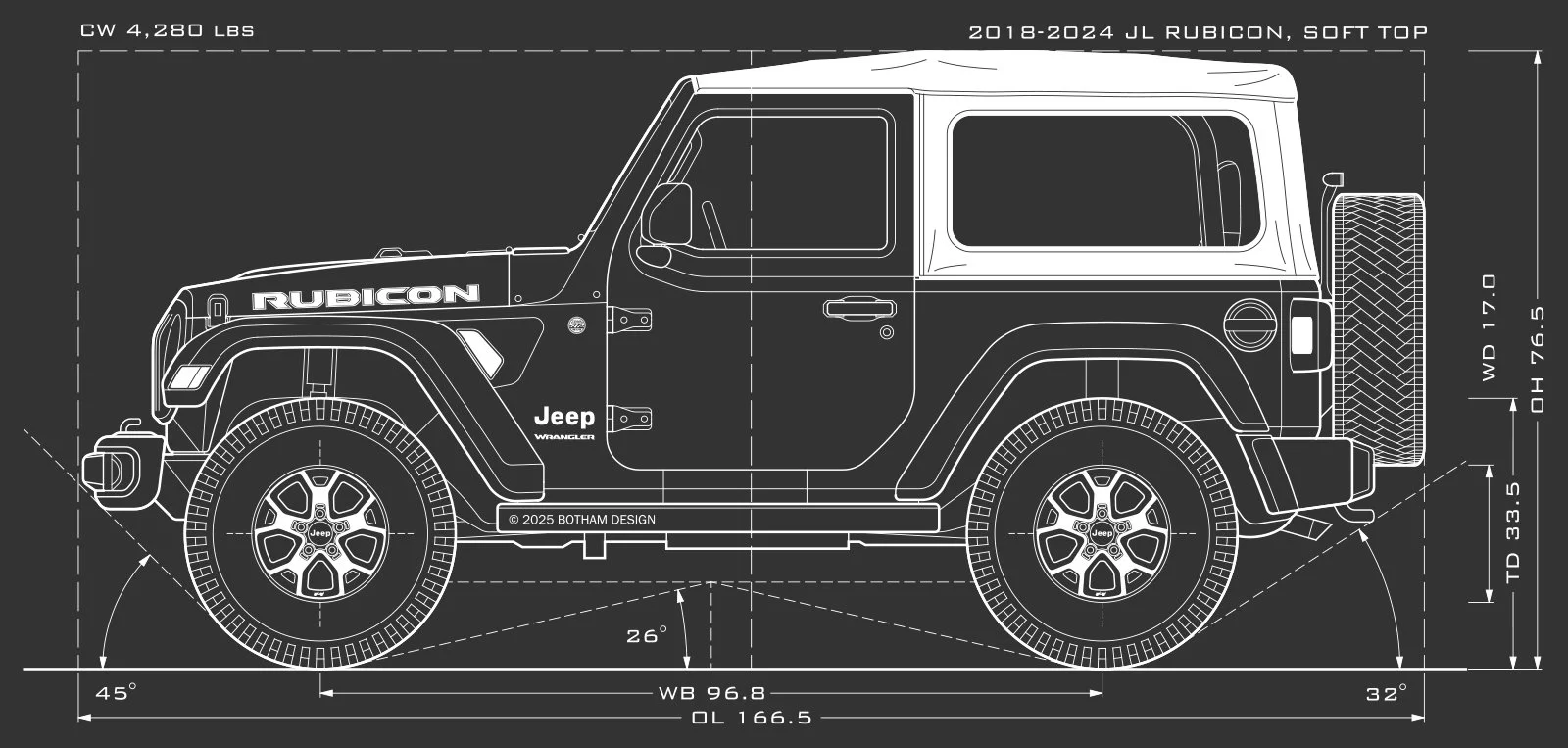

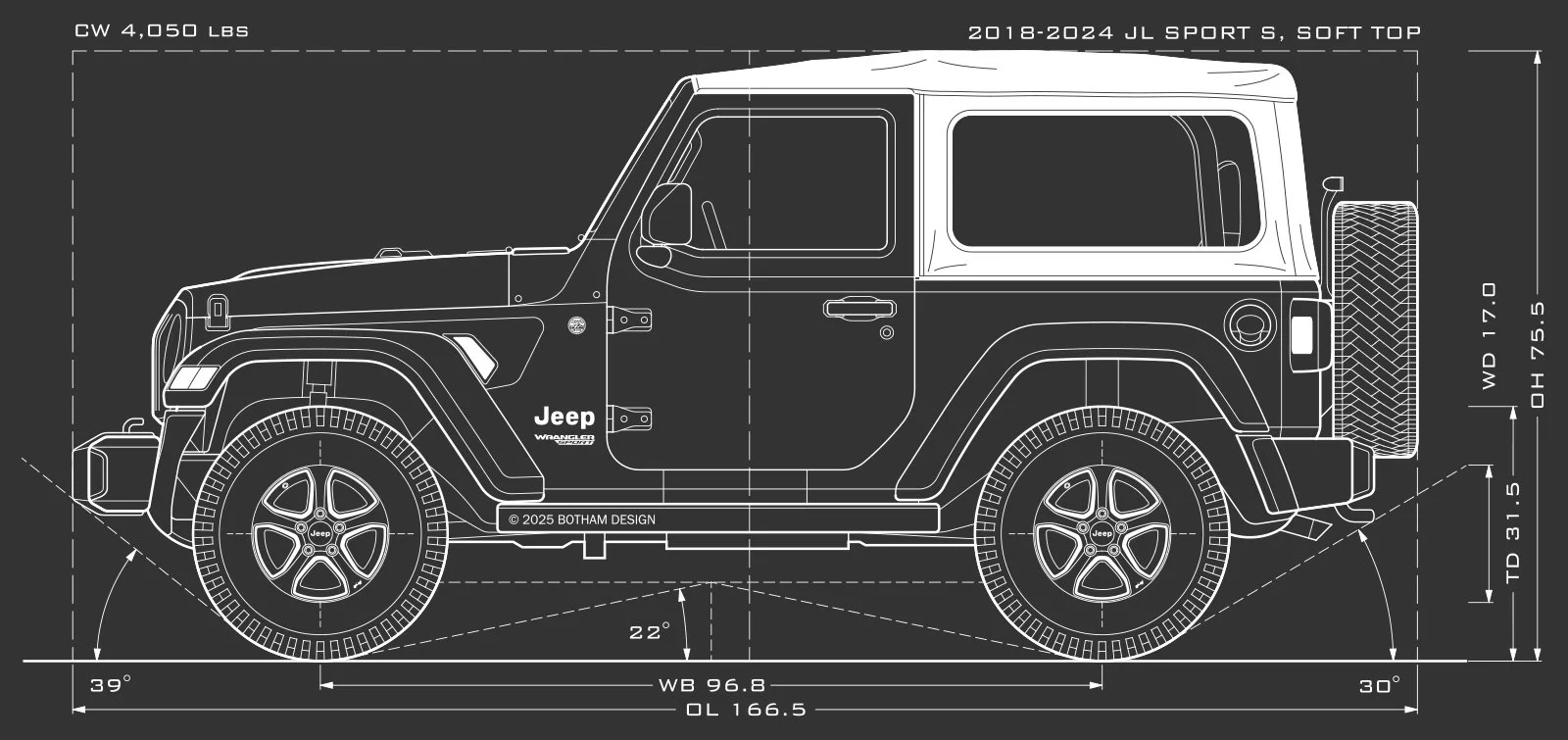

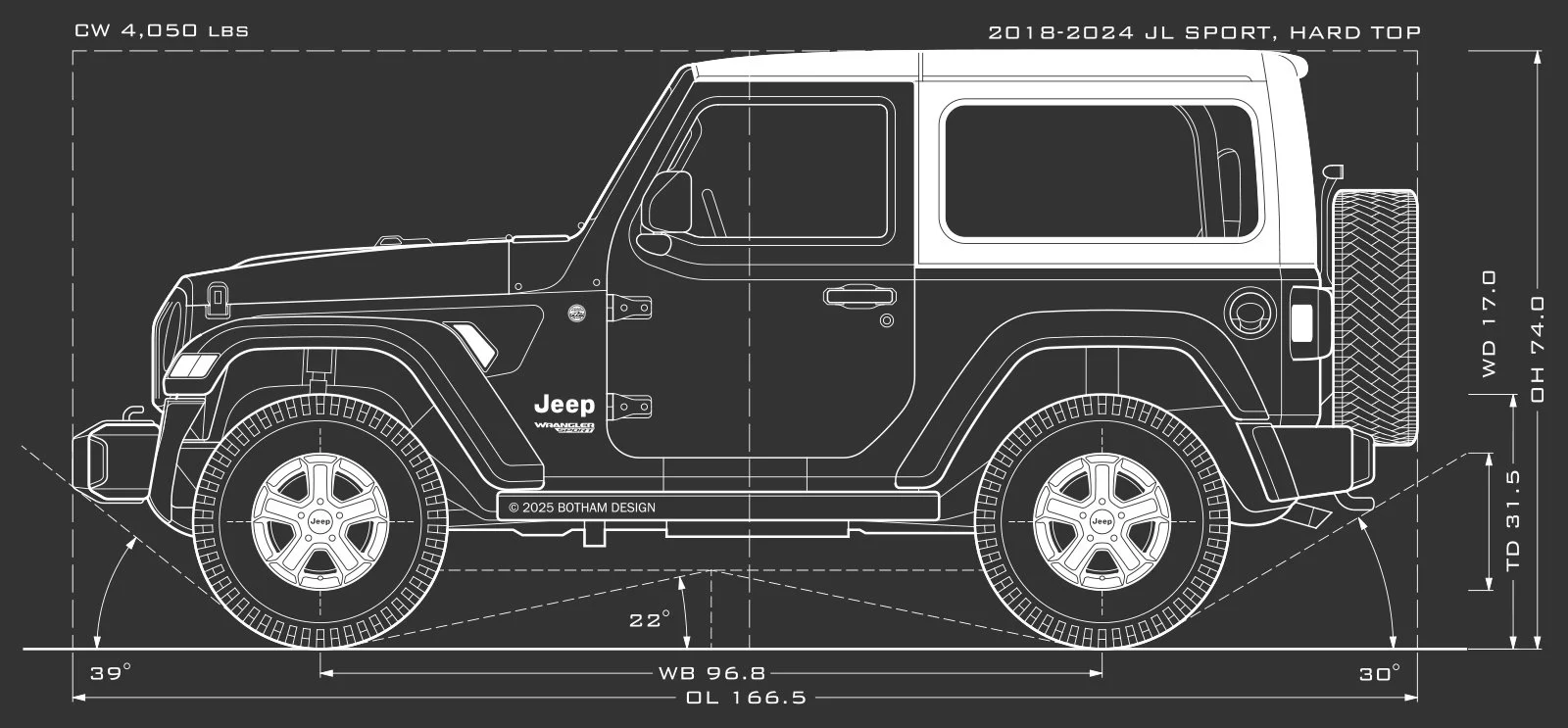

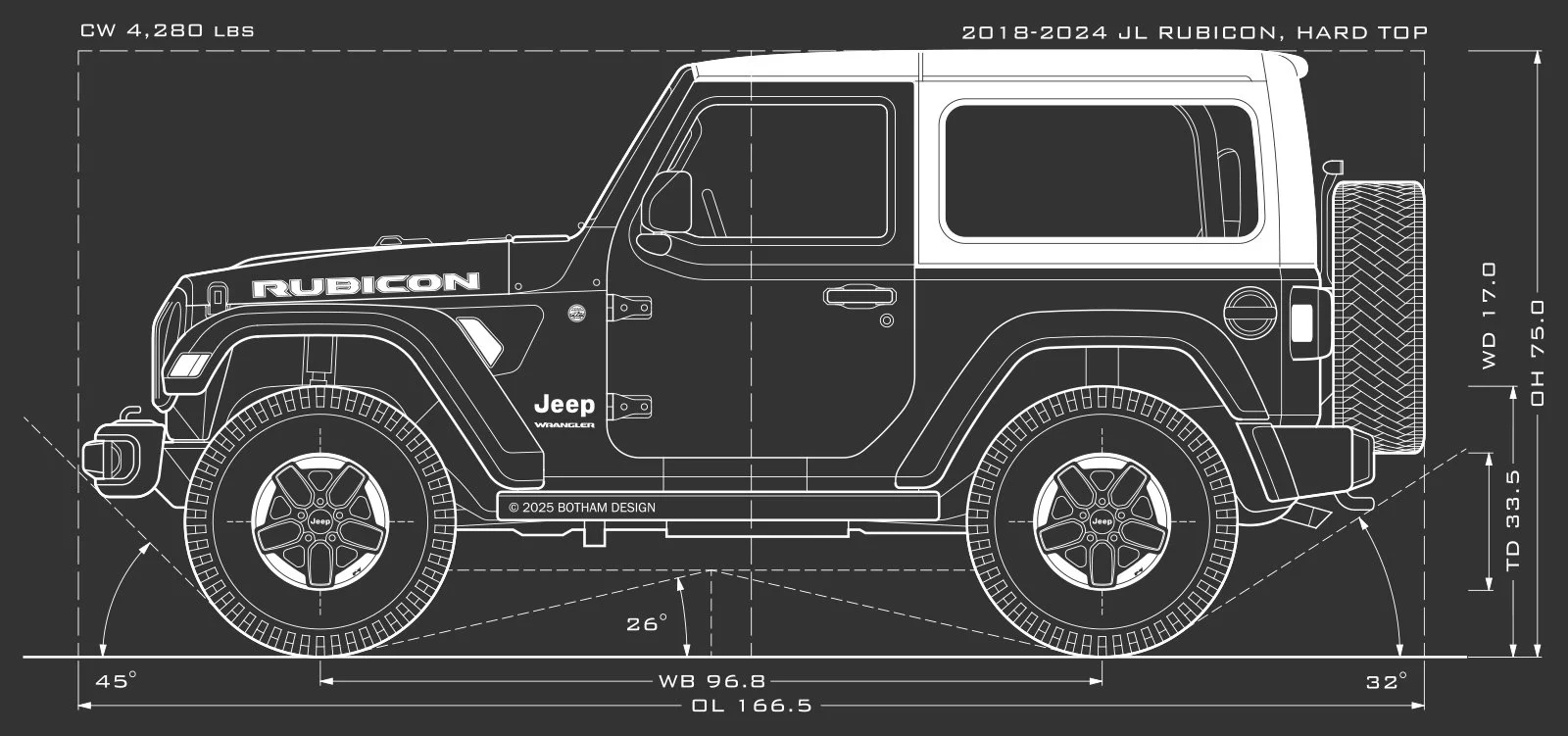

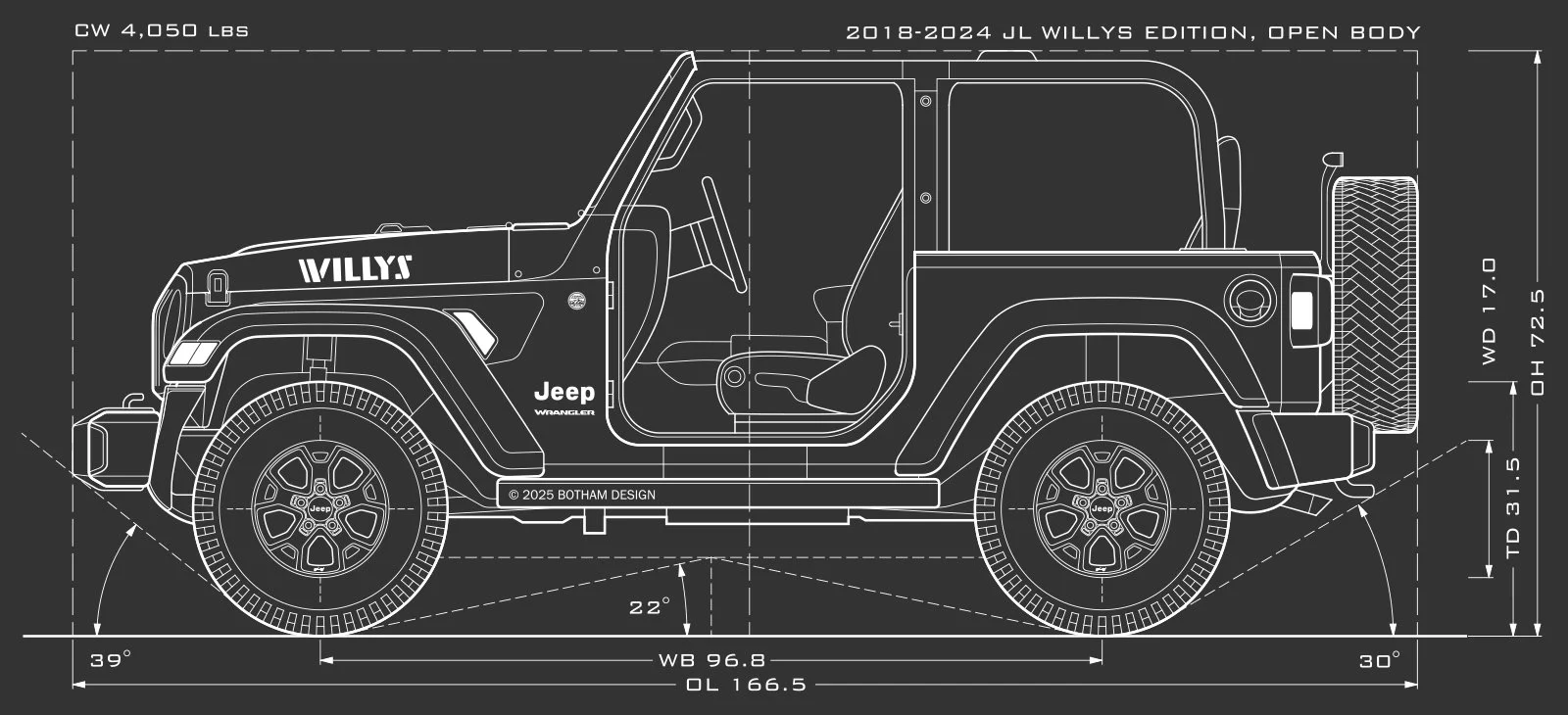

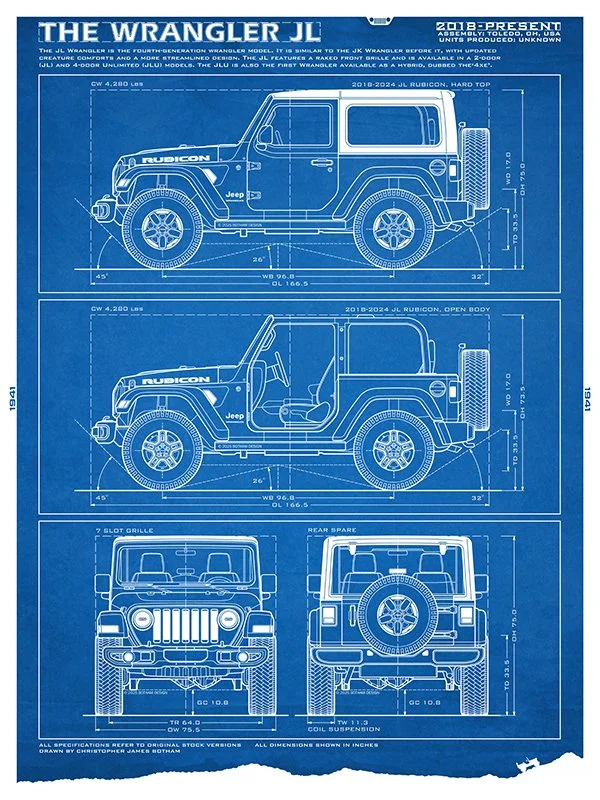

Drawn by Christopher James Botham
