JLU WRANGLER
JLU SPORT / WILLYS / SAHARA 2018 - 2024
JLU RUBICON 2018 - 2024

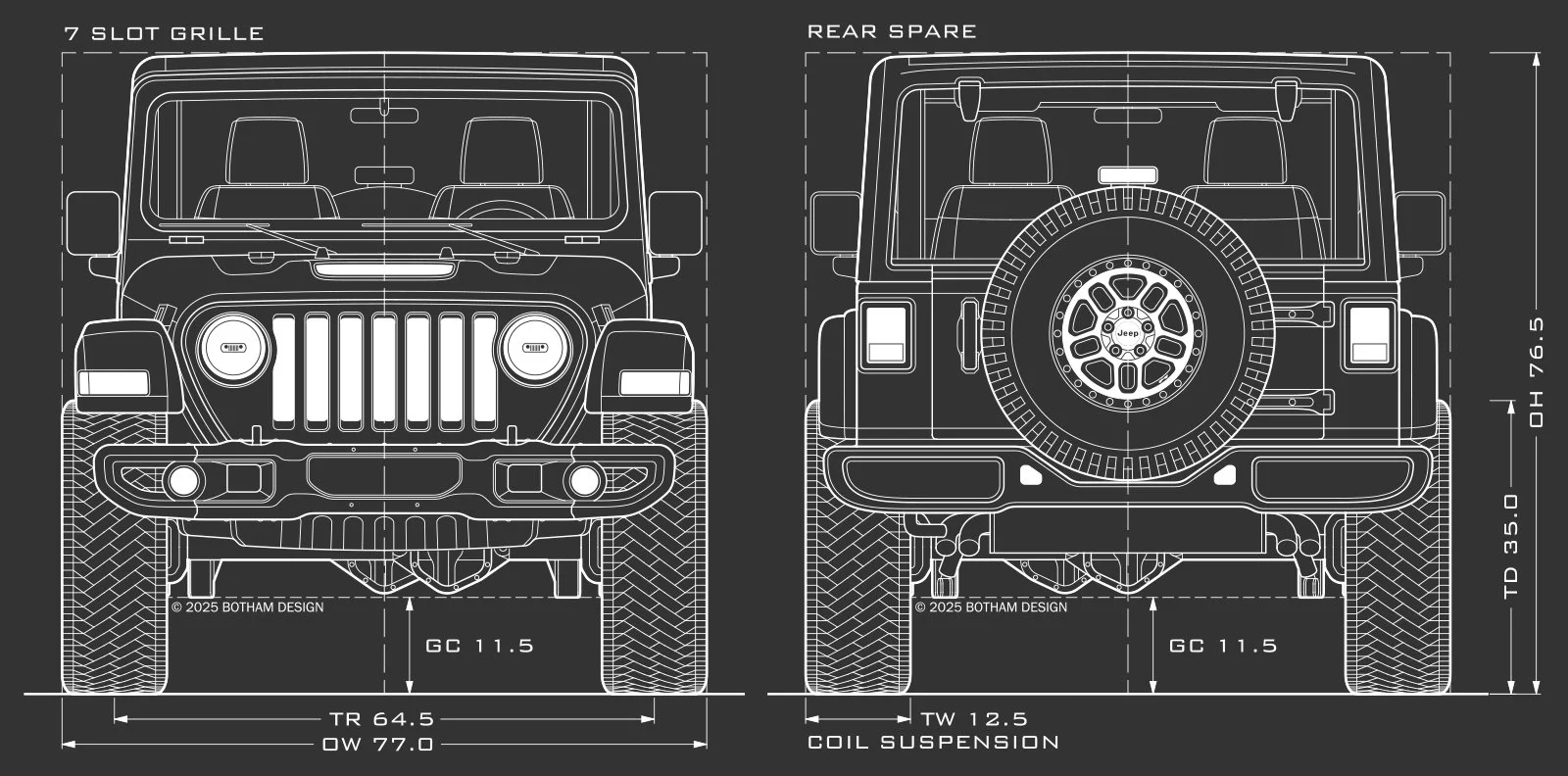

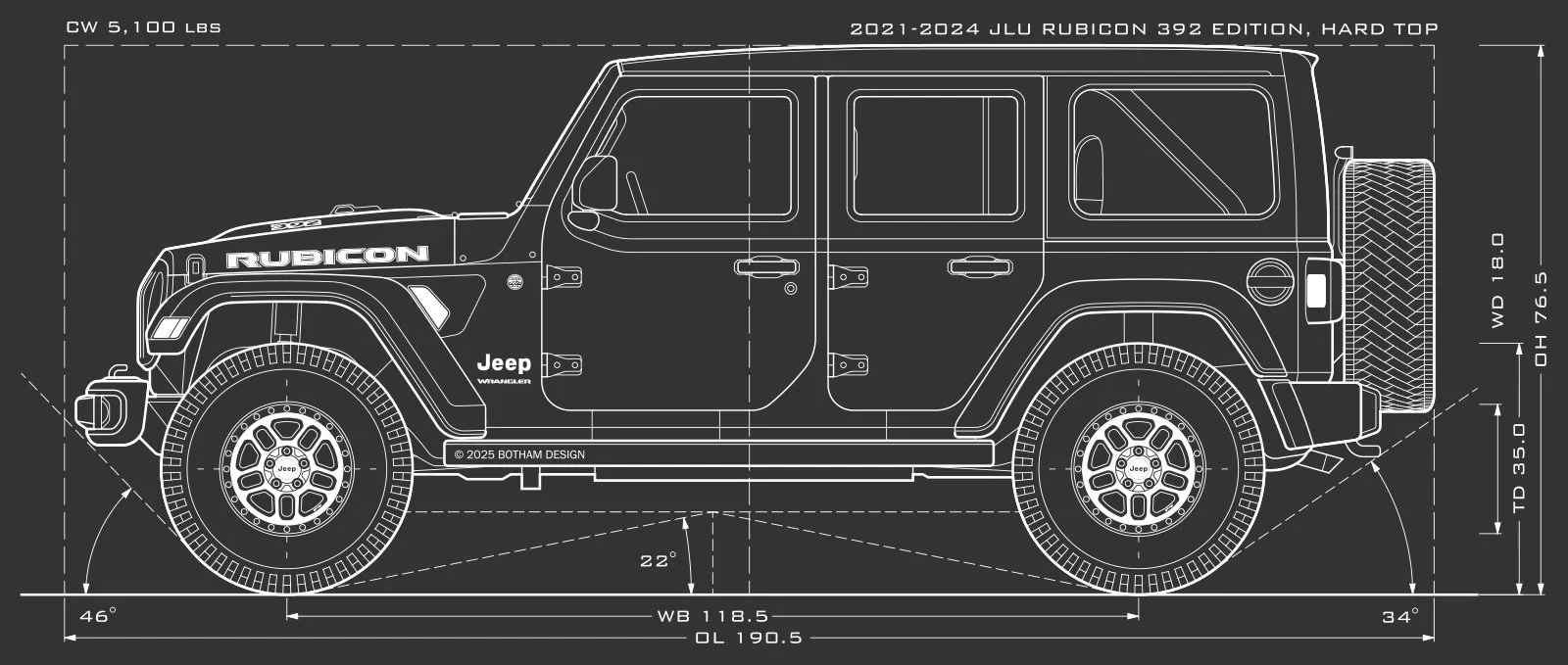

JLU RUBICON 392 EDITION 2021 - 2024
ASSEMBLY : TOLEDO, OH, USA
UNITS PRODUCED : UNKNOWN
PREDECESSOR : JKU Wrangler
SUCCESSOR : NONE
BASE MODEL : JL Wrangler
The JL Wrangler is the fourth-generation wrangler model. It is similar to the JK Wrangler before it, with updated creature comforts and a more streamlined design. The JL features a raked front grille and is available in a 2-door (JL) and 4-door Unlimited (JLU) models. The JLU is also the first Wrangler available as a hybrid, dubbed the ‘4xe’.
GRILLE
WHEELS
BADGING
Jeep Medallion : Fenderside
JLU Wrangler Unlimited Decal : Fenderside
JLU Wrangler Unlimited Sport Decal : Fenderside
Trail Rated Medallion : Fenderside
Willys Decal : Hoodside
Willys Decal : Hoodside
Rubicon Decal : Hoodside
Sahara Medallion : Fenderside
High Tide Decal : Hoodside
Jeep Beach Decal : Hoodside
JL Moab Decal : Hoodside
Wrangler 80th Anniversary Medallion : Fenderside
Rubicon Recon Edition Medallion : Fenderside
JL Oscar Mike Medallion : Fenderside
JL North Edition Medallion : Fenderside
Rubicon 392 Medallion : Hoodside
SPECS

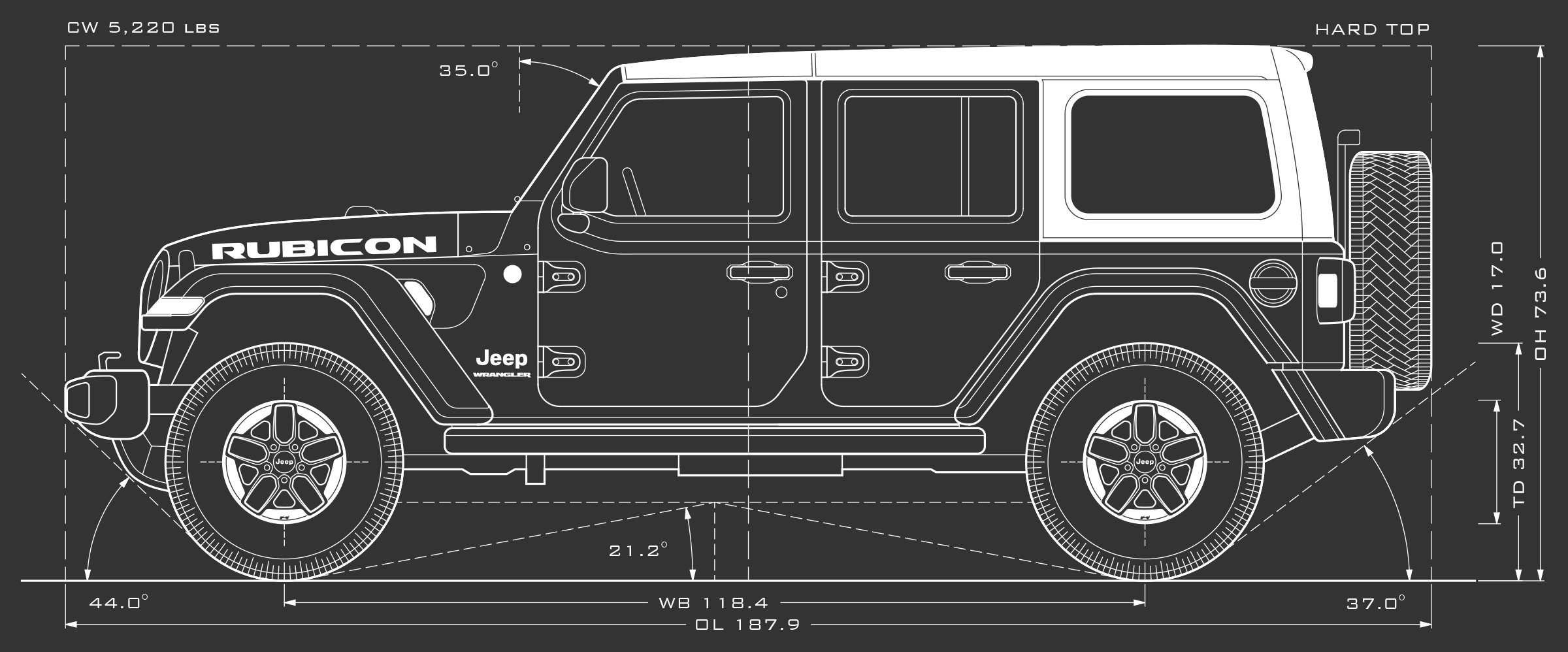

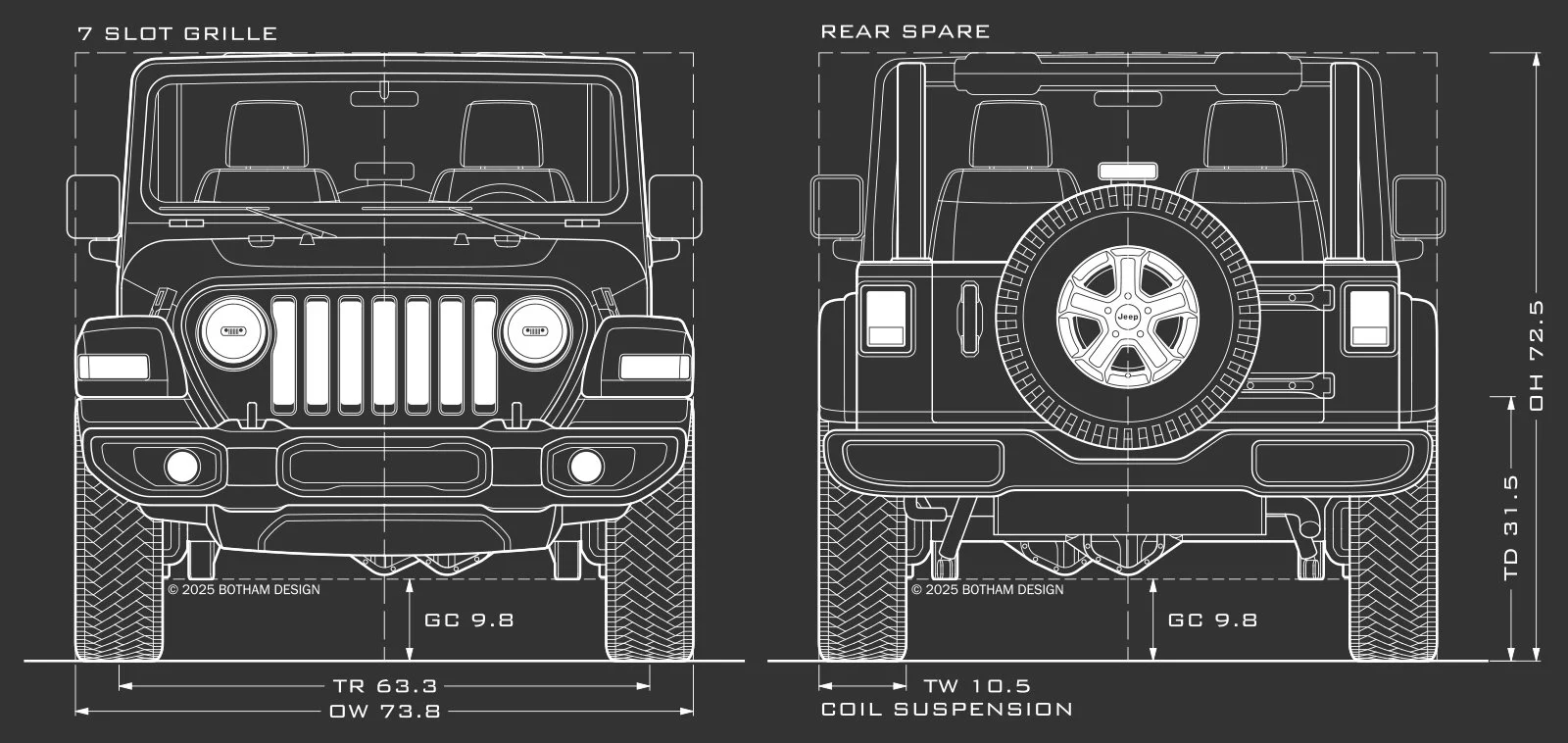

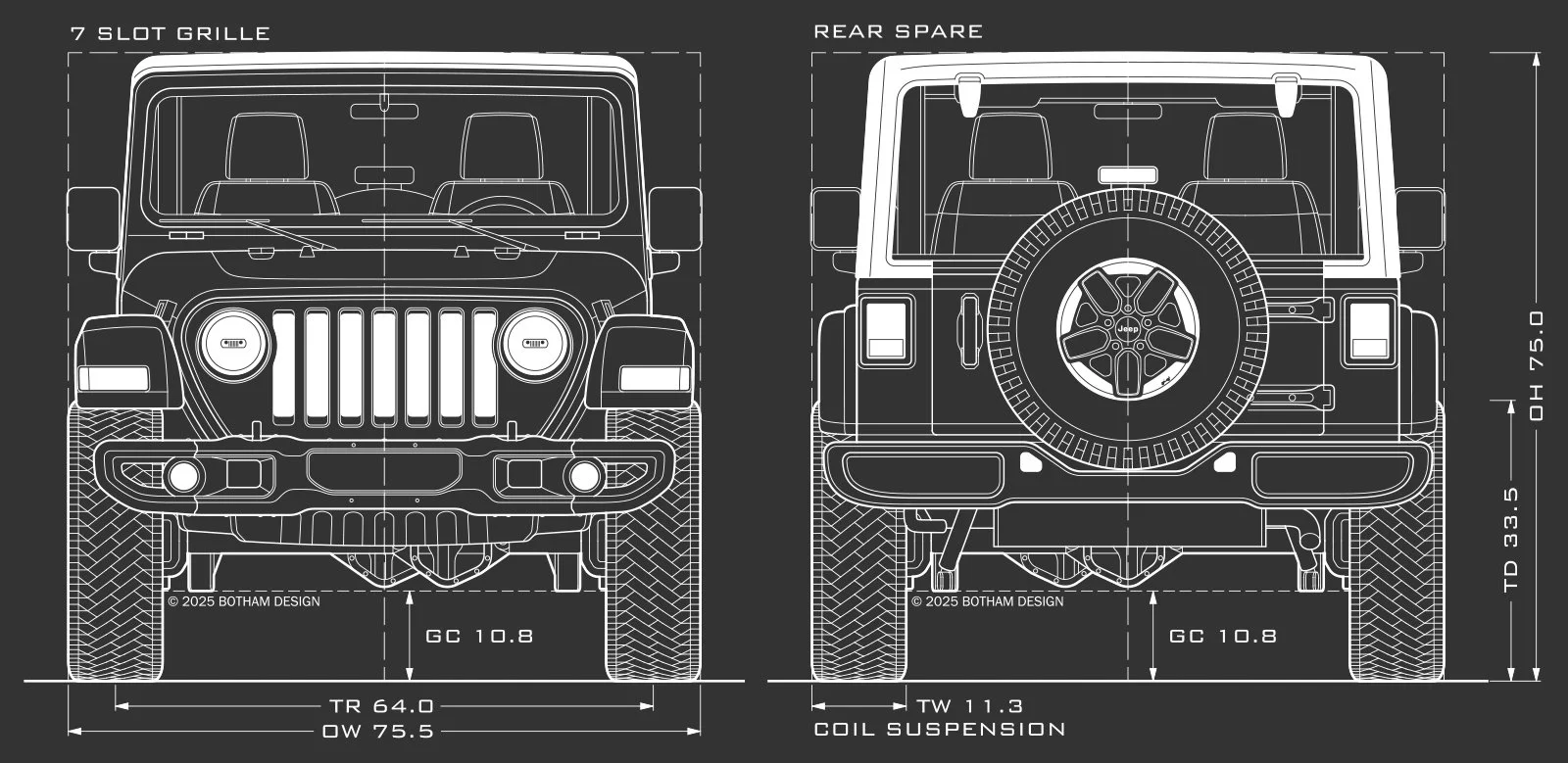

JLU WRANGLER SPECS
MAIN SPECS
OVERALL LENGTH (OL): 188.3
OVERALL WIDTH (OW): 73.8
OVERALL HEIGHT (OH), HARD TOP: 74.0
OVERALL HEIGHT (OH), SOFT TOP: 75.5
OVERALL HEIGHT (OH), OPEN BODY: 72.5
WHEELBASE (WB): 118.5
TRACK WIDTH (TR): 63.3
CURB WEIGHT (CW): 4,300 lbs
WINDSHIELD ANGLE (WA): 35°
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.8
APPROACH ANGLE (AA): 39°
BREAKOVER ANGLE (BA): 17°
DEPARTURE ANGLE (DA): 30°
SUSPENSION TYPE (SU): Coil Spring
All specifications refer to original stock version of base model
All dimensions shown in inches
Drawn by Christopher James Botham
