C-101 JEEPSTER COMMANDO

C-101 JEEPSTER (1966 - 1968)

C-101 JEEPSTER COMMANDO (1966 - 1971)

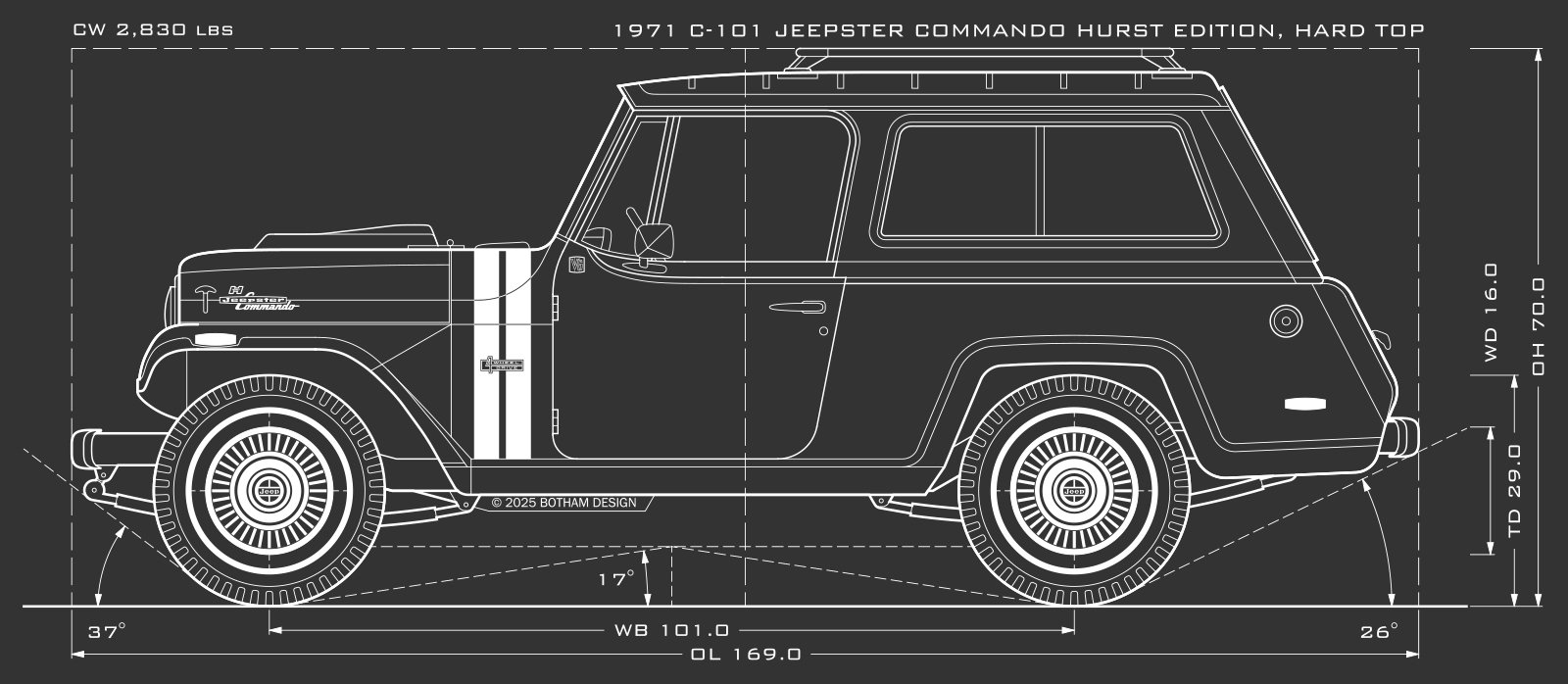

C-101 HURST EDITION (1971)

ASSEMBLY : Toledo, OH, USA
UNITS PRODUCED : 57,000

PREDECESSOR : VJ-3 Jeepster
SUCCESSOR : C-104 Commando

BASE MODEL : CJ-6 Universal

The C-101 Jeepster Commando was an updated version of the original Willys Jeepster. It used the same wheelbase and chassis as the CJ-6 and maintained tooling from the original Jeepster. The Commando was marketed as a recreational vehicle, and it was available with several body styles, including a convertible with soft top, pickup truck, roadster and 2-door wagon. The Commando was offered from 1966 until 1971, when it underwent a redesign.

GRILLE

WHEELS

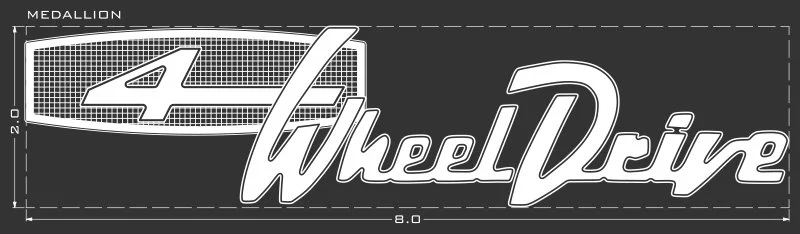

BADGING

SPECS

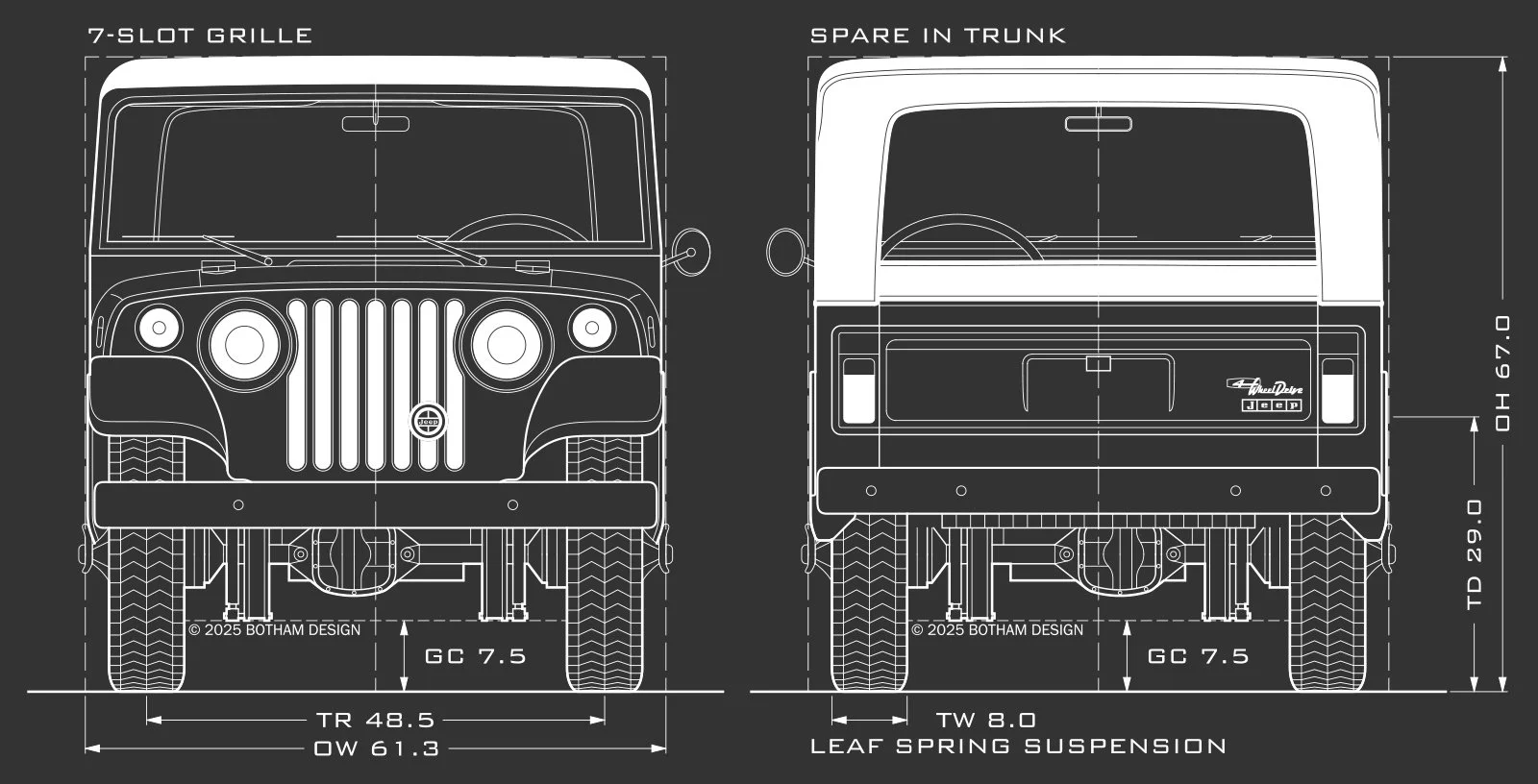

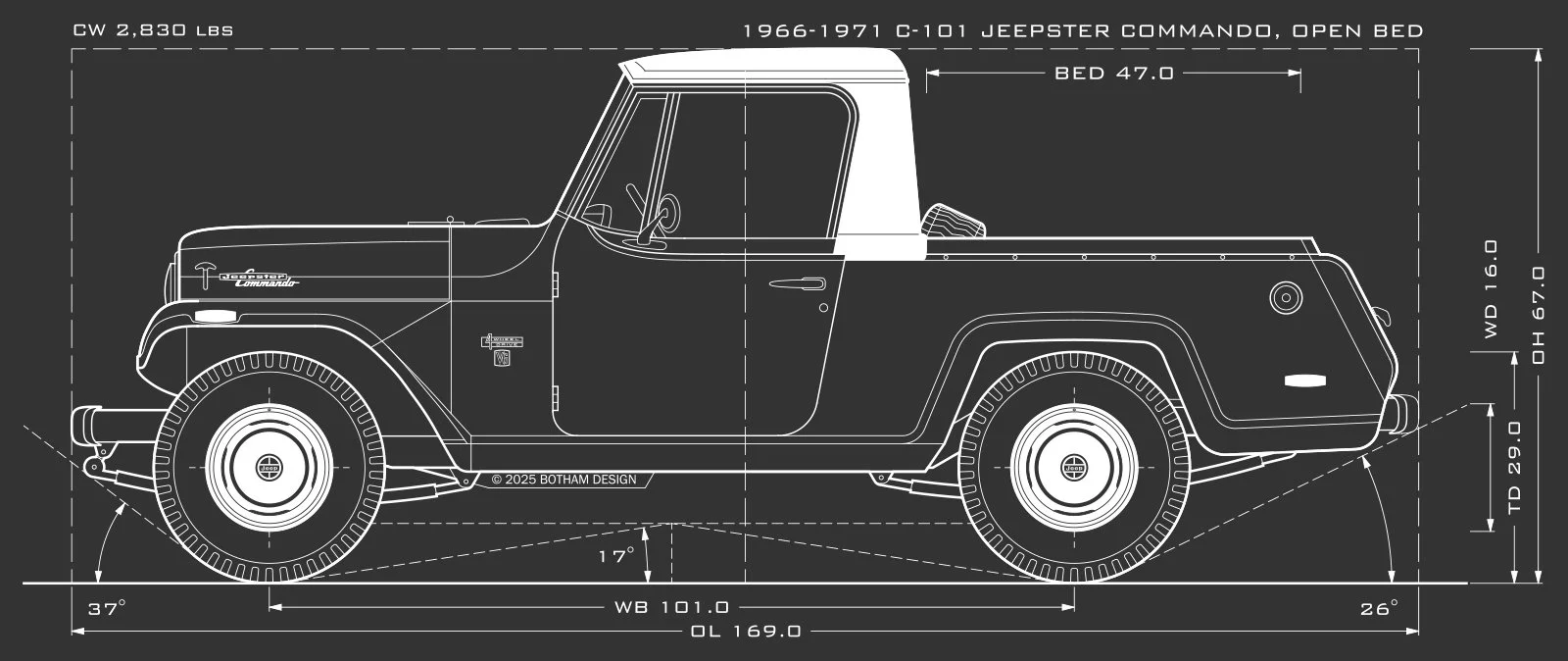

C-101 JEEPSTER COMMANDO SPECS

MAIN SPECS
OVERALL LENGTH (OL): 169.0
OVERALL WIDTH (OW): 61.3
OVERALL HEIGHT (OH): HARD TOP: 70.0
OVERALL HEIGHT (OH): NO TOP: 67.0
OVERALL HEIGHT (OH): SOFT TOP: 67.0
WHEELBASE (WB): 101.0
TRACK WIDTH (TR): 48.5
CURB WEIGHT (CW): 2,830 lbs
SPARE LOCATION: Spare In Bed

CHASSIS SPECS
GROUND CLEARANCE (GC): 7.5
APPROACH ANGLE (AA): 37°
BREAKOVER ANGLE (BA): 17°
DEPARTURE ANGLE (DA): 26°
SUSPENSION TYPE (SU): Leaf Spring

All specifications refer to original stock versions

All dimensions shown in inches

Drawn by Christopher James Botham
