JEEP SJ WAGONEER

1962 - 1963

ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: Unknown

The SJ Wagoneer shares a front end with the J-2000 Gladiator, and it succeeded the 473 Willys Jeep Station Wagon. It was the first model to bear the 'Wagoneer' name, which still continues today. It was offered in both 2-door and 4-door configurations, with the 2-door also available as a panel delivery vehicle without rear-side windows.

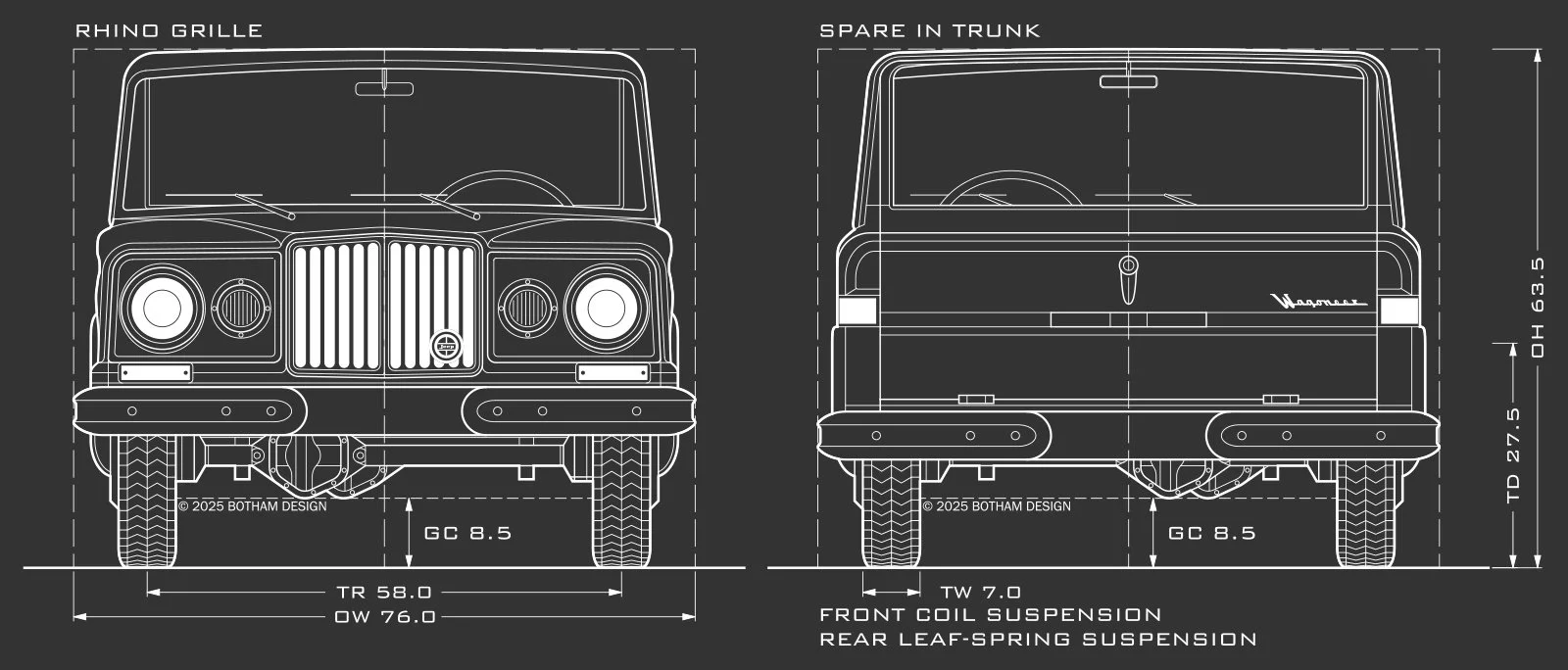

SJ WAGONEER SPECS

MAIN SPECS
OVERALL LENGTH (OL): 186.5
OVERALL WIDTH (OW): 76.0
OVERALL HEIGHT (OH): 63.5
WHEELBASE (WB): 110.0
TRACK WIDTH (TR): 58.0
CURB WEIGHT (CW): 3,725 lbs

CHASSIS SPECS
GROUND CLEARANCE (GC): 8.5
APPROACH ANGLE (AA): 33°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 17°
SUSPENSION TYPE (SU): Front Coil, Rear Leaf Spring Suspension

WHEEL SPECS
WHEEL NAME: Commando Hub Cap
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 6.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 7.7
TIRE DIAMETER (TD): 29.0
SPARE LOCATION: Spare in Trunk

All specifications refer to original stock versions

All dimensions shown in inches

Drawn by Christopher James Botham
