AM GENERAL M-998 HUMVEE
1985 - PRESENT
A.K.A. HMMWV, Hummer, High Mobility Multipurpose Wheeled Vehicle
ASSEMBLY : Mishawaka, IN, USA
UNITS PRODUCED : Unknown
PREDECESSOR : M-151 MUTT
The AM General Humvee is the US Military's successor to the original jeep and it's descendents. The term 'Humvee' comes from the official name for the vehicle: High Mobility Multipurpose Wheeled Vehicle, or HMMWV for short. The Humvee has been in service since 1985 and has been deployed all over the globe. As such, there have been many variants designed for different terrains and enemies over the years.
GRILLE
Humvee Grille (1985 - Present)
Related Model(s): M-998 Humvee
WHEELS
HUMVEE WHEEL
Related Model(s): M-998 Humvee
SPECS

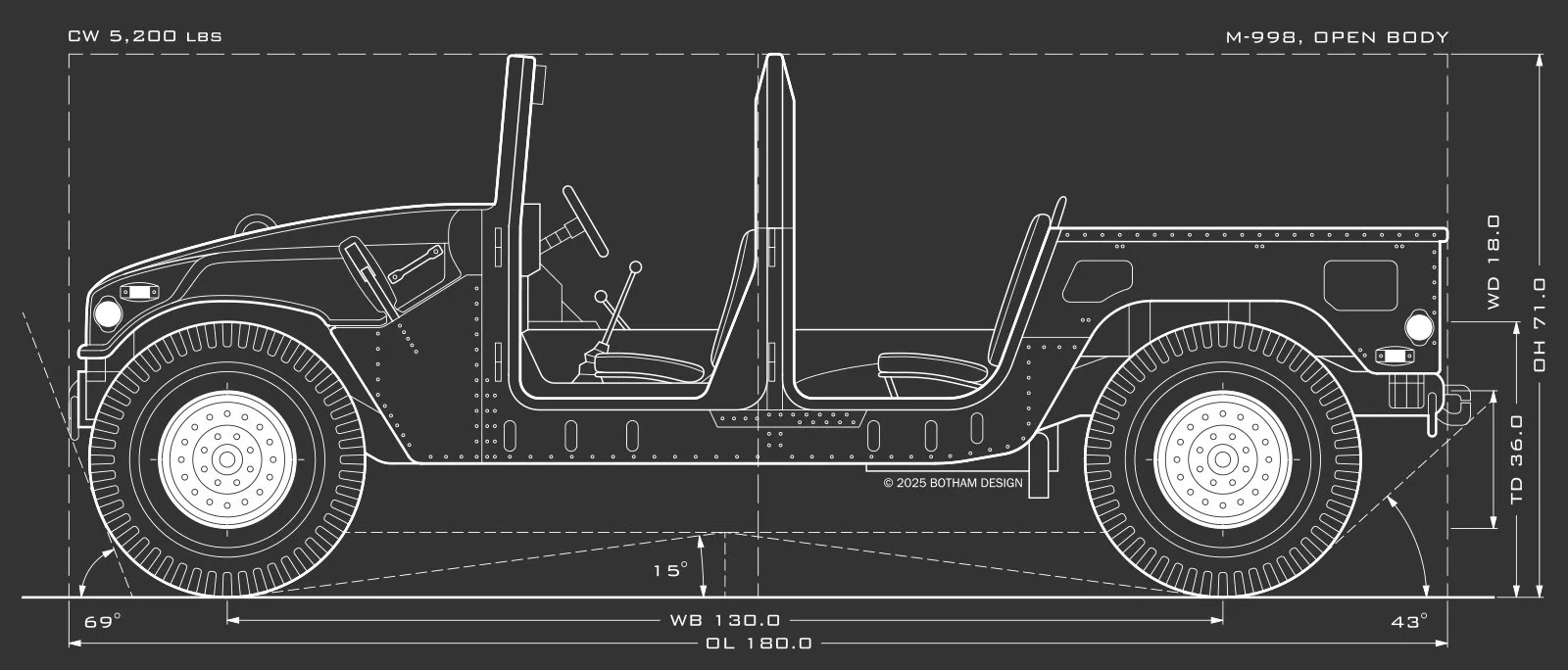

M-998 HUMVEE SPECS
MAIN SPECS
OVERALL LENGTH (OL): 180.0
OVERALL WIDTH (OW): 85.0
OVERALL HEIGHT (OH), SLANT BACK: 72.0
OVERALL HEIGHT (OH), FRAME: 71.0
WHEELBASE (WB): 130.0
TRACK WIDTH (TR): 59.0
CURB WEIGHT (CW): 5,200 lbs
SPARE LOCATION: Spare in Bed
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.5
APPROACH ANGLE (AA): 69°
BREAKOVER ANGLE (BA): 15°
DEPARTURE ANGLE (DA): 43°
SUSPENSION TYPE (SU): Coil Spring
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
