LJ UNLIMITED WRANGLER
LJ UNLIMITED 2003 - 2006

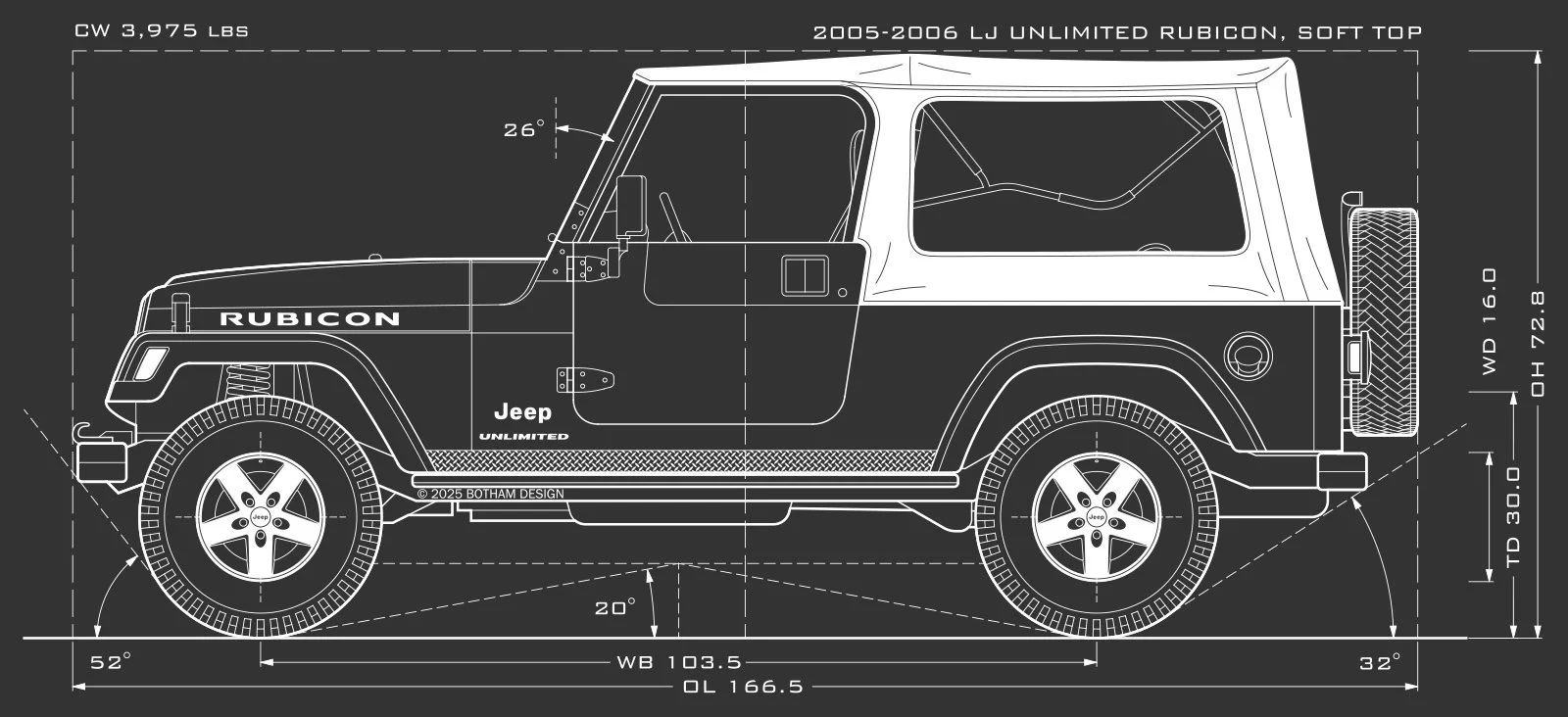

LJ UNLIMITED RUBICON 2005 - 2006
A.K.A. The Long Jeep
ASSEMBLY : TOLEDO, OH, USA
UNITS PRODUCED : 44,000
PREDECESSOR : TJ Wrangler
SUCCESSOR : JK Wrangler
BASE MODEL : TJ Wrangler
The LJ Wrangler was a TJ Wrangler with a 10-inch longer wheelbase. It was similar to the CJ-6 Universal and CJ-8 Scrambler before it, which were both longer versions of existing models (CJ-5 Universal and CJ-7, respectively). The longer wheelbase allowed more rear-seat leg room and more cargo space, as well as greater towing capacity. These features, combined with low production numbers, make LJ jeeps highly sought-after today.
GRILLE

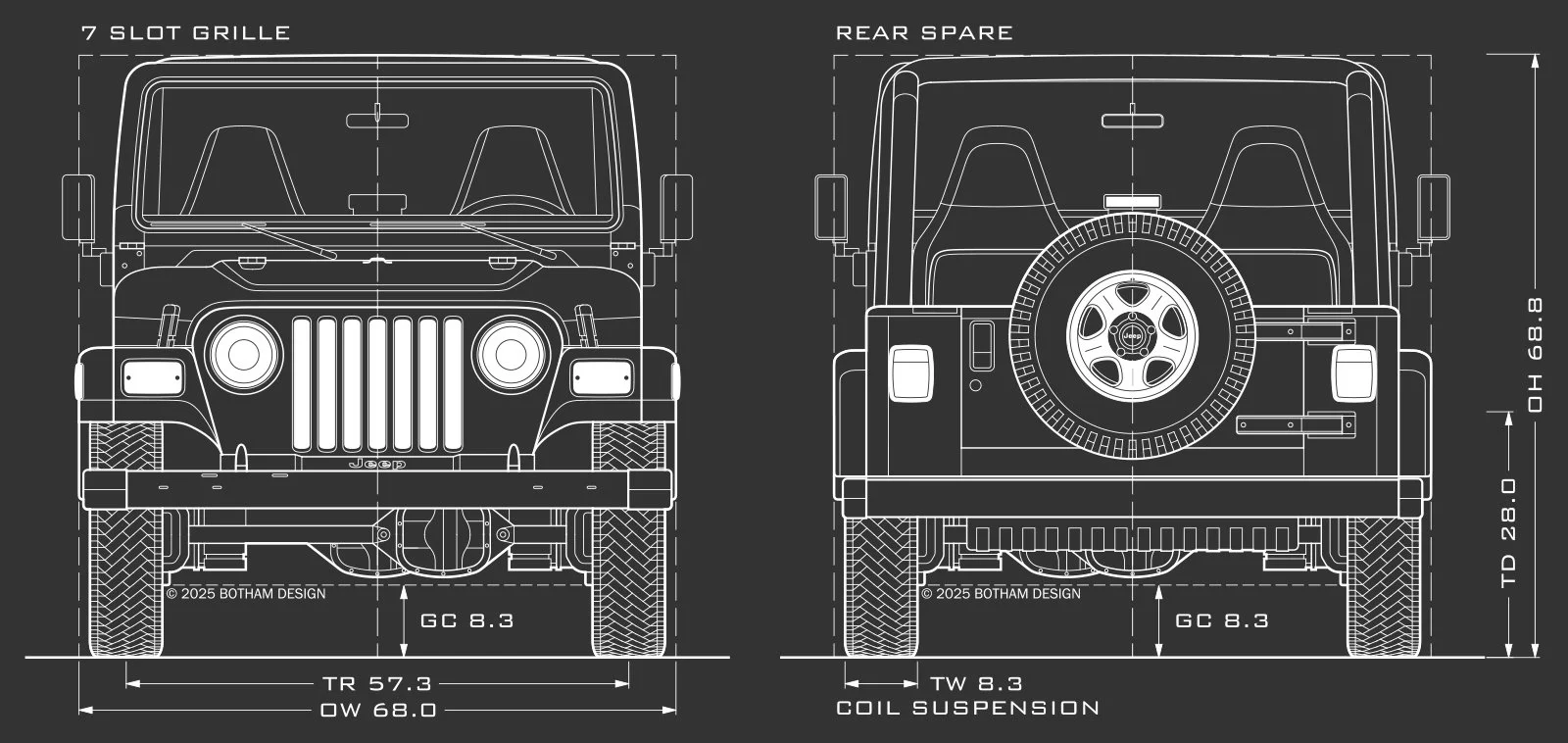

TJ Grille
(1996 - 2006)
7-slot, stamped metal grille
Related Model(s): TJ Wrangler (1996-2006), LJ Wrangler (2004-2006)
WHEELS
5-Spoke Wheel
(1987 - 2006)
Ecco Wheel
(1998 - 2006)
Grizzley Wheel
(1998 - 2006)
Model(s): TJ Wrangler (1998-2006), LJ Wrangler (2003-2006)
Ravine Wheel
(1998 - 2006)
Model(s): TJ Wrangler (1998-2006), LJ Wrangler (2003-2006)
Moab Wheel
(2003 - 2006)
Model(s): TJ Wrangler (2003-2006), LJ Wrangler (2003-2006)
BADGING
Jeep Metal Stamp : Fenderside
Unlimited Decal : Fenderside
Rubicon Decal : Hoodside
SPECS
JEEP LJ SPECS
MAIN SPECS
OVERALL LENGTH (OL): 166.5
OVERALL WIDTH (OW): 68.0
OVERALL HEIGHT (OH), HARD TOP: 70.3
OVERALL HEIGHT (OH), SOFT TOP: 70.3
OVERALL HEIGHT (OH), OPEN BODY: 68.8
WHEELBASE (WB): 103.5
TRACK WIDTH (TR): 57.3
CURB WEIGHT (CW): 3,780 lbs
WINDSHIELD ANGLE (WA): 26°
SPARE LOCATION: Rear Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.3
APPROACH ANGLE (AA): 45°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 28°
SUSPENSION TYPE (SU): Coil Spring
All specifications refer to original stock version of base model
All dimensions shown in inches
Drawn by Christopher James Botham
