JEEP MJ
Comanche
1984-1992
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 190,400
The MJ Comanche was a modified XJ Cherokee with a longer wheelbase, a half-cab and a pickup-truck bed. The MJ was offered as a 4-wheel-drive or rear-wheel-drive model, and the cargo bed was offered in 6' or 7' versions. Production of the MJ ceased in 1992 due to low sales numbers and competing models under the Chrysler banner.
JEEP MJ Comanche SPECS
MAIN SPECS
OVERALL LENGTH (OL): 185.5 (Short Bed), 202.0 (Long Bed)
OVERALL WIDTH (OW): 70.5
OVERALL HEIGHT (OH), SHORT BED: 63.5
OVERALL HEIGHT (OH), LONG BED: 68.0
WHEELBASE (WB): 113 (Short Bed), 120.0 (Long Bed)
TRACK WIDTH (TR): 59.0
CURB WEIGHT (CW): 3,130 lbs (Short Bed), 3,200 lbs (Long Bed)
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.3
APPROACH ANGLE (AA): 42°
BREAKOVER ANGLE (BA): 17° (Short Bed), 16° (Long Bed)
DEPARTURE ANGLE (DA): 18° (Short Bed), 16° (Long Bed)
SUSPENSION TYPE (SU): Front Coil Spring, Rear Leaf Spring
WHEEL SPECS
WHEEL NAME: Cherokee Wheel, Cherokee Chief Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 6.0
BOLT PATTERN (BP): 5 x 4.5
TIRE WIDTH (TW): 8.5
TIRE DIAMETER (TD): 27.0
SPARE LOCATION: Spare Under Bed
All specifications refer to original stock versions
All dimensions shown in inches

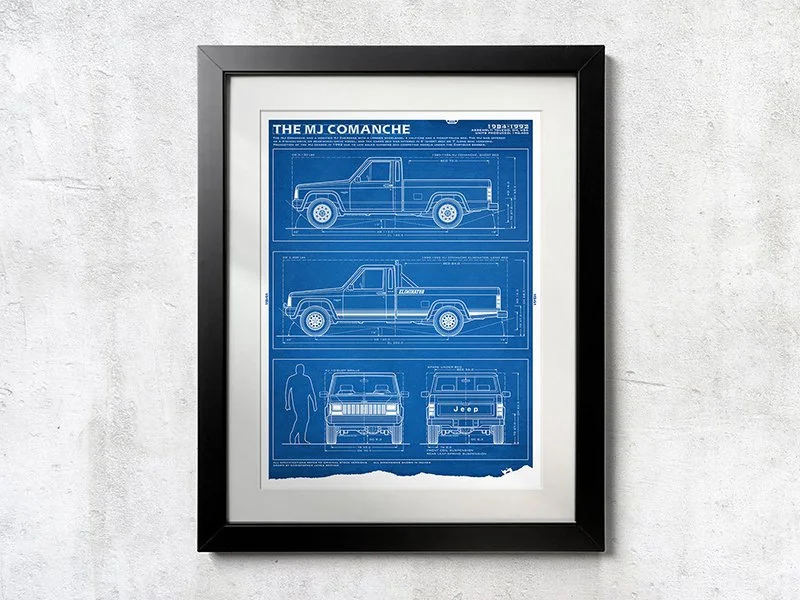

Drawn by Christopher James Botham
