JEEP J-10 SERIES GLADIATOR
J-10 HONCHO / J-20 TOWNSIDE 1974 - 1978
J-10 TOWNSIDE GOLDEN EAGLE 1978
J-10 HONCHO / J-20 TOWNSIDE 1979 - 1980
J-10 HONCHO SPORTSIDE 1979 - 1980
J-10 HONCHO / J-20 TOWNSIDE 1981 - 1987
J-10 HONCHO SPORTSIDE 1981 - 1987
ASSEMBLY : Toledo, OH, USA
UNITS PRODUCED : Unknown
PREDECESSOR : J-2000 Series Gladiator
SUCCESSOR : CJ-8 Scrambler
SUB-MODEL : SJ Cherokee Chief
The Jeep J-10 Series Gladiator was the successor to the J-2000 Series Gladiator with an updated front end and grille. The J-20 has a longer wheelbase and greater payload capacity than the J-10. The J-10 was the first model to feature the Honcho name, which was an upgraded graphics package to the base model. The Early J-10 models featured the Crown Grille, which departed from the vertical slots of previous versions in favor of horizontal slots. Subsequent versions featured the Muscle Grille, with the base design remaining the same.
GRILLE
Razor Grille
(1964 - 1978)
22-slot, stamped metal grille with circular headlights
Related Model(s): J-2000 Series Gladiator (1970-1973), J-10 Series Gladiator (1974-1978), SJ Wagoneer (1964-1970), SJ Super Wagoneer (1966-1969), SJ Cherokee (1974-1978)

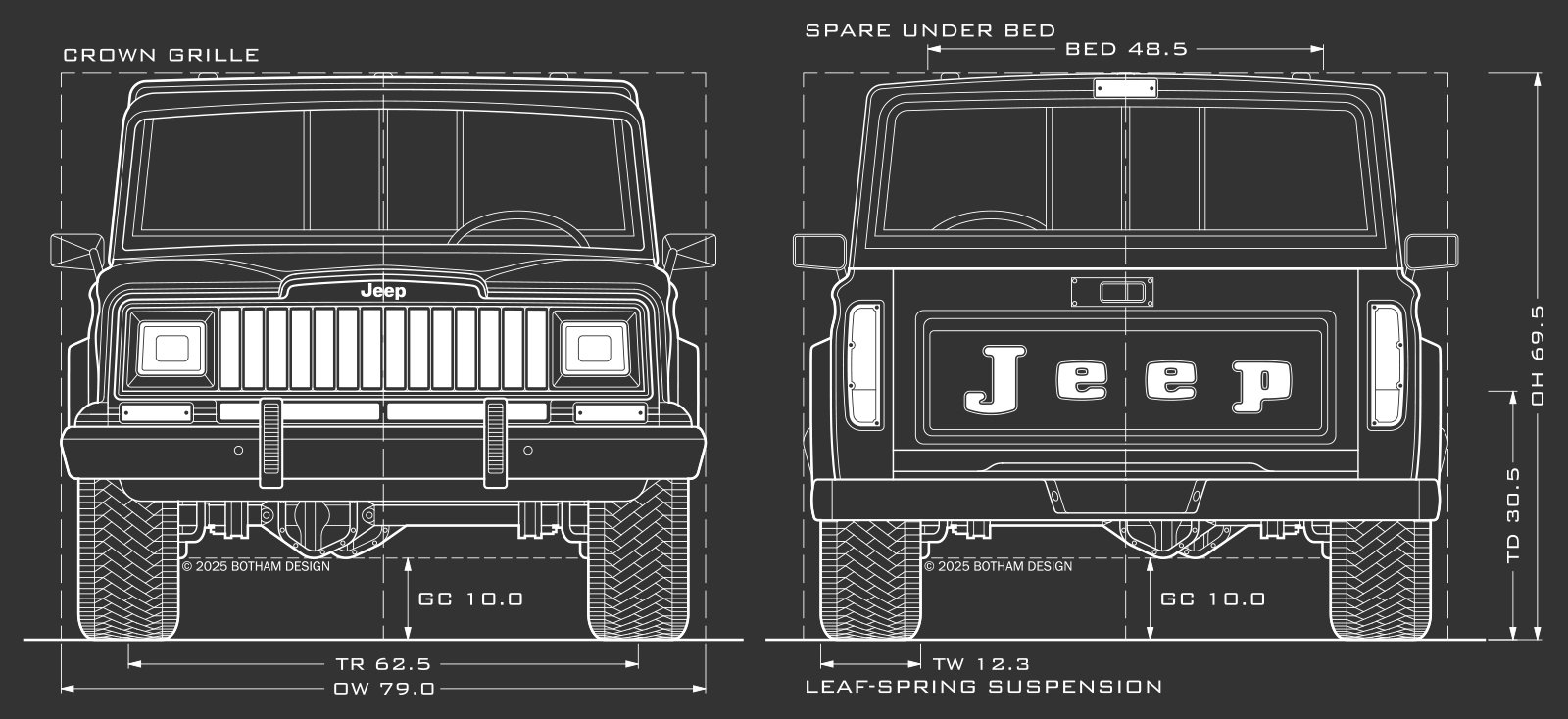

Crown Grille
(1979 - 1984)
horizontal metal-slatted grille with squared headlights
Related Model(s): J-10 Series Gladiator (1979-1980), SJ Wagoneer (1979-1984), SJ Grand Wagoneer (1985-1986), SJ Cherokee Chief (1979-1980)
Muscle Grille
(1979 - 1987)
14-slot, molded metal grille with squared headlights
Related Model(s): J-10 Series Gladiator (1981-1987), SJ Cherokee Chief (1980-1983)
WHEELS
Honcho Wheel
(1974 - 1978)
Civilian Wheel with Spoked Hub
(1974 - 1980)
Model(s): J-10 Series Gladiator (1974-1980)
8-Spoke Wheel (AKA Steelie)
(1977 - 1987)
Civilian Wheel
(1947 - 1984)
Model(s): M-606 (1953-1968), CJ-4M (1951), M-38A1 (1952-1971), M-170 Ambulance (1953-1963), CJ-2 Agrijeep (1942-1945), CJ-2A (1945-1949), CJ-3A (1949-1953), CJ-3B (1953-1968), CJ-4 (1951), CJ-5 (1955-1972), CJ-6 (1955-1978), CJ-10 (1981-1985), DJ-5 (1965-1984), DJ-6 (1965-1969), 463 Truck (1947-1950), 473 Truck (1950-1953), FC-150 (1956-1958), FC-170 (1957-1964), J-2000 Series Gladiator (1962-1972)
BADGING
Jeep Medallion, Grille

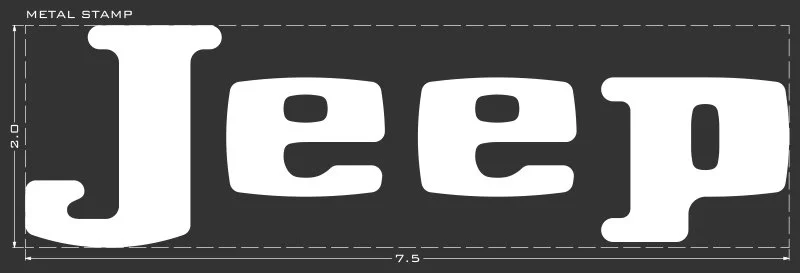

Jeep Metal Stamp, tailgate.
Jeep Metal Stamp, tailgate.
4 Wheel Drive Medallion, fenderside.
J10 Medallion, Fenderside
J20 Medallion, Fenderside
Honcho Decal, doorside.
Golden Eagle Decal, doorside.
Golden Eagle Decal, hoodside.
SPECS
JEEP J-10 SERIES GLADIATOR SPECS
MAIN SPECS
OVERALL LENGTH (OL): 192.5
OVERALL WIDTH (OW): 62.5
OVERALL HEIGHT (OH): 69.5
WHEELBASE (WB): 120.0
TRACK WIDTH (TR): 62.5
CURB WEIGHT (CW): 5,600 lbs
SPARE LOCATION: Spare Under Bed
CHASSIS SPECS
GROUND CLEARANCE (GC): 10.0
APPROACH ANGLE (AA): 39°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 17°
SUSPENSION TYPE (SU): Leaf Spring Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
