1981 - 1985
JEEP CJ-10
A.K.A. Jeep One-Tonner, Jeep J-10
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 300
The CJ-10 was the last of the Jeep CJ models. It featured a CJ-7-style body with a re-designed front end. The front end is notable for its 10-slot grille and squared-off headlights, the latter foreshadowing the Wrangler YJ's grille design from 1986. The CJ-10 was designed for export markets and was mainly shipped to Australia.
WHEELS
Civilian Wheel
(1947 - 1984)
Model(s): M-606 (1953-1968), CJ-4M (1951), M-38A1 (1952-1971), M-170 Ambulance (1953-1963), CJ-2 Agrijeep (1942-1945), CJ-2A (1945-1949), CJ-3A (1949-1953), CJ-3B (1953-1968), CJ-4 (1951), CJ-5 (1955-1972), CJ-6 (1955-1978), CJ-10 (1981-1985), DJ-5 (1965-1984), DJ-6 (1965-1969), 463 Truck (1947-1950), 473 Truck (1950-1953), FC-150 (1956-1958), FC-170 (1957-1964), J-2000 Series Gladiator (1962-1972)
BADGING
Jeep Metal Stamp : Fenderside, Above Grille
CJ-10 Medallion : Fenderside
Jeep Metal Stamp : Tailgate Center
SPECS

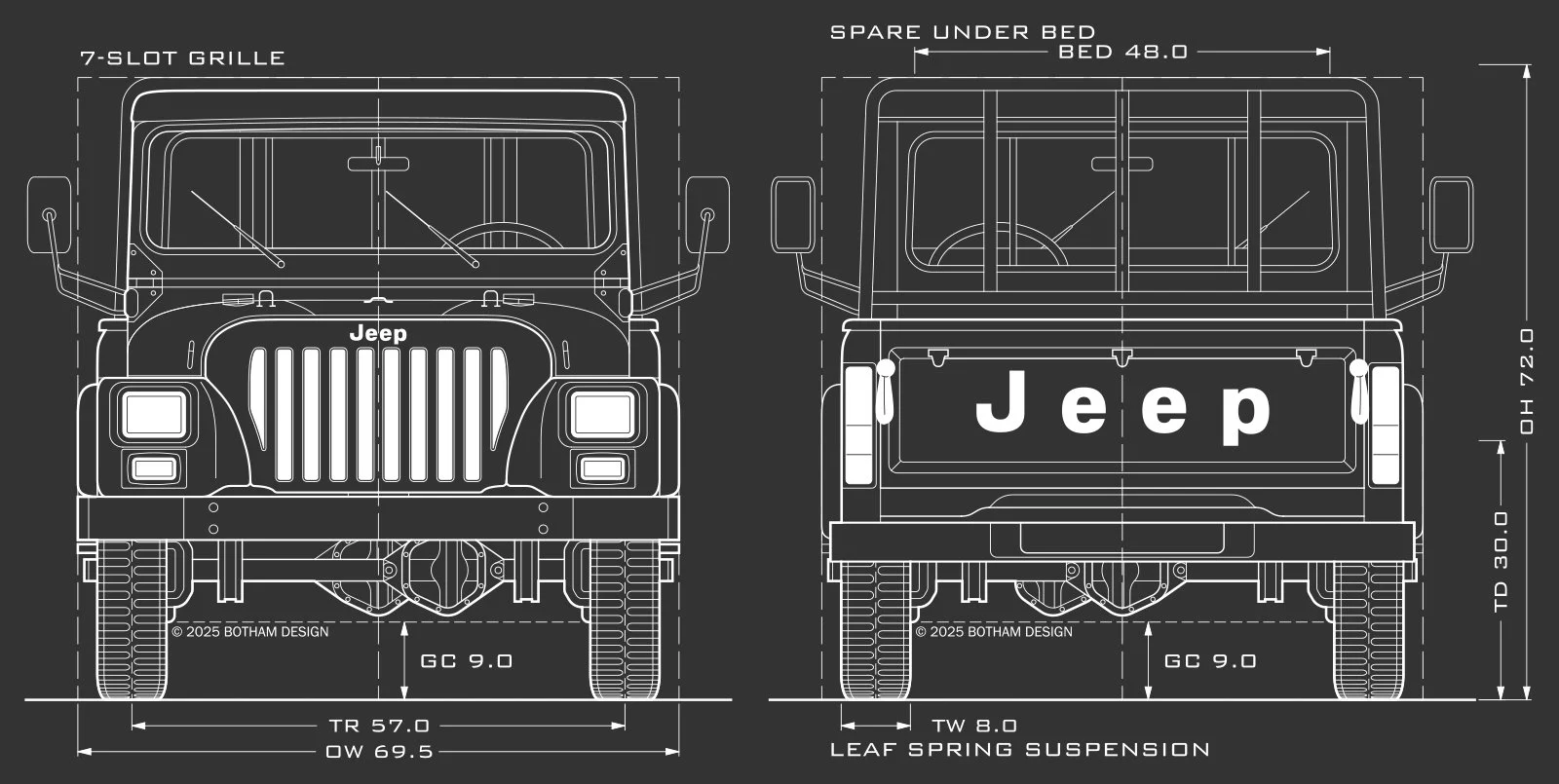

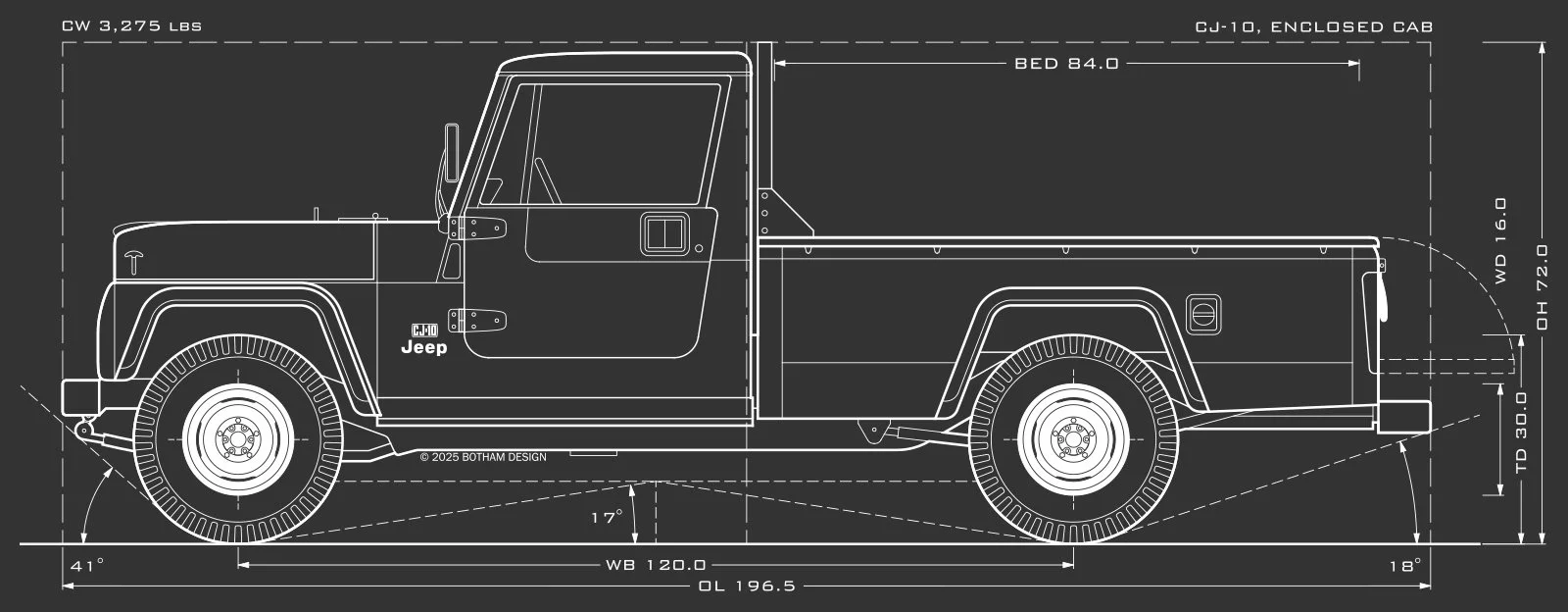

JEEP CJ-10 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 196.5
OVERALL WIDTH (OW): 69.5
OVERALL HEIGHT (OH), HARD TOP: 72.0
WHEELBASE (WB): 120.0
TRACK WIDTH (TR): 57.0
CURB WEIGHT (CW): 3,275 lbs
SPARE LOCATION: Spare Under Bed
CHASSIS SPECS
GROUND CLEARANCE (GC): 9.0
APPROACH ANGLE (AA): 41°
BREAKOVER ANGLE (BA): 17°
DEPARTURE ANGLE (DA): 18°
SUSPENSION TYPE (SU): Leaf Spring
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
