JEEP FC-170 FORWARD CONTROL
1957 - 1964
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 31,000
The Jeep Forward Control was a cab-over utility truck marketed as a corporate work vehicle. It's futuristic cab design features a 7-slot grille and streamlined curves, reminiscent of a helicopter. The FC was sold in two models: the FC-150 was the standard model, and the FC-170 had a longer wheelbase and bed, while retaining the same cab design. In addition, there were various 'Jeep-Approved' after-market bed variants, such as flatbeds, tow-trucks, dump trucks and others, which greatly increased the FC's utility.

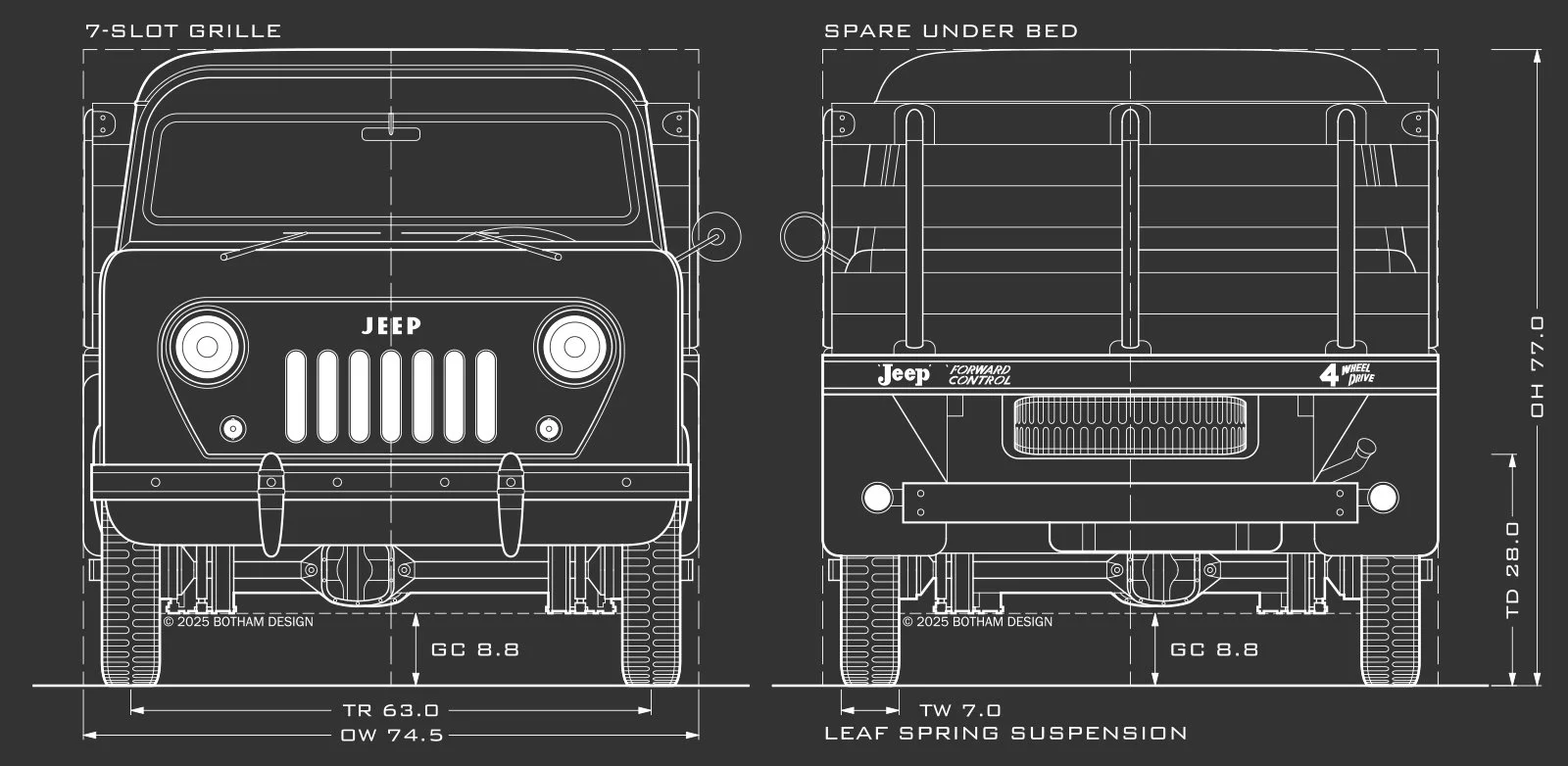

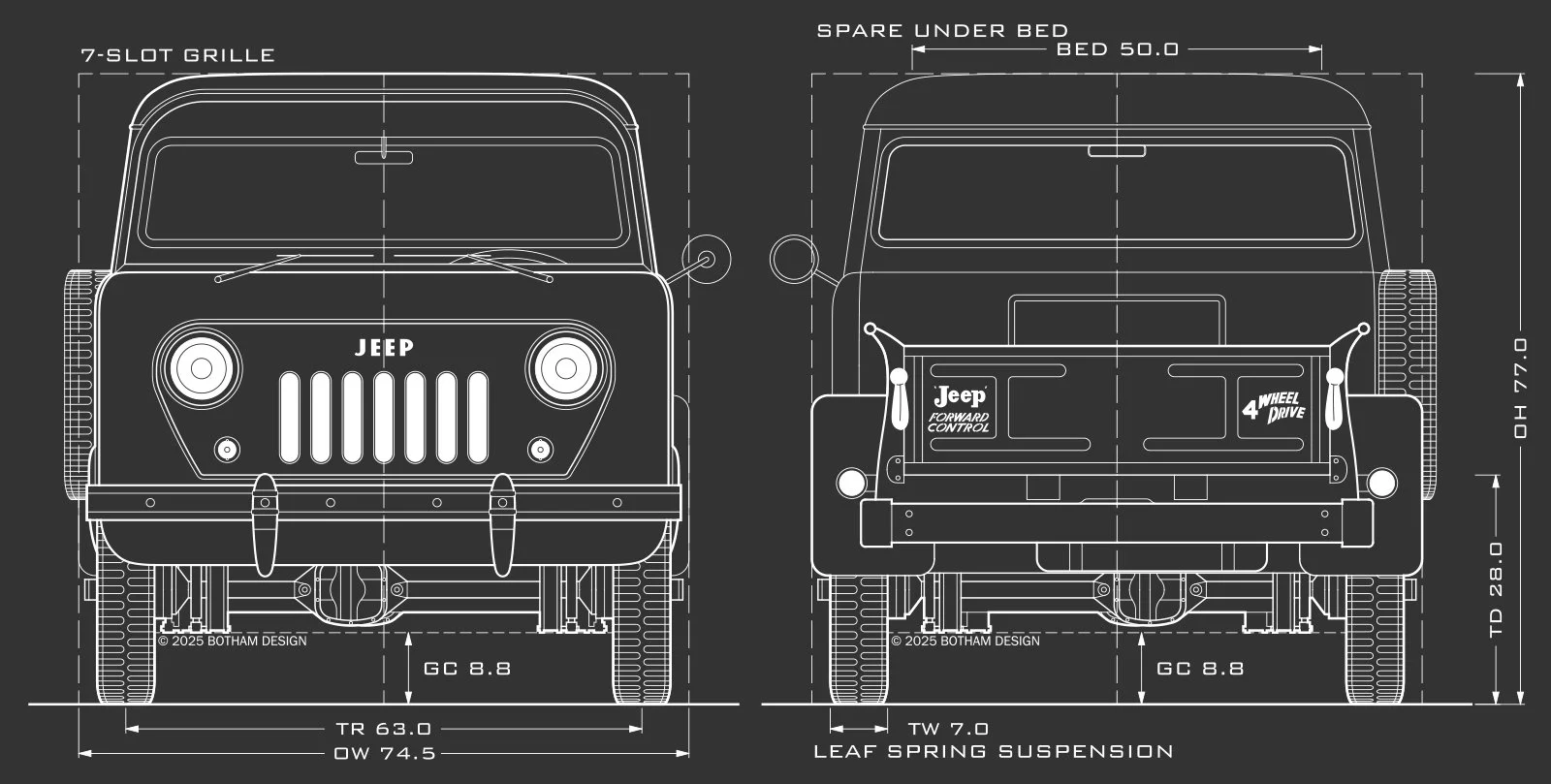

JEEP FC-170 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 181.5
OVERALL WIDTH (OW): 74.5
OVERALL HEIGHT (OH): 77.0
WHEELBASE (WB): 103.0
TRACK WIDTH (TR): 63.0
CURB WEIGHT (CW): 3,430 lbs
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.8
APPROACH ANGLE (AA): 29°
BREAKOVER ANGLE (BA): 20°
DEPARTURE ANGLE (DA): 28°
SUSPENSION TYPE (SU): Leaf Spring
WHEEL SPECS
WHEEL NAME: Civilian Wheel
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 6.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 7.0
TIRE DIAMETER (TD): 28.0
SPARE LOCATION: Side Spare
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
