DJ-5
UNIVERSAL 1965 - 1971
DISPATCHER 1965 - 1984
A.K.A. The Postal Jeep, The Electruck
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 4,300
PREDECESSOR : DJ-3A
SUCCESSOR : DJ-6
BASE MODEL : CJ-5
DJ Jeeps were referred to as Dispatcher jeeps, hence the ‘D’ in the prefix. The DJ-5 was a modified CJ-5 Universal with 2 wheel drive. It's sub-model, the DJ-5 Dispatcher, had a unique 5-slot grille which bumped out from the front of the hood to accommodate a larger engine. The DJ-5 Dispatcher is best known as a US Postal Service delivery vehicles in the 1970s, and for an electric version, dubbed the 'Electruck'.
GRILLE
CJ-5 Grille
(1955 - 1983)
7-slot, stamped metal grille
Model(s): CJ-5 Universal (1955-1983), CJ-5A Tuxedo Park (1964-1968), CJ-6 Universal (1955-1981), CJ-6A Tuxedo Park (1964-1968), DJ-6 Dispatcher (1975-1983)
Dispatcher Grille
(1971 - 1984)
5-slot, stamped metal grille
Model(s): DJ-5 Dispatcher (1971-1984)
WHEELS
Civilian Wheel
(1947 - 1984)
Model(s): M-606 (1953-1968), CJ-4M (1951), M-38A1 (1952-1971), M-170 Ambulance (1953-1963), CJ-2 Agrijeep (1942-1945), CJ-2A (1945-1949), CJ-3A (1949-1953), CJ-3B (1953-1968), CJ-4 (1951), CJ-5 (1955-1972), CJ-6 (1955-1978), CJ-10 (1981-1985), DJ-5 (1965-1984), DJ-6 (1965-1969), 463 Truck (1947-1950), 473 Truck (1950-1953), FC-150 (1956-1958), FC-170 (1957-1964), J-2000 Series Gladiator (1962-1972)
BADGING
Jeep Metal Stamp : Fenderside
Jeep Metal Stamp : Tailgate Center
SPECS
JEEP DJ-5 SPECS
MAIN SPECS
OVERALL LENGTH (OL): 133.0
OVERALL WIDTH (OW): 68.5
OVERALL HEIGHT (OH): 68.7
WHEELBASE (WB): 81.0
TRACK WIDTH (TR): 51.5
CURB WEIGHT (CW): 2,450 lbs
WINDSHIELD ANGLE (WA): 15°
SPARE LOCATION: Side Spare
CHASSIS SPECS
GROUND CLEARANCE (GC): 6.7
APPROACH ANGLE (AA): 33°
BREAKOVER ANGLE (BA): 19°
DEPARTURE ANGLE (DA): 31°
SUSPENSION TYPE (SU): Leaf Spring
All specifications refer to original stock versions
All dimensions shown in inches

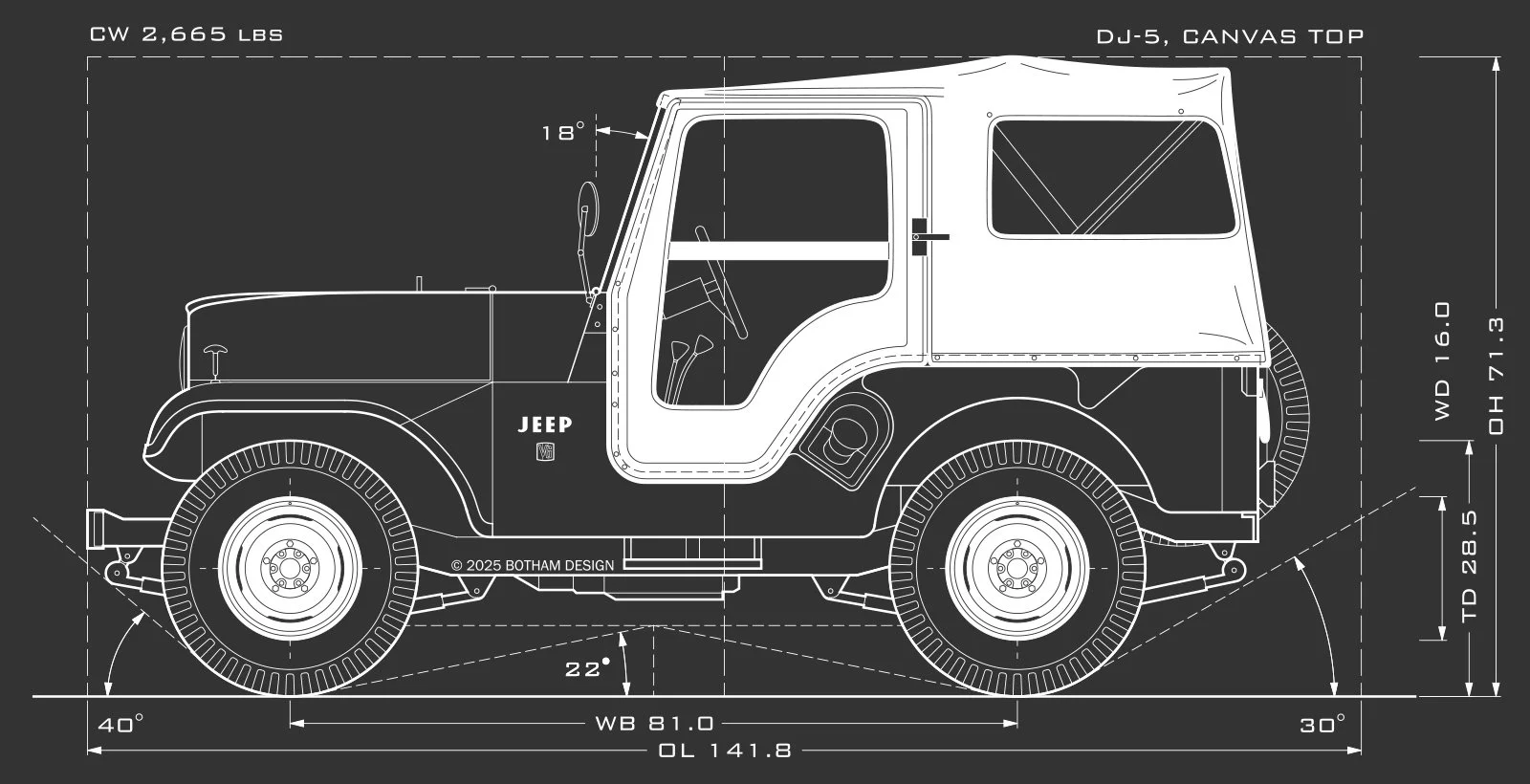

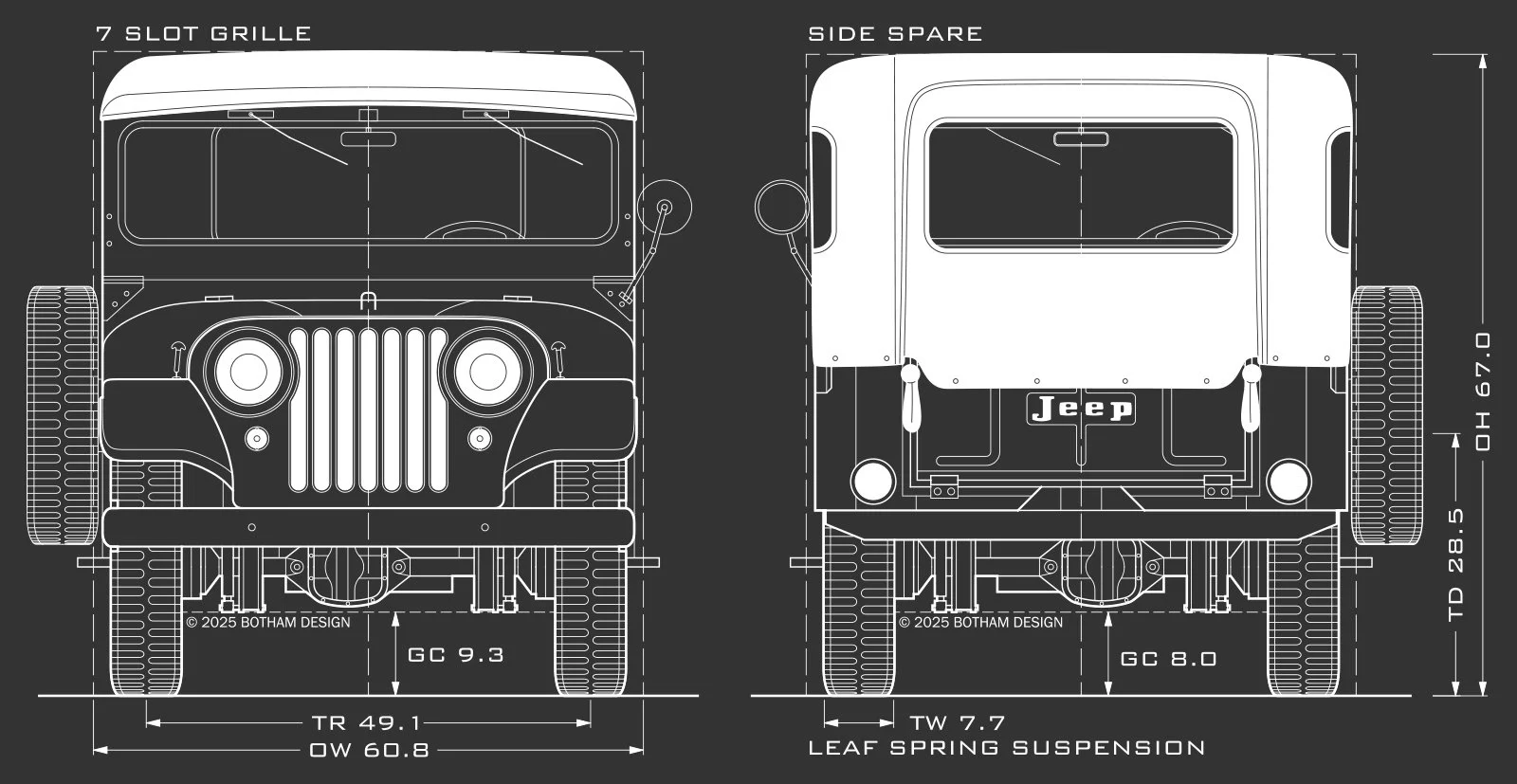

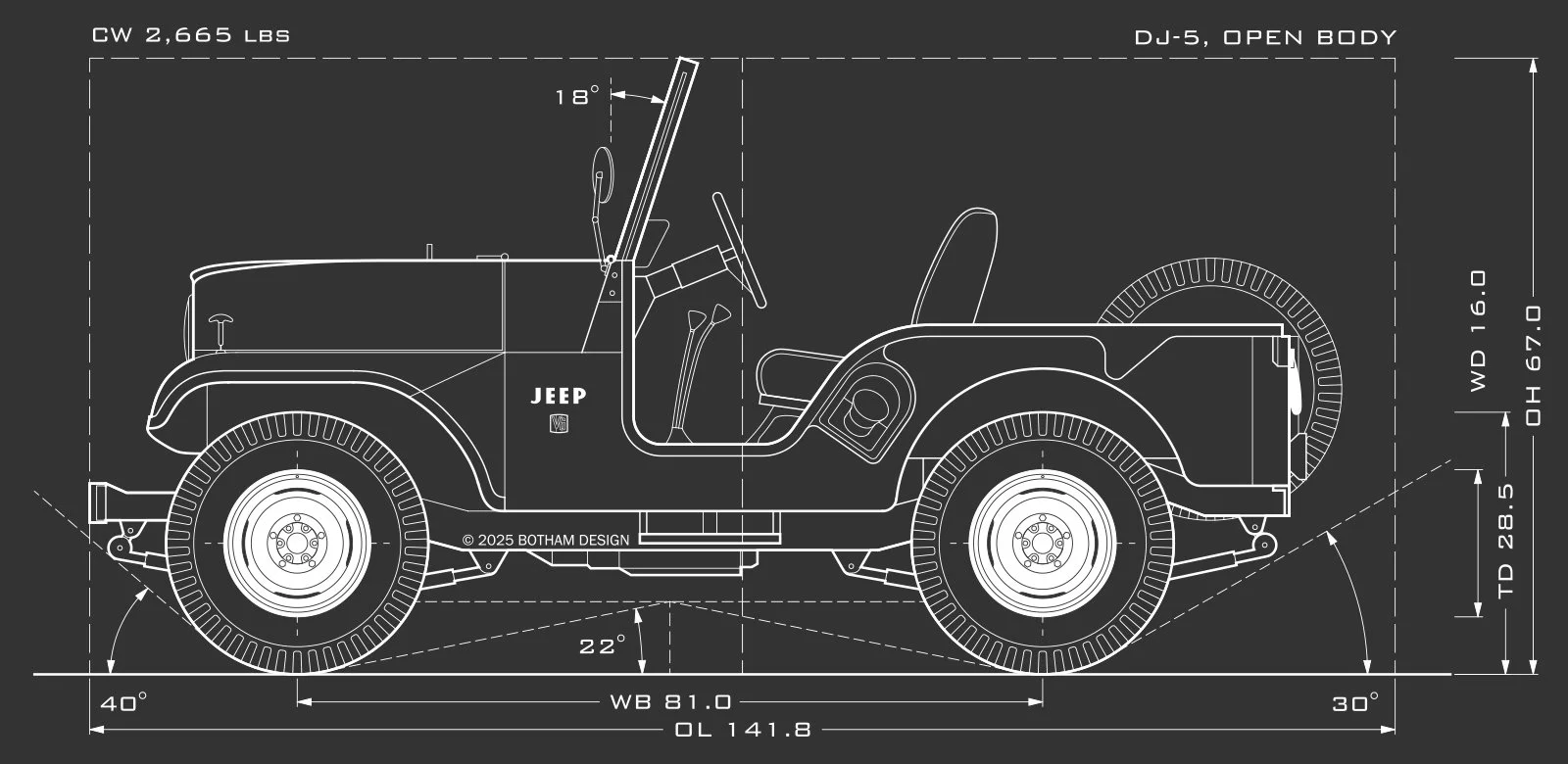

Drawn by Christopher James Botham
