JEEP SJ CHEROKEE CHIEF
1976 - 1983
PRECEEDED BY: SJ Cherokee
SUCCEEDED BY: XJ Cherokee
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: Unknown

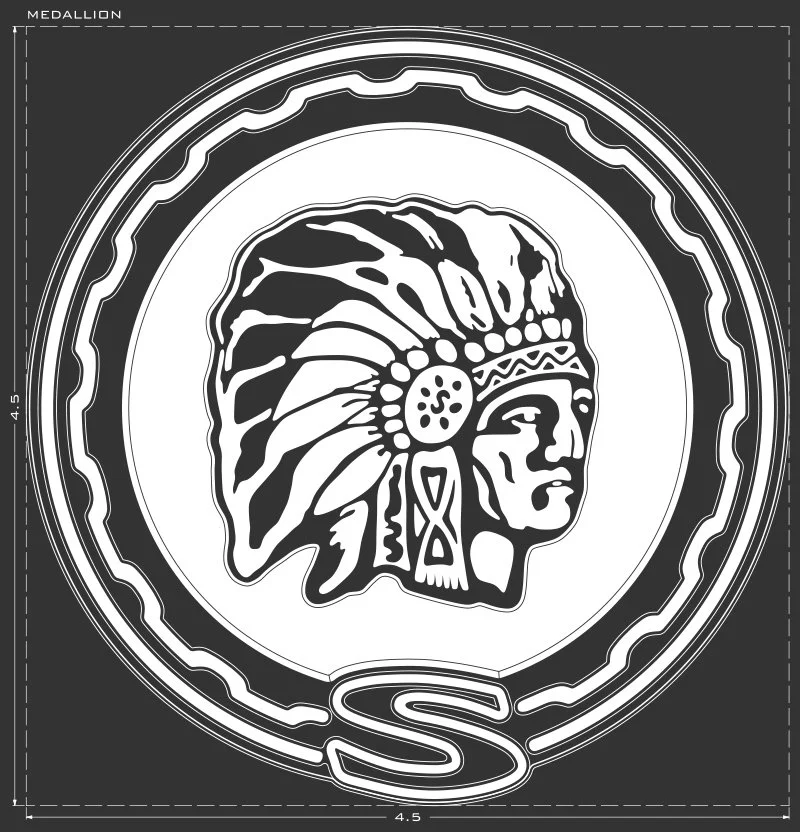

The SJ Cherokee Chief was a special trim package for the SJ Cherokee. It was only available as a 2-door and featured larger fenders, a wider track, widewheel tires, a unique graphics package and an Indian chief badge. The wider track and widewheel tires were also featured on the J-10 Honcho trucks.
JEEP SJ CHEROKEE CHIEF SPECS
MAIN SPECS
OVERALL LENGTH (OL): 189.0
OVERALL WIDTH (OW): 79.0
OVERALL HEIGHT (OH): 70.3
WHEELBASE (WB): 110.0
TRACK WIDTH (TR): 62.5
CURB WEIGHT (CW): 4,510 lbs
CHASSIS SPECS
GROUND CLEARANCE (GC): 10.0
APPROACH ANGLE (AA): 39°
BREAKOVER ANGLE (BA): 21°
DEPARTURE ANGLE (DA): 20°
SUSPENSION TYPE (SU): Leaf Spring Suspension
WHEEL SPECS
WHEEL NAME: 8-Spoke Wheel
WHEEL DIAMETER (WD): 16.5
WHEEL WIDTH (WW): 7.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 12.3
TIRE DIAMETER (TD): 30.5
SPARE LOCATION: Spare in Trunk
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
