463 WILLYS JEEP STATION WAGON
1946 - 1950
ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: 200,000
BASE MODEL: 463 Willys Jeep Truck
The 463 Willys Jeep Station Wagon was the first utility wagon offered by Willys. The design featured a 10-slot front grille, which was reminiscent of the Willys MB. It has the same front end as the 463 Willys Jeep Truck. It was offered in two body styles: a wagon, with rear side windows, and a van, without rear side windows. The wagon had a standard tailgate, while the van had a double door.

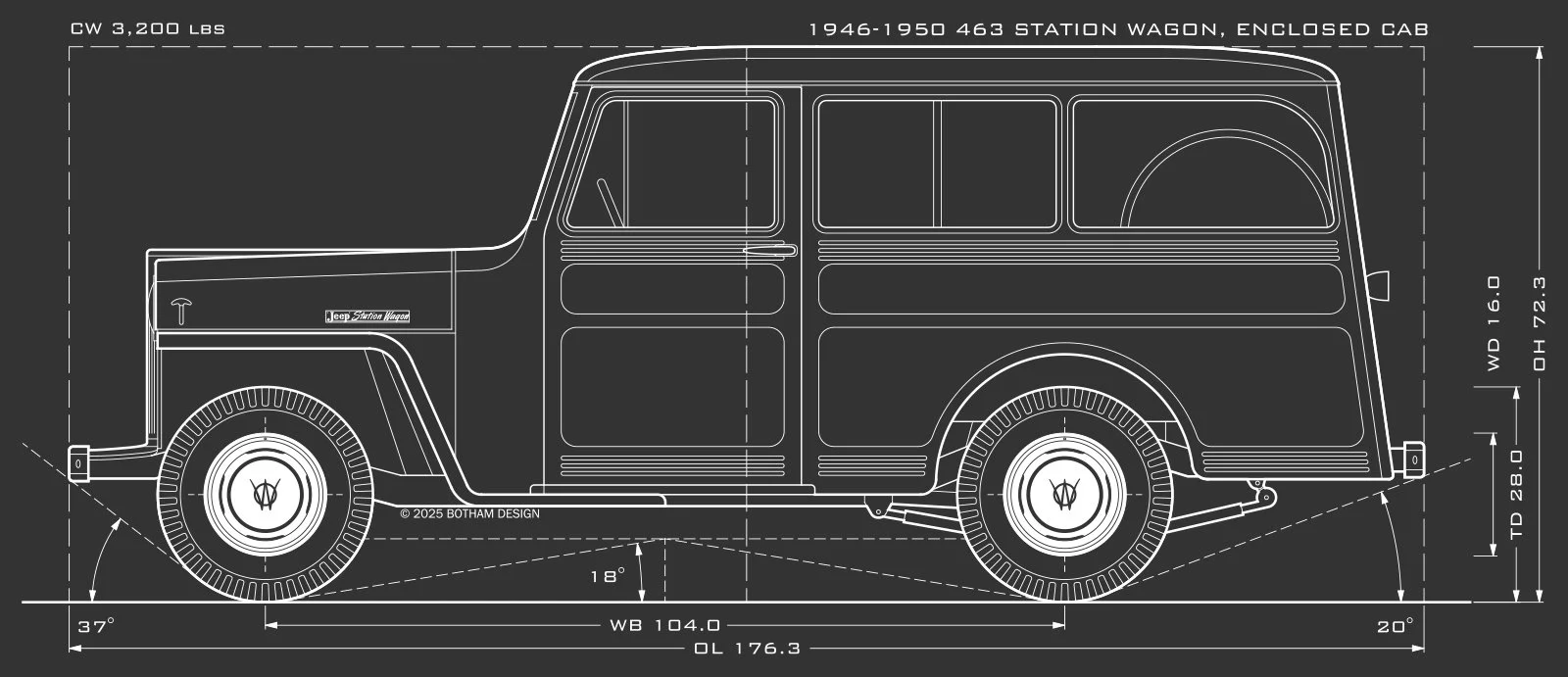

WILLYS JEEP STATION WAGON SPECS
MAIN SPECS
OVERALL LENGTH (OL): 176.3
OVERALL WIDTH (OW): 72.0
OVERALL HEIGHT (OH): 72.3
WHEELBASE (WB): 104.0
TRACK WIDTH (TR): 58.5
CURB WEIGHT (CW): 3,200 lbs
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.3
APPROACH ANGLE (AA): 37°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 20°
SUSPENSION TYPE (SU): Front Coil, Rear Leaf Spring Suspension
WHEEL SPECS
WHEEL NAME: Civilian Wheel with Willys Hub
WHEEL DIAMETER (WD): 16.0
WHEEL WIDTH (WW): 6.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 7.0
TIRE DIAMETER (TD): 28.0
SPARE LOCATION: Spare in Truck
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
