473 WILLYS JEEP STATION WAGON
473 STATION WAGON 1950 - 1959
ASSEMBLY : Toledo, OH, USA
UNITS PRODUCED : 200,000
PREDECESSOR : 463 Willys Jeep Station Wagon
SUCCESSOR : SJ Wagoneer
BASE MODEL : 473 Willys Jeep Truck
The 473 Willys Jeep Station Wagon was the first utility wagon offered by Willys. The 473 was very similar to the 463, with a re-designed front end and grille. The design featured a 10-slot front grille, which was reminiscent of the Willys MB. It has the same front end as the 473 Willys Jeep Truck. It was offered in two body styles: a wagon, with rear side windows, and a van, without rear side windows. The wagon had a standard tailgate, while the van had a double door.
GRILLE
473 Grille
(1950 - 1959)
8-slot, stamped metal grille with horizontal chrome bars
Model(s): 473 Willys Jeep Truck (1950-1953), 473 Willys Jeep Station Wagon (1950-1959)
WHEELS
Civilian Wheel
(1947 - 1984)
Model(s): M-606 (1953-1968), CJ-4M (1951), M-38A1 (1952-1971), M-170 Ambulance (1953-1963), CJ-2 Agrijeep (1942-1945), CJ-2A (1945-1949), CJ-3A (1949-1953), CJ-3B (1953-1968), CJ-4 (1951), CJ-5 (1955-1972), CJ-6 (1955-1978), CJ-10 (1981-1985), DJ-5 (1965-1984), DJ-6 (1965-1969), 463 Truck (1947-1950), 473 Truck (1950-1953), FC-150 (1956-1958), FC-170 (1957-1964), J-2000 Series Gladiator (1962-1972)
Civilian Wheel with Branded Hub
(1946 - 1959)
BADGING
Willys Overland Medallion, Hoodside
4-Wheel Drive Medallion, Hoodside

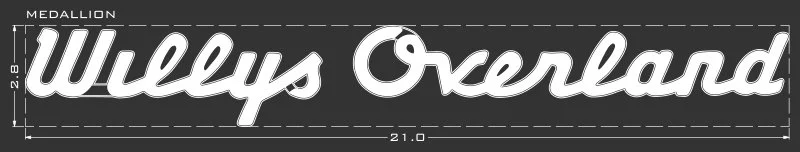

Willys Overland CO Medallion, Engine Mount
Jeep Station Wagon Medallion, Hoodside

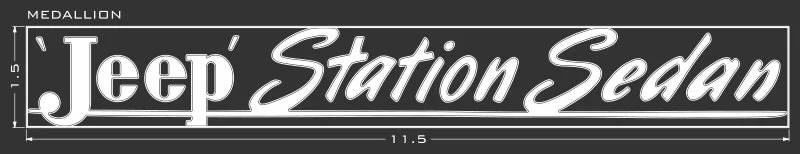

Jeep Station Sedan Medallion, Hoodside
Jeep Delivery Medallion, Hoodside
SPECS
473 WILLYS JEEP STATION WAGON SPECS
MAIN SPECS
OVERALL LENGTH (OL): 177.5
OVERALL WIDTH (OW): 72.0
OVERALL HEIGHT (OH): 72.3
WHEELBASE (WB): 104.0
TRACK WIDTH (TR): 58.5
CURB WEIGHT (CW): 3,200 lbs
SPARE LOCATION: Spare in Trunk
CHASSIS SPECS
GROUND CLEARANCE (GC): 8.3
APPROACH ANGLE (AA): 37°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 20°
SUSPENSION TYPE (SU): Front Coil, Rear Leaf Spring Suspension
All specifications refer to original stock versions
All dimensions shown in inches
Drawn by Christopher James Botham
